Dongguan MENTO Intelligent Technology Co., Ltd. info@mento-mv.com 00-86-13410031559
Product Details
Place of Origin: Dongguan,China
Brand Name: MENTO
Certification: FCC,ROHS,ISO9000,ISO14001
Model Number: M2012
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: W1000mmxD1380mmxH1600mm(without foot 100±20mm)
Delivery Time: 3Weeks
Payment Terms: T/T,
Supply Ability: 1000PCS/M
Inspection Speed: |
Up To 5000 Components Per Hour |
Operating System: |
Windows 10 |
Connectivity: |
Ethernet, USB, And RS-232 |
Platform: |
High Stability Integrated Casting Platform |
Optical System: |
Independently Developed Optical System |
Power Supply: |
AC 100-240V, 50/60Hz |
Software: |
Intuitive User Interface With Customizable Inspection Settings |
Lighting System: |
Multi-angle LED Lighting |
Inspection Speed: |
Up To 5000 Components Per Hour |
Operating System: |
Windows 10 |
Connectivity: |
Ethernet, USB, And RS-232 |
Platform: |
High Stability Integrated Casting Platform |
Optical System: |
Independently Developed Optical System |
Power Supply: |
AC 100-240V, 50/60Hz |
Software: |
Intuitive User Interface With Customizable Inspection Settings |
Lighting System: |
Multi-angle LED Lighting |

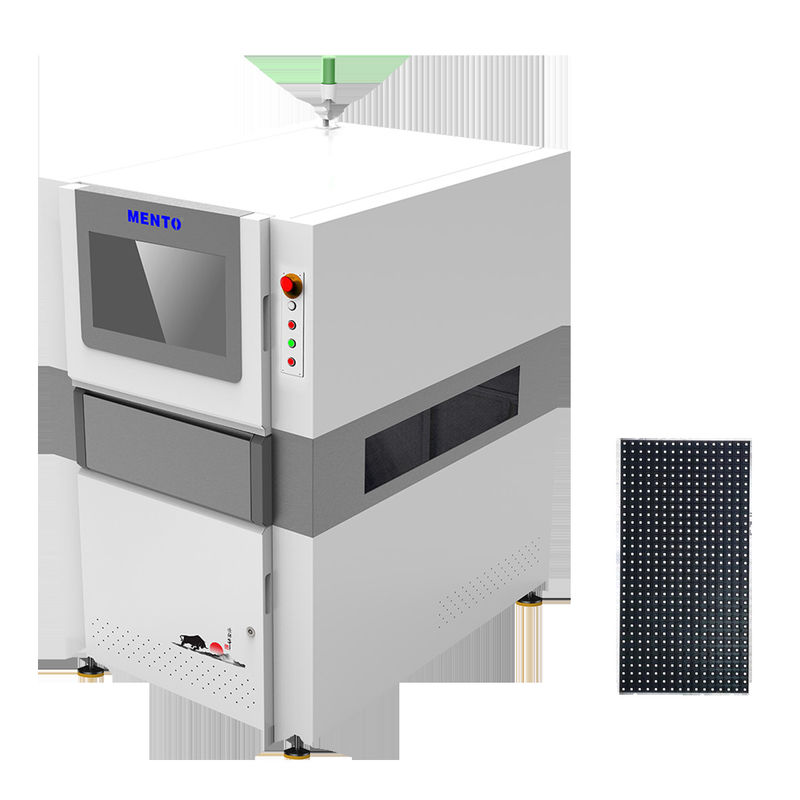

| Model | M20 Series Mini LED appearance inspection M2012 | |
| Inspection | Inspection items | Missed bonding, wrong bonding, die damaged, die offset, die tilted, die flipped, wrong polarity, particles, die lift-off, poor collinearity |
| Inspection method | Image processing, machine learning | |
| Optical System | Camera | 12MP |
| Lens | High resolution bi-telecentric lens | |
| Resolution | 4μm(2.4μm~10μm optional)RGB(Customisable) | |
| Light Source | RGB customizable | |
| Efficiency | Flying shoot:10FOV/s | |
| Computer Configuration | PC | CPU:Inteli7, RAM:DDR4-32G, GPU:GTX1660-6GB SSD:250G, HDD:2T |
| Monitor | 22 "LED | |
| Operating System | Ubuntu | |
| Inspection Performance | PCB Thickness | 1~5mm |
| Maximum allowable component height | Upper 20mm, Lower 30mm(Customizable) | |
| Driver | Servo motor+Screw guide | |
| Movement speed | Max:600mm/s | |
| PCB fixture height | 900+20mm(from floor to fixture surface) | |
| Parameters | PCB size | Max:600mmx500mm(single track, track width adjustable) |
| Power | AC220W50Hz2000W | |
| Dimensions | W1350xD1000xH1650mm(without alarm light) | |
| Weight | ≈1100KG | |
| Air Pressure Requirement | ≥0.5Mpa | |
| Environmental requirements | Temperature:5~40℃, RH 25%~80%(no frost) | |
| Upstream and downstream equipment communication | Standard SMEMA interface / data communication with die bonder | |
The system features a Standard 5 Million Global Exposure Industrial Color Camera, which delivers crisp and clear images for accurate analysis and inspection. With its high-resolution camera, the LED AOI Equipment can easily identify defects and imperfections in the Mini LED display, ensuring high-quality output and performance.
Connectivity is not an issue with the LED AOI Equipment, as it supports Ethernet, USB, and RS-232, allowing for easy integration with other systems and devices. Its flexible connectivity options make it an ideal choice for production lines and factories that require seamless integration with other equipment.
The LED AOI Equipment is known for its High Cost Performance, making it a cost-effective solution for businesses looking to improve their production quality and efficiency. It offers a high return on investment, thanks to its advanced features and capabilities.
One of the standout features of the LED AOI Equipment is its use of Large-diameter Telecentric Lenses. It is the first company in China to use this technology, which provides high-resolution images with minimal distortion. The use of telecentric lenses also enables the system to capture images with consistent magnification, regardless of the distance between the object and the lens.
In conclusion, the LED AOI Equipment is a reliable and efficient system that offers high precision and accuracy in detecting defects and flaws in Mini LED displays. With its advanced features and capabilities, it is an excellent investment for businesses looking to improve their production quality and efficiency.
Keywords: Mini LED display Module repair, Mini LED, Mini LED Display Rework
Windows 10 is the operating system for this product, and it is specifically designed for inspection of LED components and PCBs. This Mini LED Appearance Inspection Equipment is used to inspect the quality of LED components and PCBs, with high precision and accuracy. The optical system used in this product is independently developed to ensure that the inspection results are reliable.
Mento is the first company in China to use large-diameter telecentric lenses in this product. This feature ensures that the inspection process is fast and accurate. The product is suitable for various occasions and scenarios such as Mini LED Appearance Inspection Equipment, Mini LED Rework, and other applications that require high precision inspection of LED components and PCBs.
Our LED AOI Equipment product comes with a comprehensive technical support and services package to ensure you get the most out of your investment:
Our dedicated team of technical experts is committed to providing prompt and effective support to help you achieve your production goals.
