Product Details
Place of Origin: Dongguan,China
Brand Name: MENTO
Certification: FCC,ROHS,ISO9000,ISO14001
Model Number: M2012EL
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: W1000mmxD1380mmxH1600mm(without foot 100±20mm)
Delivery Time: 3Weeks
Payment Terms: T/T,
Supply Ability: 1000PCS/M
Operating System: |
Windows 10 |
Software: |
Intuitive User Interface With Customizable Inspection Settings |
Power Supply: |
AC 100-240V, 50/60Hz |
Lenses: |
The First Company In China To Use Large-diameter Telecentric Lenses |
Inspection Speed: |
Up To 5000 Components Per Hour |
Performance: |
High Cost Performance |
Industrial Camera: |
Standard 5 Million Global Exposure Industrial Color Camera |
Lighting System: |
Multi-angle LED Lighting |
Operating System: |
Windows 10 |
Software: |
Intuitive User Interface With Customizable Inspection Settings |
Power Supply: |
AC 100-240V, 50/60Hz |
Lenses: |
The First Company In China To Use Large-diameter Telecentric Lenses |
Inspection Speed: |
Up To 5000 Components Per Hour |
Performance: |
High Cost Performance |
Industrial Camera: |
Standard 5 Million Global Exposure Industrial Color Camera |
Lighting System: |
Multi-angle LED Lighting |

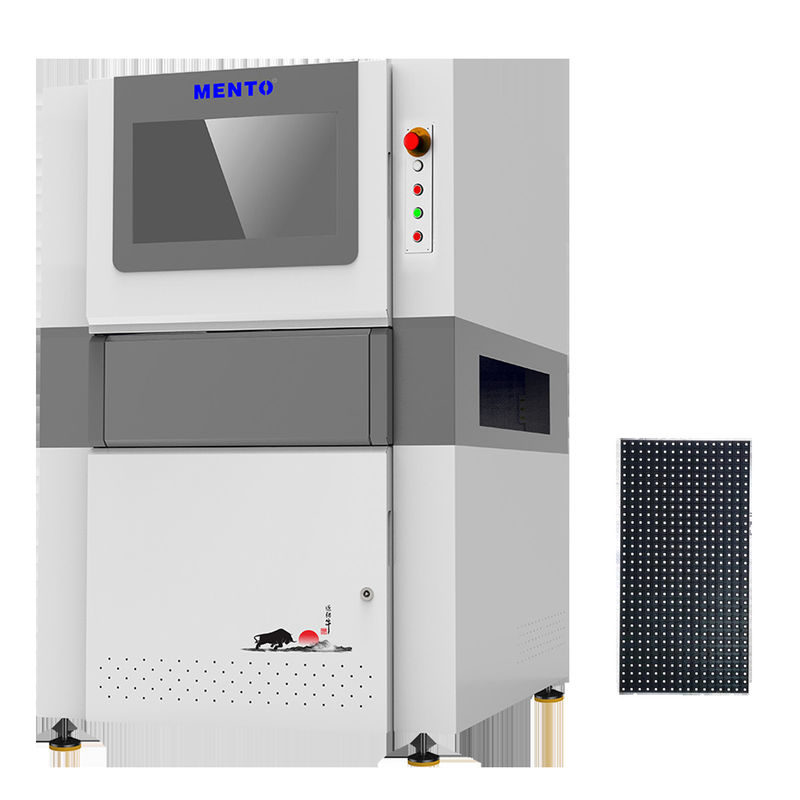

| M20EL Series Mini LED luminescence inspection | |||
| Model | M2012EL | ||
| Inspection | Inspection items | Bad die, over luminescence, under luminescence, chroma anomaly | |
| Inspection method | Image processing, machine learning | ||
| Optical | Camera | 12MP | |
| Lens | High resolution bi-telecentric lens | ||
| Resolution | 10μm | 15μm | |
| Light Source | RGB | ||
| Computer configuration | PC | CPU:Inteli7, RAM:DDR4-32G, GPU:GTX1660-6G SSD:250G, HDD:2T | |
| Monitor | 22 "LED | ||
| Operating System | Windows 10 Professional 64-bit/Ubuntu | ||
| Performance | Maximum allowable component height | Upper 20mm, Lower 30mm(Customizable) | |
| PCB thickness | 1~5mm | ||
| Driver | Servo motor + Screw guide | ||
| Movement speed | Max:600mm/s | ||
| PCB fixture height | 900+20mm (from floor to fixture surface) | ||
| Specification | PCB size | Max:600mmx500mm(single track, track width adjustable) | |
| Power | AC220V/50Hz/2000W | ||
| Dimensions | W1350xD1000xH1650mm(without alarm light) | ||
| Weight | ≈1100KG | ||
| Air Pressure Requirement | ≥0.5Mpa | ||
| Environmental requirements | Temperature:5~40℃, Relative Humidity:25%~80%(no frost) | ||
| Upstream and downstream communication | Standard SMEMA interface /communication with rework equipment | ||
What sets us apart from other manufacturers is our use of large-diameter telecentric lenses. We are the first company in China to incorporate this technology into our equipment, ensuring high-quality imaging and precise measurement of components.
Our intuitive user interface makes it easy for operators to customize inspection settings and perform thorough inspections. The software is user-friendly and provides detailed reports for analysis and record-keeping.
The multi-angle LED lighting system ensures that no defects or abnormalities go unnoticed during inspections. The equipment is designed to be easy to use and maintain, making it a valuable asset for any production line.
Our LED AOI Equipment is perfect for manufacturers who prioritize accurate and reliable inspection of their LED products. It is a valuable investment for those in the electronics industry and can help improve production efficiency and reduce waste.
Overall, our LED AOI Equipment is a top-of-the-line product that offers superior performance and cost-effectiveness. It is a must-have tool for any manufacturer looking to ensure high-quality LED products and efficient production processes.
This LED AOI Equipment is a new display inspection equipment that is designed for the inspection of Mini LED components and PCBs. It features an independently developed optical system that ensures high accuracy and reliability. The equipment can be connected via Ethernet, USB, and RS-232, and is powered by AC 100-240V, 50/60Hz. The high stability integrated casting platform provides a stable and secure base for the inspection process.
With this Mini LED appearance inspection equipment, you can easily detect any defects or abnormalities in your Mini LED components and PCBs, making it an essential tool for any manufacturer or supplier in the LED industry.
The minimum order quantity for our product is 1, and the delivery time is 3 weeks. We offer T/T as the payment terms and have a supply ability of 1000PCS/M. Our product is equipped with high-resolution cameras with advanced image processing algorithms, ensuring accurate and efficient inspection of LED components and PCBs. The independently developed optical system provides a resolution of 10 microns, making it a highly precise inspection tool.
The product offers multiple connectivity options, including Ethernet, USB, and RS-232, making it easy to integrate with your existing systems. Our LED AOI equipment finds applications in various scenarios and occasions, such as inspecting Mini LED components and Mini LED rework. The product is versatile and can be used in a wide range of industries, including automotive, electronics, and aerospace.
Q: What is the brand name of this LED AOI Equipment?
A: The brand name of this equipment is MENTO.
Q: Where is this LED AOI Equipment manufactured?
A: This equipment is manufactured in Dongguan, China.
Q: What certifications does this LED AOI Equipment have?
A: This equipment has FCC, ROHS, ISO9000, and ISO14001 certifications.
Q: What is the minimum order quantity for this LED AOI Equipment?
A: The minimum order quantity for this equipment is 1.
Q: What are the payment terms for purchasing this LED AOI Equipment?
A: The payment terms for purchasing this equipment are T/T.
Q: What is the delivery time for this LED AOI Equipment?
A: The delivery time for this equipment is 3 weeks.
Q: What is the supply ability for this LED AOI Equipment?
A: The supply ability for this equipment is 1000PCS/M.
