Product Details
Place of Origin: Dongguan,China
Brand Name: MENTO
Certification: FCC,ROHS,ISO9000,ISO14001
Model Number: M2025
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: W1000mmxD1380mmxH1600mm(without foot 100±20mm)
Delivery Time: 3Weeks
Payment Terms: T/T,
Supply Ability: 1000PCS/M
Platform: |
High Stability Integrated Casting Platform |
Performance: |
High Cost Performance |
Software: |
Intuitive User Interface With Customizable Inspection Settings |
Camera System: |
High-resolution Cameras With Advanced Image Processing Algorithms |
Type: |
Automated Optical Inspection Equipment |
Inspection Speed: |
Up To 5000 Components Per Hour |
Power Supply: |
AC 100-240V, 50/60Hz |
Application: |
Inspection Of LED Components And PCBs |
Platform: |
High Stability Integrated Casting Platform |
Performance: |
High Cost Performance |
Software: |
Intuitive User Interface With Customizable Inspection Settings |
Camera System: |
High-resolution Cameras With Advanced Image Processing Algorithms |
Type: |
Automated Optical Inspection Equipment |
Inspection Speed: |
Up To 5000 Components Per Hour |
Power Supply: |
AC 100-240V, 50/60Hz |
Application: |
Inspection Of LED Components And PCBs |

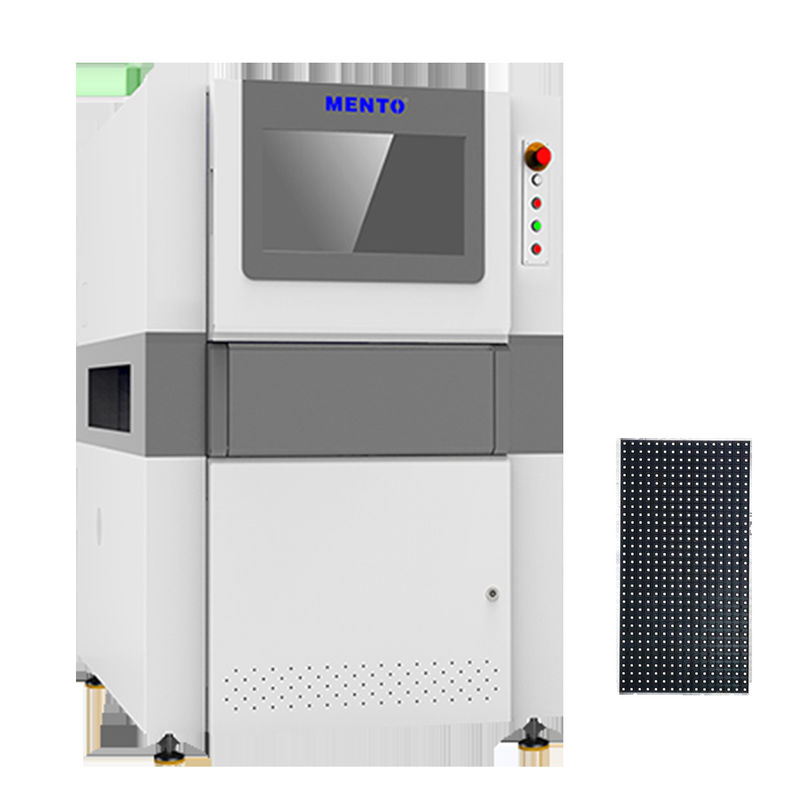

| Model | M20 Series Mini LED appearance inspection M2025 | ||||
| Inspection | Inspection items | Missed bonding, wrong bonding, die damaged, die offset, die tilted, die flipped, wrong polarity, particles, die lift-off, poor collinearity | |||
| Inspection method | Image processing, machine learning | ||||
| Optical System | Camera | 65MP | 25MP | 20MP | 12MP |
| Lens | High resolution bi-telecentric lens | ||||
| Resolution | 4μm(2.4μm~10μm optional)RGB(Customisable) | ||||
| Light Source | RGB customizable | ||||
| Efficiency | Stop then go:3FOV/s | Flying shoot:10FOV/s | |||
| Computer Configuration | PC | CPU:Inteli7, RAM:DDR4-32G, GPU:GTX1660-6GB SSD:250G, HDD:2T | |||
| Monitor | 22 "LED | ||||
| Operating System | Ubuntu | ||||
| Inspection Performance | PCB Thickness | 1~5mm | |||
| Maximum allowable component height | Upper 20mm, Lower 30mm(Customizable) | ||||
| Driver | Servo motor+Screw guide | ||||
| Movement speed | Max:600mm/s | ||||
| PCB fixture height | 900+20mm(from floor to fixture surface) | ||||
| Parameters | PCB size | Max:600mmx500mm(single track, track width adjustable) | |||
| Power | AC220W50Hz2000W | ||||
| Dimensions | W1350xD1000xH1650mm(without alarm light) | ||||
| Weight | ≈1100KG | ||||
| Air Pressure Requirement | ≥0.5Mpa | ||||
| Environmental requirements | Temperature:5~40℃, RH 25%~80%(no frost) | ||||
| Upstream and downstream equipment communication | Standard SMEMA interface / data communication with die bonder | ||||
With an inspection speed of up to 5000 components per hour, our LED AOI Equipment is perfect for industries with high volume production needs. It offers a resolution of 10 microns, ensuring that even the smallest defects are detected and fixed. Our equipment is equipped with an independently developed optical system that ensures accurate and reliable inspection results every time.
Our LED AOI Equipment is designed to provide high cost performance, making it a valuable investment for any business looking to optimize their quality control process. It is a highly efficient and effective solution that helps to reduce labor costs and minimize production downtime. This equipment is also easy to use, making it accessible to a wide range of operators, regardless of their level of experience.
Our LED AOI Equipment is perfect for Mini LED Display Rework, Mini LED Rework Equipment, and Mini LED display Module repair. It is designed to inspect and detect defects such as missing components, wrong polarity, soldering issues, and other defects that may affect the quality of the final product. With our LED AOI Equipment, you can rest assured that your products are of the highest quality and meet the industry standards.
In conclusion, our LED AOI Equipment is a high-performance solution that is perfect for industries with high volume production needs. It offers high cost performance, an independently developed optical system, and a resolution of 10 microns, making it the perfect solution for Mini LED Display Rework, Mini LED Rework Equipment, and Mini LED display Module repair. If you are looking for a reliable and efficient solution to optimize your quality control process, our LED AOI Equipment is the perfect solution for you.
As a Mini LED testing equipment manufacturer, our LED AOI Equipment offers high-quality inspection of LED components and PCBs at a speed of up to 5000 components per hour. With its high cost performance and connectivity options including Ethernet, USB, and RS-232, this equipment is the perfect choice for reliable and efficient inspection. Its high stability integrated casting platform ensures accurate and precise results every time. Additionally, our LED AOI Equipment can also serve as Mini LED rework equipment, making it a versatile and valuable addition to any manufacturing facility.
The LED AOI equipment is suitable for a variety of applications. It can be used in electronic manufacturing, automotive, aerospace, and medical device industries. This product is ideal for inspecting and testing mini LED components, such as mobile phone displays, wearable devices, and other small electronic devices. The equipment can quickly inspect up to 5000 components per hour, making it perfect for high-volume production environments.
Mento's LED AOI equipment is also suitable for mini LED rework. The equipment can quickly identify defects and allow for precision rework of mini LED components. This feature helps reduce rework time and costs while improving overall production efficiency.
In summary, Mento's LED AOI equipment is a reliable and high-quality product that is perfect for a wide range of applications. With its advanced features and certifications, this product is a top choice for anyone looking for a mini LED testing equipment manufacturer.
Our LED AOI Equipment product comes with comprehensive technical support and services to ensure that your equipment is operating at its best. Our team of experienced technicians is available to provide assistance with installation, troubleshooting, repairs, and maintenance. We also offer training programs to help your team fully utilize the capabilities of the equipment. In addition, we provide software updates to keep your equipment up-to-date with the latest features and improvements. Our goal is to ensure that your LED AOI Equipment performs at its best and meets your production needs.
