Product Details
Place of Origin: Dongguan,China
Brand Name: MENTO
Certification: FCC,ROHS,ISO9000,ISO14001
Model Number: M2012EL
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: W1000mmxD1380mmxH1600mm(without foot 100±20mm)
Delivery Time: 3Weeks
Payment Terms: T/T,
Supply Ability: 1000PCS/M
Operating System: |
Windows 10 |
Type: |
Automated Optical Inspection Equipment |
Lenses: |
The First Company In China To Use Large-diameter Telecentric Lenses |
Camera System: |
High-resolution Cameras With Advanced Image Processing Algorithms |
Software: |
Intuitive User Interface With Customizable Inspection Settings |
Performance: |
High Cost Performance |
Platform: |
High Stability Integrated Casting Platform |
Industrial Camera: |
Standard 5 Million Global Exposure Industrial Color Camera |
Operating System: |
Windows 10 |
Type: |
Automated Optical Inspection Equipment |
Lenses: |
The First Company In China To Use Large-diameter Telecentric Lenses |
Camera System: |
High-resolution Cameras With Advanced Image Processing Algorithms |
Software: |
Intuitive User Interface With Customizable Inspection Settings |
Performance: |
High Cost Performance |
Platform: |
High Stability Integrated Casting Platform |
Industrial Camera: |
Standard 5 Million Global Exposure Industrial Color Camera |

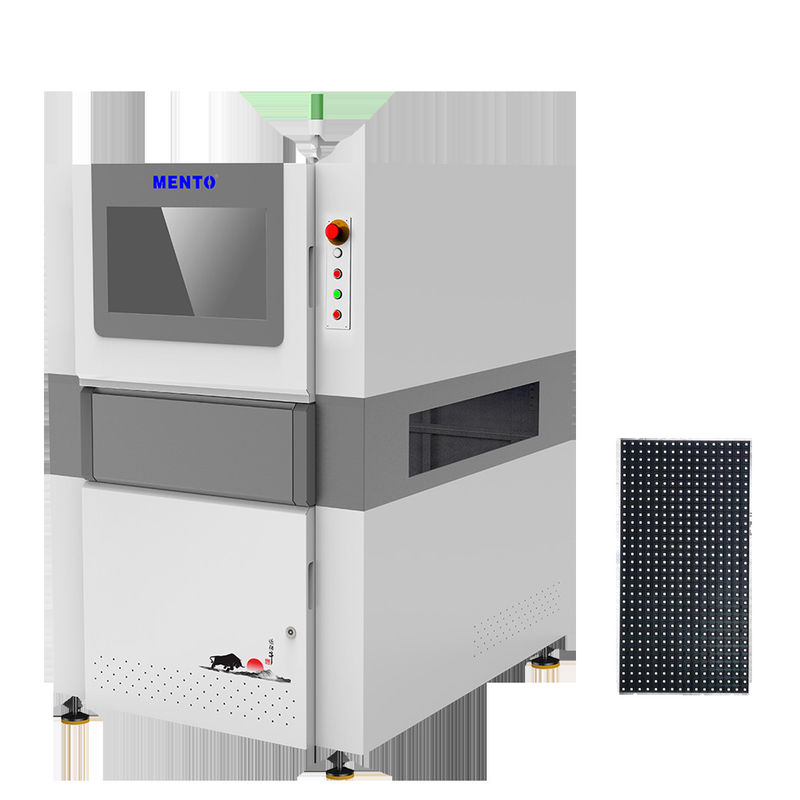

| M20EL Series Mini LED luminescence inspection | |||
| Model | M2012EL | ||
| Inspection | Inspection items | Bad die, over luminescence, under luminescence, chroma anomaly | |
| Inspection method | Image processing, machine learning | ||
| Optical | Camera | 12MP | |
| Lens | High resolution bi-telecentric lens | ||
| Resolution | 10μm | 15μm | |
| Light Source | RGB | ||
| Computer configuration | PC | CPU:Inteli7, RAM:DDR4-32G, GPU:GTX1660-6G SSD:250G, HDD:2T | |
| Monitor | 22 "LED | ||
| Operating System | Windows 10 Professional 64-bit/Ubuntu | ||
| Performance | Maximum allowable component height | Upper 20mm, Lower 30mm(Customizable) | |
| PCB thickness | 1~5mm | ||
| Driver | Servo motor + Screw guide | ||
| Movement speed | Max:600mm/s | ||
| PCB fixture height | 900+20mm (from floor to fixture surface) | ||
| Specification | PCB size | Max:600mmx500mm(single track, track width adjustable) | |
| Power | AC220V/50Hz/2000W | ||
| Dimensions | W1350xD1000xH1650mm(without alarm light) | ||
| Weight | ≈1100KG | ||
| Air Pressure Requirement | ≥0.5Mpa | ||
| Environmental requirements | Temperature:5~40℃, Relative Humidity:25%~80%(no frost) | ||
| Upstream and downstream communication | Standard SMEMA interface /communication with rework equipment | ||
The LED AOI Equipment is designed with the latest Windows 10 operating system, making it highly efficient and user-friendly. The product comes with an intuitive user interface that has customizable inspection settings. This allows users to adjust the inspection parameters according to their specific needs, ensuring that the device operates at its best.
Connectivity is another key feature of this product. It comes equipped with Ethernet, USB, and RS-232 connectivity options, making it easy to integrate with other devices and systems. This ensures that the device can be easily connected to different networks, allowing users to transfer data and images with ease.
With FCC, ROHS, ISO9000, and ISO14001 certifications, the LED AOI Equipment provides a reliable and accurate inspection process. It is ideal for various product application occasions such as Mini LED display module repair, LED lighting products, and automotive LED lighting.
The LED AOI Equipment is suitable for various scenarios such as product development, quality control, and production management. It is perfect for businesses that require high-precision inspection of LED components and PCBs. The equipment has a minimum order quantity of 1 and delivery time of 3 weeks. Payment terms are T/T, and the supply ability is 1000pcs/m.
Frequently Asked Questions
Q: What is the brand name of the LED AOI Equipment?
A: The brand name of the LED AOI Equipment is MENTO.
Q: Where is the LED AOI Equipment manufactured?
A: The LED AOI Equipment is manufactured in Dongguan, China.
Q: What certifications does the LED AOI Equipment have?
A: The LED AOI Equipment is certified by FCC, ROHS, ISO9000, and ISO14001.
Q: What is the minimum order quantity for the LED AOI Equipment?
A: The minimum order quantity for the LED AOI Equipment is 1.
Q: What is the delivery time for the LED AOI Equipment?
A: The delivery time for the LED AOI Equipment is 3 weeks.
Q: What are the payment terms for the LED AOI Equipment?
A: The payment terms for the LED AOI Equipment are T/T.
Q: What is the supply ability of the LED AOI Equipment?
A: The supply ability of the LED AOI Equipment is 1000PCS/M.
