Product Details
Place of Origin: Dongguan,China
Brand Name: MENTO
Certification: FCC,ROHS,ISO9000,ISO14001
Model Number: M2020
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: W1000mmxD1380mmxH1600mm(without foot 100±20mm)
Delivery Time: 3Weeks
Payment Terms: T/T,
Supply Ability: 1000PCS/M
Operating System: |
Windows 10 |
Type: |
Automated Optical Inspection Equipment |
Inspection Speed: |
Up To 5000 Components Per Hour |
Optical System: |
Independently Developed Optical System |
Connectivity: |
Ethernet, USB, And RS-232 |
Application: |
Inspection Of LED Components And PCBs |
Industrial Camera: |
Standard 5 Million Global Exposure Industrial Color Camera |
Software: |
Intuitive User Interface With Customizable Inspection Settings |
Operating System: |
Windows 10 |
Type: |
Automated Optical Inspection Equipment |
Inspection Speed: |
Up To 5000 Components Per Hour |
Optical System: |
Independently Developed Optical System |
Connectivity: |
Ethernet, USB, And RS-232 |
Application: |
Inspection Of LED Components And PCBs |
Industrial Camera: |
Standard 5 Million Global Exposure Industrial Color Camera |
Software: |
Intuitive User Interface With Customizable Inspection Settings |

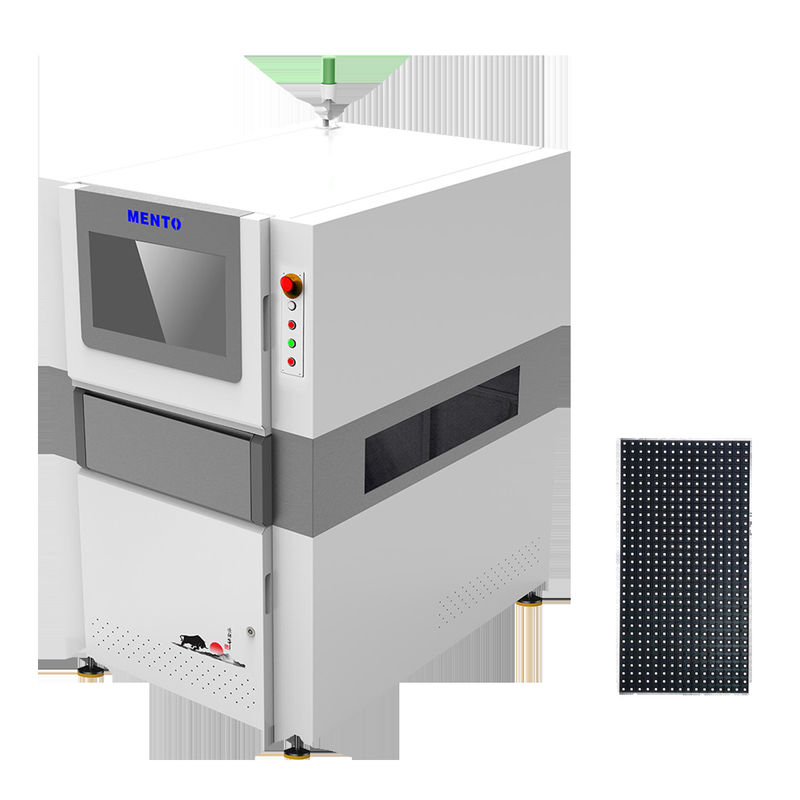

| Model | M20 Series Mini LED appearance inspection M2020 | |
| Inspection | Inspection items | Missed bonding, wrong bonding, die damaged, die offset, die tilted, die flipped, wrong polarity, particles, die lift-off, poor collinearity |
| Inspection method | Image processing, machine learning | |
| Optical System | Camera | 20MP |
| Lens | High resolution bi-telecentric lens | |
| Resolution | 4μm(2.4μm~10μm optional)RGB(Customisable) | |
| Light Source | RGB customizable | |
| Efficiency | Stop then go:3FOV/s | |
| Computer Configuration | PC | CPU:Inteli7, RAM:DDR4-32G, GPU:GTX1660-6GB SSD:250G, HDD:2T |
| Monitor | 22 "LED | |
| Operating System | Ubuntu | |
| Inspection Performance | PCB Thickness | 1~5mm |
| Maximum allowable component height | Upper 20mm, Lower 30mm(Customizable) | |
| Driver | Servo motor+Screw guide | |
| Movement speed | Max:600mm/s | |
| PCB fixture height | 900+20mm(from floor to fixture surface) | |
| Parameters | PCB size | Max:600mmx500mm(single track, track width adjustable) |
| Power | AC220W50Hz2000W | |
| Dimensions | W1350xD1000xH1650mm(without alarm light) | |
| Weight | ≈1100KG | |
| Air Pressure Requirement | ≥0.5Mpa | |
| Environmental requirements | Temperature:5~40℃, RH 25%~80%(no frost) | |
| Upstream and downstream equipment communication | Standard SMEMA interface / data communication with die bonder | |
The equipment is equipped with a standard 5 Million Global Exposure Industrial Color Camera that captures clear and detailed images, making it easier to detect any defects in Mini LED and New Display products. This feature ensures that products are of high quality and meet industry standards.
The LED AOI Equipment has a range of connectivity options that include Ethernet, USB, and RS-232, making it easy to connect with other devices and systems in the production line. This feature improves communication and data transfer, reducing the time needed to complete inspection tasks.
The platform of the LED AOI Equipment is made of a High Stability Integrated Casting Platform, which provides a stable foundation for the inspection process. This feature improves the accuracy of inspection results and reduces errors that may occur during the production process.
The LED AOI Equipment is designed to provide high-quality inspection for Mini LED and New Display products. It is a reliable and efficient product that helps to improve the quality of production, reduce errors, and increase productivity. This product is suitable for use in various industries, including electronics, manufacturing, and automotive.
Our LED AOI Equipment is the perfect solution for Mini LED Inspection Equipment, Mini LED display Module repair, and Mini LED testing equipment manufacturer needs.
Our product is designed with a multi-angle LED lighting system, which provides optimal illumination for inspection. Additionally, our independently developed optical system ensures clear and crisp imaging, making it easier for you to identify defects and issues in your products.
Whether you're in the market for new display inspection equipment, or you need a mini LED rework station, our LED AOI equipment is the perfect solution. It's cost-effective and reliable, making it a great investment for your business.
Our LED AOI equipment is FCC, ROHS, ISO9000, and ISO14001 certified, so you can rest assured that you're purchasing a high-quality and safe product. Plus, with a minimum order quantity of just one, and a delivery time of three weeks, you can get your hands on our LED AOI equipment in no time.
At MENTO, we pride ourselves on our supply ability of up to 1000PCS/M, ensuring that we can meet the demands of businesses of all sizes. And with flexible payment terms like T/T, we make it easy for you to get the equipment you need without breaking the bank.
The LED AOI Equipment product comes with comprehensive technical support and services to ensure efficient and reliable operation. Our team of experienced technicians and engineers provide the following services:
We are committed to providing our customers with the highest level of support and services to ensure maximum uptime, productivity, and quality. Contact us for more information on our LED AOI Equipment technical support and services.
