Product Details
Place of Origin: Dongguan,China
Brand Name: MENTO
Certification: FCC,ROHS,ISO9000,ISO14001
Model Number: RD30L
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: W1000mmxD1380mmxH1600mm(without foot 100±20mm)
Delivery Time: 3Weeks
Payment Terms: T/T,
Supply Ability: 1000PCS/M
Resolution: |
10 Microns |
Power Supply: |
AC 100-240V, 50/60Hz |
Camera System: |
High-resolution Cameras With Advanced Image Processing Algorithms |
Type: |
Automated Optical Inspection Equipment |
Platform: |
High Stability Integrated Casting Platform |
Lighting System: |
Multi-angle LED Lighting |
Industrial Camera: |
Standard 5 Million Global Exposure Industrial Color Camera |
Inspection Speed: |
Up To 5000 Components Per Hour |
Resolution: |
10 Microns |
Power Supply: |
AC 100-240V, 50/60Hz |
Camera System: |
High-resolution Cameras With Advanced Image Processing Algorithms |
Type: |
Automated Optical Inspection Equipment |
Platform: |
High Stability Integrated Casting Platform |
Lighting System: |
Multi-angle LED Lighting |
Industrial Camera: |
Standard 5 Million Global Exposure Industrial Color Camera |
Inspection Speed: |
Up To 5000 Components Per Hour |
| Model | RD30 Fully Automatic Rework RD30L | |
| Basic Function | Function | Defective die removing, residues cleaning, solder paste/adhesive printing, die bonding, solder curing, luminescence inspection |
| Wafer size | 3x5mil-20x20mil | |
| Substrate compatibility | FR-4, BT substrate, glass substrate, FPC, etc. | |
| Maximum board size | 380mmx280mm | |
| Removing | Removing,method | Laser |
| Residue cleaning | Direct removal + heating suction | |
| Height measurement | Laser measurement 0.001mm | |
| Printing | Motion | XYZ (linear way) |
| Adhesive compatibility | Solder Paste, Flux | |
| Chip correction | Correction method | Rotation |
| Correction angle accuracy | ±2° | |
| Mounting | Mounting head | Surface suction |
| Mounting strength | 25g-210g | |
| Mounting accuracy | ±10μm | |
| Curing | Curing method | Laser, heat curing |
| Inspection | Inspection items | R, G, B luminescence inspection |
| Chip table | Accuracy | ±0.3 mil |
| Re-measurement accuracy | ±0.2 mil | |
| Die attach film size | 6" | |
| Number of die attach films | 4PCS | |
| Ejector stroke | 2mm(max) | |
| Specification | UPH | ≤30s/pc |
| Power | 220V±10V,50Hz,5KW | |
| Dimensions | W1300xD1600xH1650mm | |
| Weight | 1500KG | |

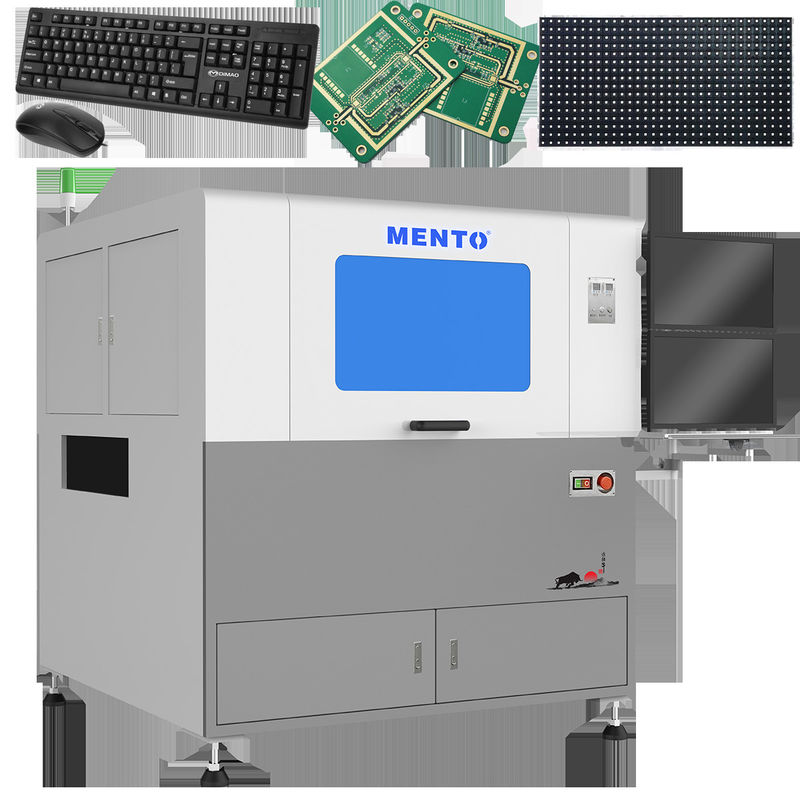

Our LED AOI Equipment is equipped with a standard 5 million global exposure industrial color camera, which guarantees high-quality images for inspection. This camera is designed to capture accurate images of PCBs, ensuring that no defect is missed during the inspection process. Additionally, we are the first company in China to use large-diameter telecentric lenses, which provide better resolution and accuracy than traditional lenses.
The LED AOI Equipment comes with multiple connectivity options, including Ethernet, USB, and RS-232. This allows for easy integration with your existing equipment and systems. The Ethernet connectivity option enables remote access, which makes it possible to operate the equipment from a remote location. The USB and RS-232 options enable you to connect the equipment to your computer or other devices for data transfer and analysis.
Our LED AOI Equipment is designed to provide high cost performance, making it an ideal solution for companies looking to optimize their production processes without breaking the bank. With our equipment, you can reduce inspection time and increase production output, which translates to increased profitability.
In conclusion, if you're looking for a high-quality Automated Optical Inspection Equipment that provides excellent performance, our LED AOI Equipment is the perfect choice. As a reputable mini LED testing equipment manufacturer, we understand the needs of the new display inspection equipment industry, and our product is designed to meet and exceed those needs. Invest in our LED AOI Equipment today and take your production processes to the next level.
New Display Inspection Equipment, Mini LED Display Rework, New Display Inspection Equipment
Our LED AOI Equipment is equipped with large-diameter telecentric lenses, making us the first company in China to incorporate this feature. This ensures accurate and efficient inspection of Mini LED products, making it ideal for various applications such as Mini LED chip testing, Mini LED backlight inspection, and Mini LED module inspection.
Our LED AOI Equipment comes with a Windows 10 operating system, making it easy to use and compatible with most computers. It also features a standard 5 million global exposure industrial color camera, which ensures high-resolution images with advanced image processing algorithms. The multi-angle LED lighting system further enhances the camera's capabilities, ensuring accurate and detailed inspection of Mini LED products.
Our LED AOI Equipment has a minimum order quantity of 1 and a delivery time of 3 weeks. We accept T/T as a payment term and have a supply ability of 1000PCS/M. With our product's high-end features and certifications, it is suitable for various industries, including electronics, automotive, and healthcare.
In conclusion, Mento's LED AOI Equipment is an ideal solution for Mini LED Rework, Mini LED Inspection, and Mini LED Testing. Our product's large-diameter telecentric lenses, high-resolution cameras, and advanced image processing algorithms make it a reliable and efficient tool for ensuring the quality of Mini LED products. Contact us today to place your order or to learn more about our product.
Q: What is the brand name of the LED AOI Equipment?
A: The brand name of the LED AOI Equipment is MENTO.
Q: Where is the LED AOI Equipment manufactured?
A: The LED AOI Equipment is manufactured in Dongguan, China.
Q: What certifications does the LED AOI Equipment have?
A: The LED AOI Equipment is certified by FCC, ROHS, ISO9000, and ISO14001.
Q: What is the minimum order quantity for the LED AOI Equipment?
A: The minimum order quantity for the LED AOI Equipment is 1.
Q: What is the delivery time for the LED AOI Equipment?
A: The delivery time for the LED AOI Equipment is 3 weeks.
Q: What are the payment terms for the LED AOI Equipment?
A: The payment terms for the LED AOI Equipment are T/T.
Q: What is the supply ability of the LED AOI Equipment?
A: The supply ability of the LED AOI Equipment is 1000PCS/M.
