Product Details
Place of Origin: Dongguan,China
Brand Name: MENTO
Certification: FCC,ROHS,ISO9000,ISO14001
Model Number: M2025
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: W1000mmxD1380mmxH1600mm(without foot 100±20mm)
Delivery Time: 3Weeks
Payment Terms: T/T,
Supply Ability: 1000PCS/M
Lenses: |
The First Company In China To Use Large-diameter Telecentric Lenses |
Optical System: |
Independently Developed Optical System |
Industrial Camera: |
Standard 5 Million Global Exposure Industrial Color Camera |
Application: |
Inspection Of LED Components And PCBs |
Inspection Speed: |
Up To 5000 Components Per Hour |
Power Supply: |
AC 100-240V, 50/60Hz |
Type: |
Automated Optical Inspection Equipment |
Connectivity: |
Ethernet, USB, And RS-232 |
Lenses: |
The First Company In China To Use Large-diameter Telecentric Lenses |
Optical System: |
Independently Developed Optical System |
Industrial Camera: |
Standard 5 Million Global Exposure Industrial Color Camera |
Application: |
Inspection Of LED Components And PCBs |
Inspection Speed: |
Up To 5000 Components Per Hour |
Power Supply: |
AC 100-240V, 50/60Hz |
Type: |
Automated Optical Inspection Equipment |
Connectivity: |
Ethernet, USB, And RS-232 |
| Model | M20 Series Mini LED appearance inspection M2025 | ||||
| Inspection | Inspection items | Missed bonding, wrong bonding, die damaged, die offset, die tilted, die flipped, wrong polarity, particles, die lift-off, poor collinearity | |||
| Inspection method | Image processing, machine learning | ||||
| Optical System | Camera | 65MP | 25MP | 20MP | 12MP |
| Lens | High resolution bi-telecentric lens | ||||
| Resolution | 4μm(2.4μm~10μm optional)RGB(Customisable) | ||||
| Light Source | RGB customizable | ||||
| Efficiency | Stop then go:3FOV/s | Flying shoot:10FOV/s | |||
| Computer Configuration | PC | CPU:Inteli7, RAM:DDR4-32G, GPU:GTX1660-6GB SSD:250G, HDD:2T | |||
| Monitor | 22 "LED | ||||
| Operating System | Ubuntu | ||||
| Inspection Performance | PCB Thickness | 1~5mm | |||
| Maximum allowable component height | Upper 20mm, Lower 30mm(Customizable) | ||||
| Driver | Servo motor+Screw guide | ||||
| Movement speed | Max:600mm/s | ||||
| PCB fixture height | 900+20mm(from floor to fixture surface) | ||||
| Parameters | PCB size | Max:600mmx500mm(single track, track width adjustable) | |||
| Power | AC220W50Hz2000W | ||||
| Dimensions | W1350xD1000xH1650mm(without alarm light) | ||||
| Weight | ≈1100KG | ||||
| Air Pressure Requirement | ≥0.5Mpa | ||||
| Environmental requirements | Temperature:5~40℃, RH 25%~80%(no frost) | ||||
| Upstream and downstream equipment communication | Standard SMEMA interface / data communication with die bonder | ||||
Our Automated Optical Inspection Equipment is equipped with an intuitive user interface, making it easy for operators to use. The customizable inspection settings allow for flexibility in the inspection process, ensuring that the equipment can be tailored to meet the specific needs of each manufacturer. This feature also makes it easy to train new operators, reducing the time and cost associated with training.
The equipment is designed to work with Windows 10, providing a stable and reliable operating system that is compatible with most manufacturing environments. This ensures that the equipment can be integrated seamlessly into existing manufacturing processes, minimizing downtime and improving productivity.
The Mini LED Rework Equipment is a specialized product, and requires a high level of accuracy and precision in the inspection process. Our Automated Optical Inspection Equipment is designed to meet these requirements, delivering consistent and reliable results with minimal operator input. This makes it an ideal solution for manufacturers looking to improve their quality control processes and reduce the risk of defects.
Overall, our Automated Optical Inspection Equipment is a high-performance solution that delivers reliable and accurate results. With its independently developed optical system, customizable inspection settings, and user-friendly interface, it is an ideal solution for manufacturers looking to improve their quality control processes and reduce the risk of defects in their Mini LED Rework Equipment.
This Mini LED Rework Equipment is the perfect solution for your inspection needs, with its New Display Inspection Equipment and Mini LED Rework capabilities.

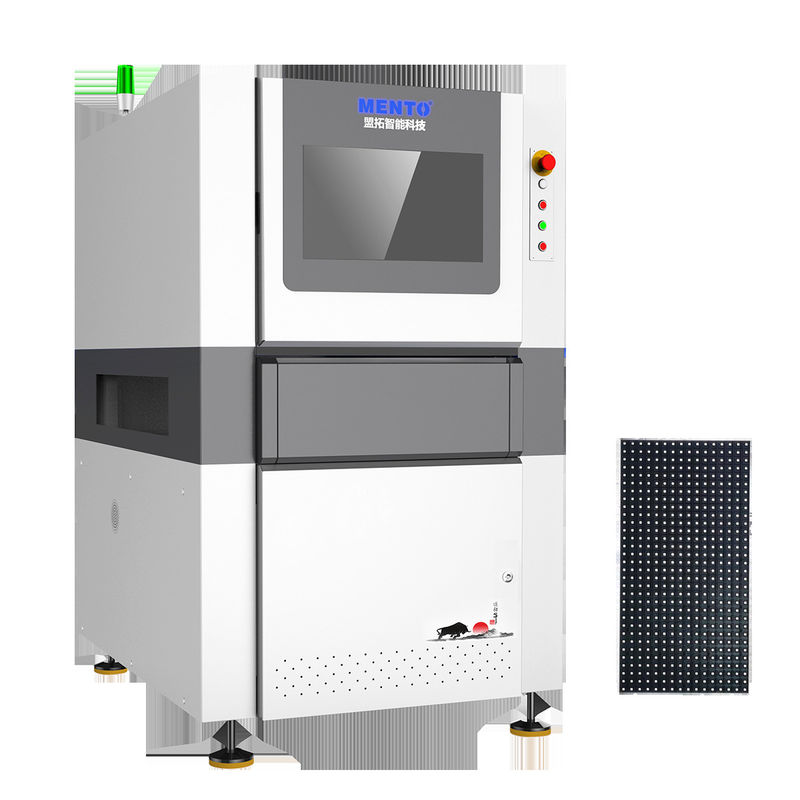

The MENTO LED AOI Equipment is designed for the inspection of LED components and PCBs. The independently developed optical system provides high resolution of up to 10 microns, which is essential for the inspection of small components such as mini LED. The equipment has Ethernet, USB, and RS-232 connectivity, making it easy to use and connect with other devices. The power supply for the equipment is AC 100-240V, 50/60Hz, which is suitable for most countries.
The MENTO LED AOI Equipment is suitable for various application occasions and scenarios. It is perfect for small businesses that need to inspect LED components and PCBs before assembly. The high resolution of the equipment makes it ideal for inspecting mini LED, which is commonly used in small display screens. The MENTO LED AOI Equipment can also be used for quality control in manufacturing plants, ensuring that all products meet the required standards.
Another application of the MENTO LED AOI Equipment is in mini LED display rework. The high-resolution optical system allows for accurate inspection of the display, making it possible to identify faulty components that need to be replaced. This saves time and resources that would have been used in replacing the whole display.
Our LED AOI Equipment product comes with comprehensive technical support and services:
