Product Details
Place of Origin: China dongguan
Brand Name: Mento
Certification: ISO9001/ISO14001
Model Number: K2005DW
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: W1000mmxD1380mmxH1600mm(without foot 100±20mm)
Delivery Time: 3week
Payment Terms: on line
Supply Ability: 1000/month
Software: |
Intuitive User Interface |
Inspection Modes: |
2D And 3D |
Application: |
PCB Inspection |
Power Supply: |
AC 100-240V, 50/60Hz |
Lighting System: |
LED |
Dimensions: |
1200mm X 1000mm X 1500mm |
Connectivity: |
Ethernet, USB |
Camera Type: |
High-resolution CCD |
Software: |
Intuitive User Interface |
Inspection Modes: |
2D And 3D |
Application: |
PCB Inspection |
Power Supply: |
AC 100-240V, 50/60Hz |
Lighting System: |
LED |
Dimensions: |
1200mm X 1000mm X 1500mm |
Connectivity: |
Ethernet, USB |
Camera Type: |
High-resolution CCD |

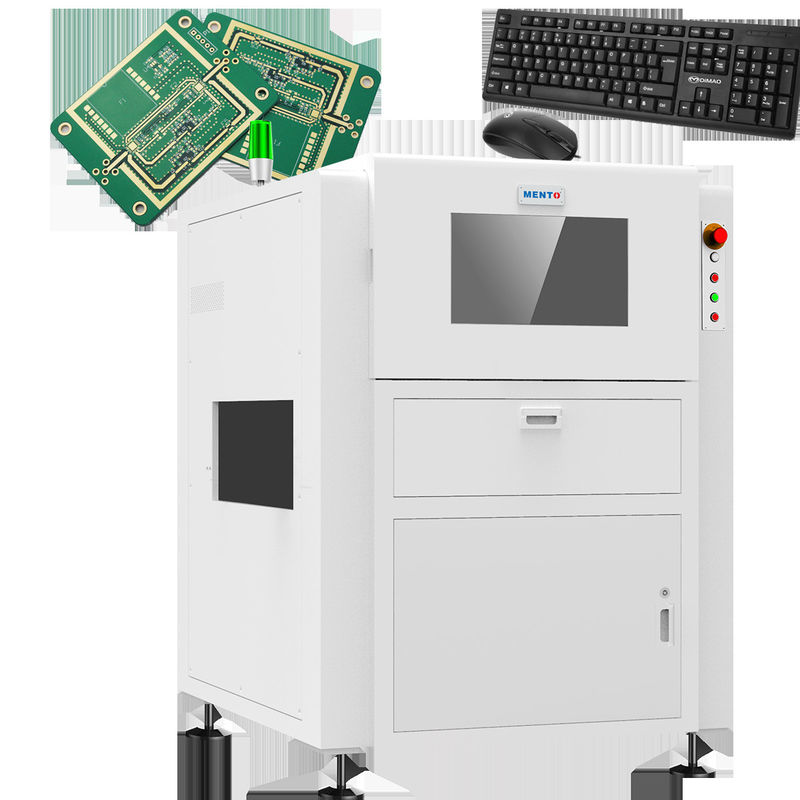

The lighting system of the AOI machine is powered by LED, which provides bright and uniform illumination, ensuring that even the tiniest of defects are detected. The inspection area of the machine is up to 610mm x 460mm, making it ideal for inspecting a wide range of PCBs.
The AOI Tester is equipped with Ethernet and USB connectivity, making it easy to transfer inspection data to other devices. It is also user-friendly and easy to operate, with a simple interface that can be easily navigated by anyone.
The AOI Tester is an essential piece of equipment for any PCB inspection process. Its advanced technology and efficient defect detection capabilities make it a valuable asset to any manufacturing facility.
In summary, the AOI Tester is a high-quality product that is designed to provide accurate and reliable aoi inspection results. Its LED lighting system, large inspection area, and Ethernet and USB connectivity make it an invaluable tool for any PCB inspection process. Whether you're a small business or a large corporation, the AOI Tester is the perfect solution for all your PCB inspection needs.
| Device model | K2005DW | |
| Detection capacity | Detection items | CHIP component body, CHIP component solder joints, characters, DIP solder joints |
| Smallest component | CHIP:0201 Pitch:0.3mm | |
| Detection method | Algorithm parameter debugging, machine learning | |
| Optical system | Camera | 5MP high speed color industrial camera |
| Telecentric lens | 0.22X/0.17X | |
| Resolution | 15um/20um/25um | |
| FOV | 36x30mm/48x40mm/61x51mm | |
| Detection speed | 3FOV/s | |
| Software system | Operating system | Windows 10 |
| Mechanical property | PCB Thickness | 0.3~10mm(warpage≤5mm) |
| Component Height | 180mm upper, 30mm lower (special height can be customized) | |
| Driving equipment | Servo motor + ball screw + linear slide | |
| Moving speed | Max.600mm/s | |
| Positioning accuracy | ≤8um(after calibration) | |
| PCB transport rail | PCB rail transportation height: 900±20mm (from the ground to the PCB guide rail transportation surface) | |
| PCB maximum size: 510mmx460mm | ||
| PCB minimum spacing: ≤90mm | ||
| Parameters | Power source | AC220V/50Hz/2000W |
| Overall size | W1140mmxD1400mmxH1600mm (excluding foot 100±20mm) | |
| Weight | ≈700KG | |
| Air Pressure | ≥0.5MPa | |
| Environmental requirements | Temperature: 5~40℃, relative humidity 25%~80% (no frost) | |
| Upstream and downstream equipment communication | Standard SMEMA interface | |
Software Intuitive User Interface Resolution 10μm Dimensions 1200mm X 1000mm X 1500mm Inspection Area Up To 610mm X 460mm Inspection Speed Up To 60cm²/s Operating System Windows Lighting System LED Inspection Modes 2D And 3D Camera Type High-resolution CCD Connectivity Ethernet, USB
The AOI tester uses Ethernet and USB connectivity, making it easy for the user to connect it to their computer or network. The product has 2D and 3D inspection modes, allowing the user to inspect their PCBs in detail. The inspection speed of the product is up to 60cm²/s, making it quick and efficient to use. The product can detect solder joint, component, and PCB defects, ensuring that the PCB is of high quality. The lighting system of the product is LED, ensuring that the inspection is clear and accurate.
The AOI tester is suitable for various product application occasions and scenarios. It is ideal for companies that manufacture PCBs and want to ensure that their products are of high quality. The product is also suitable for electronic repair shops that need to inspect the PCBs of their customers. The product is also useful for research and development departments that need to inspect PCBs during the development process.
In conclusion, the Mento AOI tester is a high-quality product that is suitable for various product application occasions and scenarios. The product is easy to use and efficient, making it ideal for companies that manufacture PCBs and electronic repair shops. The product is also useful for research and development departments that need to inspect PCBs during the development process.
The AOI Tester product technical support and services include:
Please contact us for more information on our AOI Tester product technical support and services.
