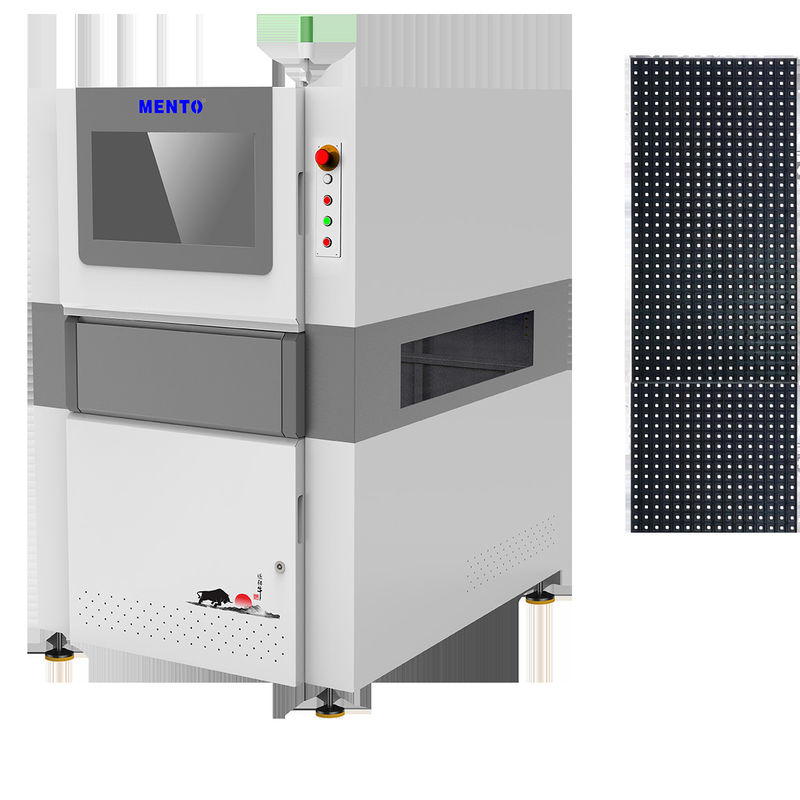

Accurate AOI Tester PCB Automatic Optical Inspection Equipment

Product Details

Place of Origin: China dongguan

Brand Name: Mento

Certification: ISO9001/ISO14001

Model Number: M2020MM

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: W1000mmxD1380mmxH1600mm(without foot 100±20mm)

Delivery Time: 3week

Payment Terms: on line

Supply Ability: 1000/month

Get Best Price
Product Details
Highlight:

Optical Inspection AOI Tester

,

AOI Tester Equipment

,

PCB automatic optical inspection equipment

Dimensions:
1200mm X 1000mm X 1500mm
Software:
Intuitive User Interface
Inspection Speed:
Up To 60cm²/s
Resolution:
10μm
Connectivity:
Ethernet, USB
Operating System:
Windows
Inspection Area:
Up To 610mm X 460mm
Inspection Modes:
2D And 3D
Dimensions:
1200mm X 1000mm X 1500mm
Software:
Intuitive User Interface
Inspection Speed:
Up To 60cm²/s
Resolution:
10μm
Connectivity:
Ethernet, USB
Operating System:
Windows
Inspection Area:
Up To 610mm X 460mm
Inspection Modes:
2D And 3D
Product Description

Product Description:

The AOI Tester boasts an inspection speed of up to 60cm²/s, providing efficient and accurate results. Its operating system is Windows, which makes it user-friendly and easy to operate. It also has a power supply of AC 100-240V, 50/60Hz, making it compatible with different electrical systems.

As an AOI machine, it can detect defects such as missing components, misaligned parts, and soldering issues. It is an effective tool in ensuring that the products that come out of the manufacturing line meet the highest standards. With its automatic optical inspection system, it can detect errors that are too small for the naked eye to see, saving time and effort in manual inspection.

The AOI Tester is an essential tool for manufacturers who prioritize quality control. Its high-resolution CCD camera type and fast inspection speed make it an indispensable part of the production process. It can also handle different types of electronic components, making it versatile and adaptable to different manufacturing needs.



M20M series Mini LED PCB pad measurement
Model M2020MS M2020MM
Detection capacity Inspection items Mini LED PCB pad measurement
Inspection method Global calibration, pad global alignment
Optical system Camera 20MP
telecentric lens High resolution bi-telecentric lens
Resolution 4um (2.4um~5um optional)
Light Source RGB(Customizable)
Efficiency Four side detection 20s/pcs
Computer Configuration PC CPU:Inteli7, RAM:DDR4-32G, GPU:GTX1660-6GB, SSD:250G, HDD:2T
Monitor 22 "LED
Operating System Ubuntu
Detection performance PCB thickness 1~5mm
Maximum allowable component height 20mm upper, 30mm lower (special height can be customized)
Drive Linear motor + grating ruler
Movement speed Max :600mm/s
PCB fixture height 900+20mm(from floor to fixture surface)
Parameters PCB size Max: 300mmx250mm
Power supply AC220V/50Hz/2000W
Dimensions W1330xD1360xH1650mm (excluding warning light)
Weight 1600KG
Air Pressure Requirement ≥0.5Mpa
Environmental requirements Temperature:5~40℃, RH 25%~80%(no frost)
Upstream and downstream equipment communication Standard SMEMA interface / data communication with die bonder


Features:

  • Product Name: AOI Tester
  • Application: PCB Inspection
  • Power Supply: AC 100-240V, 50/60Hz
  • Dimensions: 1200mm X 1000mm X 1500mm
  • Product Type: Automatic Optical Inspection System
  • Camera Type: High-resolution CCD


Technical Parameters:

Application PCB Inspection
Lighting System LED
Inspection Area Up To 610mm X 460mm
Camera Type High-resolution CCD
Operating System Windows
Inspection Speed Up To 60cm²/s
Power Supply AC 100-240V, 50/60Hz
Inspection Modes 2D And 3D
Dimensions 1200mm X 1000mm X 1500mm
Resolution 10μm


Applications:

The Mento AOI Tester is made in China, specifically in Dongguan. It is manufactured under strict quality control standards and is certified with ISO9001 and ISO14001. This ensures that the product is of high quality and meets international standards.

The minimum order quantity for this product is 1, and the price is negotiable. The delivery time is 1 week, and payment can be made online. The supply ability is 1000/month, making it readily available for customers who need it.

The operating system for the Mento AOI Tester is Windows, making it easy to use and navigate. It has Ethernet and USB connectivity, allowing for easy transfer of data. With its inspection speed of up to 60cm²/s, it can quickly and efficiently inspect PCBs.

The Mento AOI Tester is perfect for a variety of application occasions and scenarios. It is ideal for companies that manufacture PCBs as it can help them detect defects and errors early on in the production process. This product can be used in the following scenarios:

  • AOI inspection for PCB manufacturing
  • AOI equipment for PCB assembly
  • AOI inspection for PCB quality control

The dimensions of the Mento AOI Tester are 1200mm X 1000mm X 1500mm, making it compact and easy to move around. Its small size does not compromise its capabilities, as it is a powerful tool for inspecting PCBs.
