Product Details
Place of Origin: China dongguan
Brand Name: Mento
Certification: ISO9001/ISO14001
Model Number: M2025
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: W1000mmxD1380mmxH1600mm(without foot 100±20mm)
Delivery Time: 3 week
Payment Terms: on line
Supply Ability: 1000/month
Operating System: |
Windows |
Resolution: |
10μm |
Inspection Speed: |
Up To 60cm²/s |
Inspection Area: |
Up To 610mm X 460mm |
Defect Detection: |
Solder Joint, Component, And PCB Defects |
Lighting System: |
LED |
Connectivity: |
Ethernet, USB |
Operating System: |
Windows |
Resolution: |
10μm |
Inspection Speed: |
Up To 60cm²/s |
Inspection Area: |
Up To 610mm X 460mm |
Defect Detection: |
Solder Joint, Component, And PCB Defects |
Lighting System: |
LED |
Connectivity: |
Ethernet, USB |

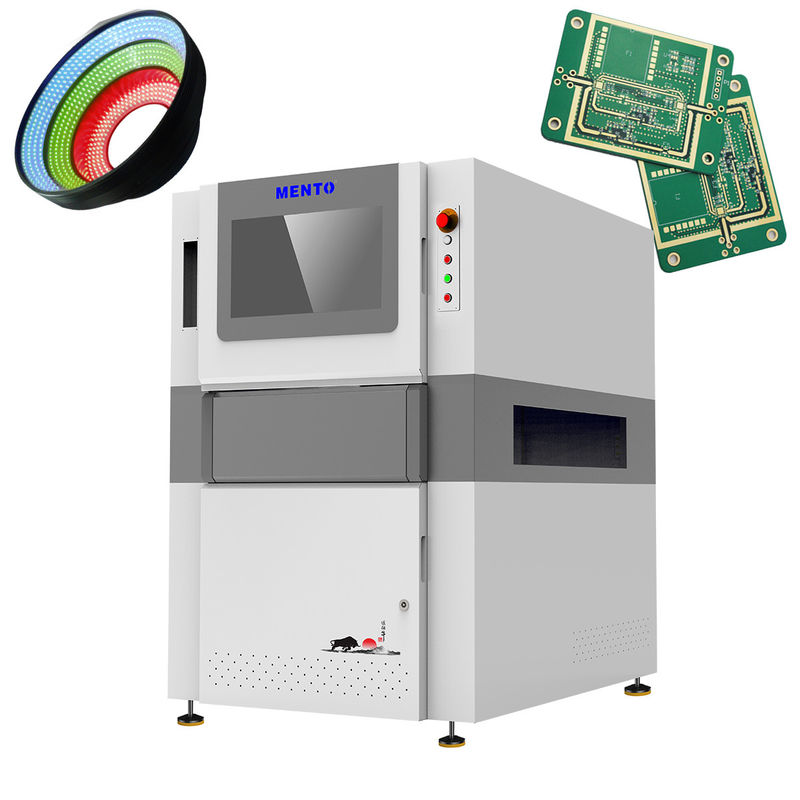

The AOI Tester Machine is capable of inspecting up to 60cm²/s, making it one of the fastest and most dependable machines on the market. This speed ensures that all PCBs are inspected quickly and thoroughly, without compromising on quality. This feature increases the efficiency of the inspection process, allowing for an overall reduction in production time.
The software used in the AOI Tester Machine is designed to provide an intuitive user interface, making it easy for operators to use. This user-friendly software ensures that even those with little to no experience can operate the machine with ease. The software is also highly customizable, allowing for the creation of inspection programs that meet specific requirements.
The lighting system used in the AOI Tester Machine is LED-based, providing superior illumination for the inspection process. The LED lights are energy-efficient and long-lasting, ensuring that the machine operates at optimal levels without the need for frequent replacements. The lighting system is also adjustable, allowing for the optimization of illumination based on the specific requirements of the PCB being inspected.
The camera used in the AOI Tester Machine is a high-resolution CCD camera, capable of capturing detailed images of the PCB under inspection. This camera is equipped with advanced features that ensure the accurate detection of defects. The camera is also highly sensitive, allowing for the detection of even the smallest defects on the PCB. This high level of accuracy ensures that all defects are detected, minimizing the risk of product failures.
The AOI Tester Machine is designed to detect a wide range of defects, including solder joint, component, and PCB defects. This feature ensures that all aspects of the PCB are thoroughly inspected, minimizing the risk of defects that can impact the performance of the final product. The machine is also equipped with advanced defect detection algorithms, ensuring that all defects are accurately detected and classified.
| Model | M20 Series Mini LED appearance inspection M2025 | ||||
| Inspection | Inspection items | Missed bonding, wrong bonding, die damaged, die offset, die tilted, die flipped, wrong polarity, particles, die lift-off, poor collinearity | |||
| Inspection method | Image processing, machine learning | ||||
| Optical System | Camera | 65MP | 25MP | 20MP | 12MP |
| Lens | High resolution bi-telecentric lens | ||||
| Resolution | 4μm(2.4μm~10μm optional)RGB(Customisable) | ||||
| Light Source | RGB customizable | ||||
| Efficiency | Stop then go:3FOV/s | Flying shoot:10FOV/s | |||
| Computer Configuration | PC | CPU:Inteli7, RAM:DDR4-32G, GPU:GTX1660-6GB SSD:250G, HDD:2T | |||
| Monitor | 22 "LED | ||||
| Operating System | Ubuntu | ||||
| Inspection Performance | PCB Thickness | 1~5mm | |||
| Maximum allowable component height | Upper 20mm, Lower 30mm(Customizable) | ||||
| Driver | Servo motor+Screw guide | ||||
| Movement speed | Max:600mm/s | ||||
| PCB fixture height | 900+20mm(from floor to fixture surface) | ||||
| Parameters | PCB size | Max:600mmx500mm(single track, track width adjustable) | |||
| Power | AC220W50Hz2000W | ||||
| Dimensions | W1350xD1000xH1650mm(without alarm light) | ||||
| Weight | ≈1100KG | ||||
| Air Pressure Requirement | ≥0.5Mpa | ||||
| Environmental requirements | Temperature:5~40℃, RH 25%~80%(no frost) | ||||
| Upstream and downstream equipment communication | Standard SMEMA interface / data communication with die bonder | ||||
AOI Tester product is an essential tool for PCB manufacturing. It is created to inspect PCB defects such as solder joint, component, and PCB defects. The AOI inspection PCB is done by using this product, which ensures that the manufacturing process is reliable and efficient. The product's resolution is 10μm, which is remarkable in detecting even the slightest defects in your PCB.
The AOI Tester product has two inspection modes, which are 2D and 3D inspection modes. These modes ensure that all types of PCB defects are detected, making it a versatile tool. With its intuitive user interface, the product is easy to use, even for beginners. The product's connectivity options include Ethernet and USB, which enables you to connect it to your computer easily.
The AOI Tester product can be used in various occasions and scenarios, including mass production lines, repair workshops, and research institutions, among others. It is suitable for electronic manufacturers who want to ensure that their products are high-quality and reliable. The product is also suitable for repair workshops that want to diagnose and repair PCB defects efficiently. Additionally, it is great for research institutions that want to study PCB defects and their causes.
In conclusion, the Mento AOI Tester product is a reliable and efficient tool for AOI inspection, PCB production, and repair. Its high-resolution, intuitive user interface, and versatile inspection modes make it a valuable addition to any electronic manufacturing, repair, or research institution.
Our product type includes Automatic Optical Inspection System that comes with intuitive user interface software to make the inspection process seamless. Our AOI inspection PCB solutions come with 2D and 3D inspection modes that can detect solder joint, component, and PCB defects with ease.
Whether you need a single machine or a bulk order, our minimum order quantity is just 1 and our supply ability is up to 1000/month. Our prices are negotiable and we accept online payments. We also offer a delivery time of just 1 week to ensure you get the solutions you need quickly.
Our AOI Tester product comes with comprehensive technical support and services to ensure that our customers can get the most out of their investment. Our technical support team is available to answer any questions you may have about installation, set-up, and operation of your AOI Tester. We can also provide troubleshooting assistance in the event that you encounter any issues with your AOI Tester.
In addition to our technical support services, we also offer training and consulting services to help you optimize your use of the AOI Tester. Our training programs cover topics such as machine operation, programming, and maintenance, and can be tailored to meet the specific needs of your organization. Our consulting services can help you identify opportunities for process improvements and more effective use of your AOI Tester.
Finally, we offer a range of maintenance and repair services to keep your AOI Tester running at peak performance. Our maintenance services include regular inspections, cleaning, and calibration to ensure that your AOI Tester is always operating at its best. In the event that your AOI Tester requires repair, we offer fast and efficient repair services to minimize downtime and get you back up and running as quickly as possible.
Product Packaging:
The AOI Tester product will come in a sturdy cardboard box to ensure safe transportation and delivery. Inside the box, the product will be securely wrapped in bubble wrap and protected with foam inserts to prevent any damage during shipping. The packaging will also include an instruction manual and a power cord.
Shipping:
We offer free standard shipping for the AOI Tester product to all destinations within the United States. Shipping time will vary depending on the destination, but typically takes between 3-5 business days. We also offer expedited shipping options for an additional fee.
Q: What is the brand of this AOI Tester?
A: The brand of this AOI Tester is Mento.
Q: Where is this AOI Tester manufactured?
A: This AOI Tester is manufactured in Dongguan, China.
Q: Is this AOI Tester certified?
A: Yes, this AOI Tester is certified with ISO9001/ISO14001.
Q: What is the minimum order quantity for this AOI Tester?
A: The minimum order quantity for this AOI Tester is 1.
Q: What is the delivery time for this AOI Tester?
A: The delivery time for this AOI Tester is 3 week.
Q: What are the payment terms for this AOI Tester?
A: The payment terms for this AOI Tester are online.
Q: What is the supply ability of this AOI Tester?
A: The supply ability of this AOI Tester is 1000/month.
Q: Is the price of this AOI Tester negotiable?
A: Yes, the price of this AOI Tester is negotiable.
