Dongguan MENTO Intelligent Technology Co., Ltd. info@mento-mv.com 00-86-13410031559
Product Details
Place of Origin: China dongguan
Brand Name: Mento
Certification: ISO9001/ISO14001
Model Number: K3205
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: W1000mmxD1380mmxH1600mm(without foot 100±20mm)
Delivery Time: 3 week
Payment Terms: on line, L/C, T/T
Supply Ability: 1000/month
Defect Detection: |
Solder Joint, Component, And PCB Defects |
Inspection Speed: |
Up To 60cm²/s |
Resolution: |
10μm |
Camera Type: |
High-resolution CCD |
Operating System: |
Windows |
Power Supply: |
AC 100-240V, 50/60Hz |
Inspection Area: |
Up To 610mm X 460mm |
Defect Detection: |
Solder Joint, Component, And PCB Defects |
Inspection Speed: |
Up To 60cm²/s |
Resolution: |
10μm |
Camera Type: |
High-resolution CCD |
Operating System: |
Windows |
Power Supply: |
AC 100-240V, 50/60Hz |
Inspection Area: |
Up To 610mm X 460mm |

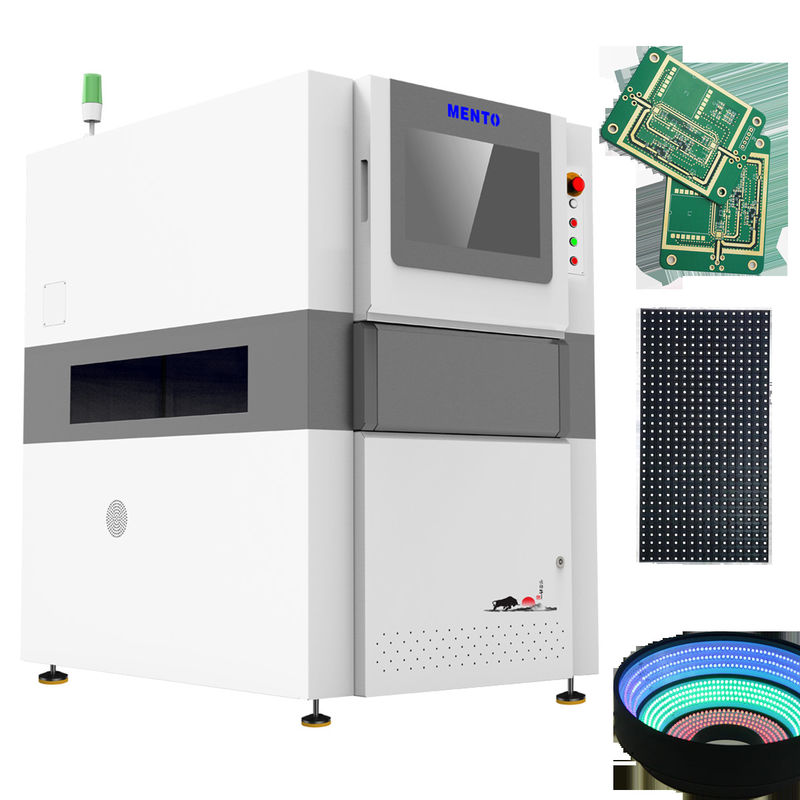

The AOI Tester has two inspection modes, 2D and 3D, which allow it to perform highly accurate inspections. The 2D mode inspects the components and PCBs from a top-down view, while the 3D mode inspects them from multiple angles, providing a more detailed inspection. Both modes can detect a variety of defects such as missing components, misplaced components, incorrect polarity, and solder defects, to name a few.
The inspection speed of the AOI Tester is up to 60cm²/s. This means that it can perform inspections quickly and efficiently, allowing for a faster production rate. The inspection area of the AOI Tester is up to 610mm x 460mm, which is a large enough area to inspect most PCBs and electronic components. This also means that it can inspect multiple components at once, further increasing its efficiency.
The AOI Tester runs on a power supply of AC 100-240V, 50/60Hz. This allows it to be used in a variety of locations and countries. It is also designed to be user-friendly and easy to operate. The AOI Tester operates on the Windows operating system, making it easy to integrate into existing production lines.
Overall, the AOI Tester is an essential piece of AOI equipment for any electronics manufacturing company. It allows for efficient and accurate inspections, ensuring that the products produced are of high quality and free from defects. Its two inspection modes, 2D and 3D, provide a comprehensive inspection of electronic components and PCBs. Its fast inspection speed and large inspection area make it an efficient tool in the production line. Its compatibility with the Windows operating system and user-friendly interface make it easy to integrate into existing production lines.
| Device model | K3205 | |
| Detection capacity | Detection items | Miss print, over solder, insufficient solder, solder bridging, solder paste tailing, shape anomany, offset |
| Scanning method | Stop&Go | |
| Optical system | Camera | 5MP high speed color industrial camera |
| Light Source | Dual DLP light source (raster phase shift technology) and red, green and blue (RGB) light source | |
| Resolution | 10μm & 15um (optional) | |
| Detection performance | Height accuracy (calibration module) | 1μm (using standard calibration block) |
| Volume repeatability | <1% (standard verification block, 3Sigma) | |
| Maximum Plate Bending Compensation Value | ±3mm | |
| Detection Capability GRR | <10%at6o(+50%tolerance, 5μm resolution) | |
| Maximum detection height | 500μm | |
| Solution to shadow problem | Phase shift technology & bidirectional 3D Structured Light system | |
| Plate bending real-time compensation method | Plate Bend Compensation (Z-Tracking+Pad Referencing) | |
| Test screen | Color (3D and 2D images displayed together) | |
| Driving equipment | Servomotor+Screw Guide | |
| Moving speed | 800mm/s | |
| Minimum measurable product size | 50mmx50mm | |
| Maximum product measurable size | 400mmx500mm | |
| PCB thickness | 0.5~6mm | |
| Track width adjustment | Automatic width adjustment, manual width adjustment | |
| Circuit board conveying/fixing | Belt conveyor/pneumatic clamp fixing | |
| Conveying direction | From left to right, right to left | |
| Orbital height | 900±20mm | |
| Computer Configuration | Mainframe | CPU: Intel i5, RAM: DDR4-16G, GPU: GTX1660-6GB, SSD:250G, HDD: 2T |
| Monitor | 22"LED | |
| Operating system | Ubuntu | |
| Parameters | Overall size | W1350xD1000xH1600mm (excluding alarm light) |
| Weight | 1100KG | |
| Power source | AC220V/50~60Hz/2000W | |
| Air Pressure | 0.5Mpa | |
| Software Supported Input Formats | Support Gerber format (274X), ODB++ | |
| Statistical management tools |
Histogram,X-bar&R -Chart ,X-bar&S -C hart ,C p&C pk, %Gage R & R,SPI Daily/Weekly/Monthly Reports, real-time SPC& Multiple Display |
|
| Environmental requirements | Temperature: 5~40℃, relative humidity: 25%~80% (no frost) | |
| Upstream and downstream equipment communication | Standard SMEMA interface | |
| Product Type | Automatic Optical Inspection System |
| Operating System | Windows |
| Resolution | 10μm |
| Lighting System | LED |
| Inspection Modes | 2D And 3D |
| Inspection Speed | Up To 60cm²/s |
| Software | Intuitive User Interface |
| Defect Detection | Solder Joint, Component, And PCB Defects |
| Power Supply | AC 100-240V, 50/60Hz |
| Application | PCB Inspection |
The Mento AOI Tester has dimensions of 1200mm X 1000mm X 1500mm, making it a compact and space-saving solution for factories or manufacturing units. The product comes with intuitive user interface software, making it easy to use for operators. The operating system for this product is Windows, which is commonly used and familiar to many users.
The Mento AOI Tester is suitable for a wide range of product application occasions and scenarios. It is ideal for inspecting solder joints, components, and PCB defects. This product is perfect for use in manufacturing units that require fast and efficient inspection of PCBs. The AOI inspection PCB feature ensures that the product is accurately inspected and defects are detected.
This product is perfect for use in the electronics industry, where the quality of PCBs is crucial. It can also be used in the automotive industry, where reliable and high-quality PCBs are required. The Mento AOI Tester is also suitable for use in the medical industry, where PCBs are used in medical devices.
In conclusion, Mento AOI Tester is an excellent investment for manufacturing units that require high-quality and efficient inspection of PCBs. This product is suitable for a wide range of industries and is easy to use, making it an ideal solution for factories or manufacturing units.
The AOI Tester is a high-tech product that requires technical support and services to ensure optimal performance. Our team of experienced technicians is available to provide troubleshooting assistance, repairs, and maintenance services.
We also offer training and installation services to help our customers get the most out of their AOI Tester. Our support team is available via phone, email, and online chat to answer any questions or concerns you may have.
Additionally, we provide software updates and upgrades to ensure that your AOI Tester is always up-to-date with the latest features and performance enhancements.
Our goal is to provide our customers with exceptional service and support to ensure their AOI Tester operates at peak performance and delivers reliable results.
