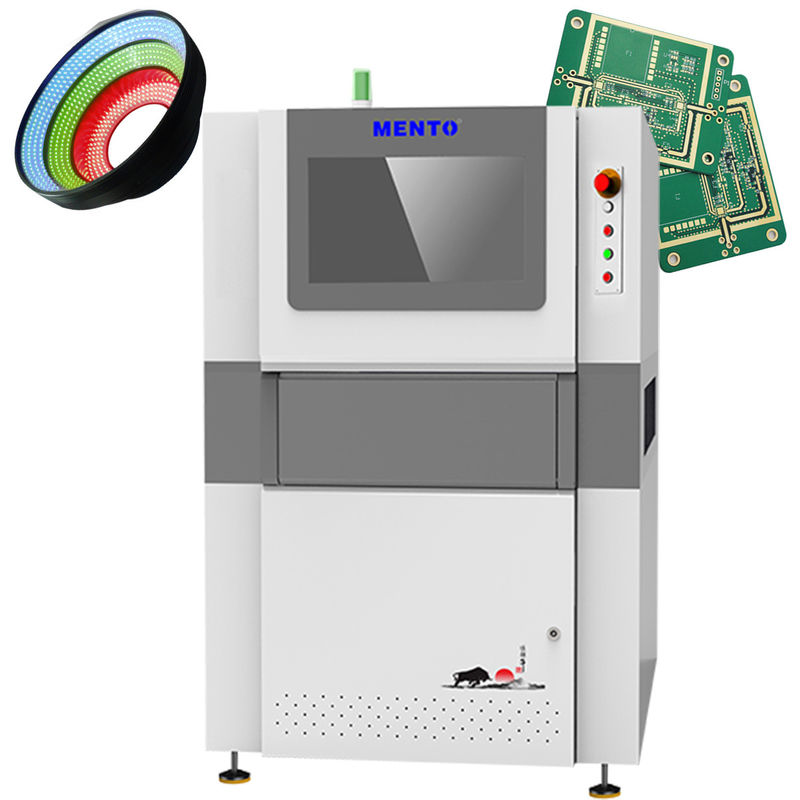

M2020 AOI Automated Visual Inspection Equipment In SMT

Product Details

Place of Origin: DONGGUAN

Brand Name: MENTO

Certification: FCC.ROHS,CCC

Model Number: M2020

Payment & Shipping Terms

Minimum Order Quantity: 3

Packaging Details: W1350xD1000xH1600mm

Delivery Time: 20 work days

Supply Ability: 10pcs+20 work days

Get Best Price
Product Details
Highlight:

M2020 automated visual inspection equipment

,

SMT automated visual inspection equipment

,

M2020 aoi machine in smt

Application:
PCB Inspection
Inspection Speed:
Up To 25 Cm²/s
Operating System:
Windows
Type:
Automated Optical Inspection
Power Supply:
110-240V AC
Camera Type:
High-Resolution CCD
Model:
Tester
Connectivity:
Ethernet
Resolution:
10 μm
Lighting:
LED
Software:
Intuitive GUI
Application:
PCB Inspection
Inspection Speed:
Up To 25 Cm²/s
Operating System:
Windows
Type:
Automated Optical Inspection
Power Supply:
110-240V AC
Camera Type:
High-Resolution CCD
Model:
Tester
Connectivity:
Ethernet
Resolution:
10 μm
Lighting:
LED
Software:
Intuitive GUI
Product Description

M20 Series Mini LED appearance inspection





Model M2020
Inspection Inspection items Missed bonding, wrong bonding, die damaged, die offset, die tilted, die flipped, wrong polarity, particles, die lift-off, poor collinearity
Inspection method Image processing, machine learning
Optical System Camera 20MP
Lens High resolution bi-telecentric lens
Resolution 4μm(2.4μm~10μm optional)RGB(Customisable)
Light Source RGB customizable
Efficiency Stop then go:3FOV/s
Computer Configuration PC CPU:Inteli7, RAM:DDR4-32G, GPU:GTX1660-6GB SSD:250G, HDD:2T
Monitor 22 "LED
Operating System Ubuntu
Inspection Performance PCB Thickness 1~5mm
Maximum allowable component height Upper 20mm, Lower 30mm(Customizable)
Driver Servo motor+Screw guide
Movement speed Max:600mm/s
PCB fixture height 900+20mm(from floor to fixture surface)
Parameters PCB size Max:600mmx500mm(single track, track width adjustable)
Power AC220W50Hz2000W
Dimensions W1350xD1000xH1650mm(without alarm light)
Weight ≈1100KG
Air Pressure Requirement ≥0.5Mpa
Environmental requirements Temperature:5~40℃, RH 25%~80%(no frost)
Upstream and downstream equipment communication Standard SMEMA interface / data communication with die bonder






M2020 AOI Automated Visual Inspection Equipment In SMT 0

Pad measurement/Pad inspection /Solder paste printer/SPI/Die bonder/Pre-reflow AOI/

Reflow oven/Post-reflow AOI /Luminescence inspection/Colloid inspection/Laser Marker/Rework



M2020 AOI Automated Visual Inspection Equipment In SMT 1

M2020 AOI Automated Visual Inspection Equipment In SMT 2

Scientific platform design

Ultra-high precision global calibration technology ensures the accurate measurement of component displacement, tilt, and collinearity anomalies, and further yields quantitative results.



Micron-level Motion Control Capability

Closed-loop control system ensures position accuracy of 1um.

Electronic IO control

Long service life, stable and noiseless: LED light status indication.



M2020 AOI Automated Visual Inspection Equipment In SMT 3



Offset value output Angle value output

Collinearity detection (collinearity, absolute distance, collinearity range, right spacing)





Vision system

Industrial camera

High Precision High Frame Rate Industrial Camera.

Telecentric optical system

High depth of field, low distortion, full pixels, fixed resolution design.

Constant current light source controller

The fully closed-loop constant current digital controller ensures the stability and uniformity of light source brightness.





Image preprocessing (IPE)



A variety of image preprocessing, supporting customized IPE (composed of operator .()+-*/| and IPE expression),

which can better highlight image features.
