Product Details
Place of Origin: China dongguan
Brand Name: Mento
Certification: ISO9001/ISO14001
Model Number: K2005DW
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: W1000mmxD1380mmxH1600mm(without foot 100±20mm)
Delivery Time: 3week
Payment Terms: on line
Supply Ability: 1000/month
Inspection Speed: |
Up To 60cm²/s |
Connectivity: |
Ethernet, USB |
Power Supply: |
AC 100-240V, 50/60Hz |
Product Type: |
Automatic Optical Inspection System |
Resolution: |
10μm |
Operating System: |
Windows |
Software: |
Intuitive User Interface |
Application: |
PCB Inspection |
Inspection Speed: |
Up To 60cm²/s |
Connectivity: |
Ethernet, USB |
Power Supply: |
AC 100-240V, 50/60Hz |
Product Type: |
Automatic Optical Inspection System |
Resolution: |
10μm |
Operating System: |
Windows |
Software: |
Intuitive User Interface |
Application: |
PCB Inspection |

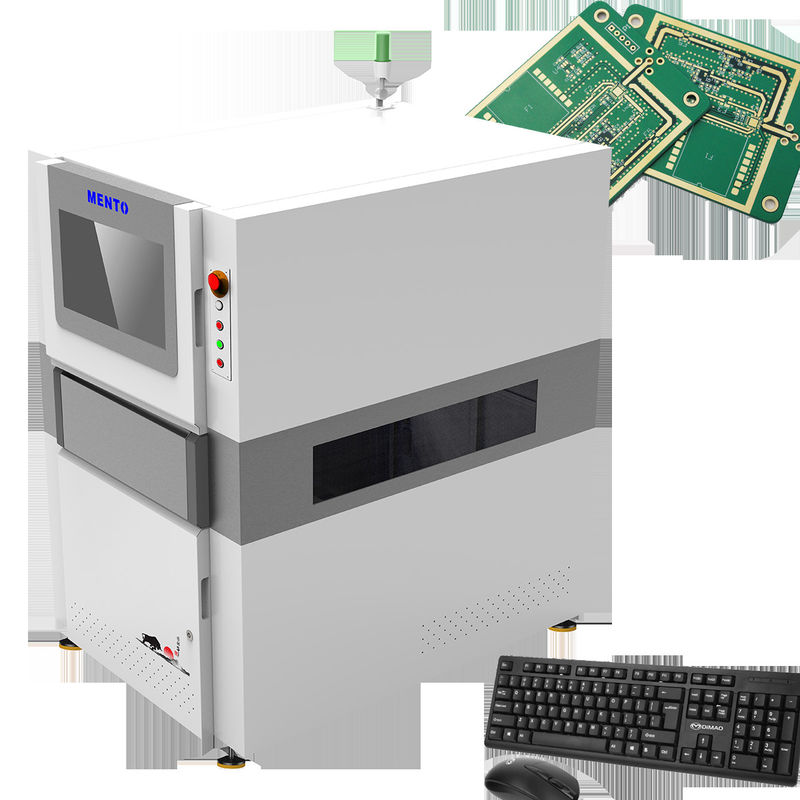

The AOI Tester is a powerful tool for electronics manufacturers who need to ensure the quality of their products. With this AOI machine, you can detect defects in real-time, which allows you to identify and correct issues before they become larger problems. This not only saves time and money but also ensures that your customers receive high-quality products that meet their expectations.
The AOI Tester is designed to be versatile and can be used to inspect a wide range of electronic components, including printed circuit boards (PCBs), surface-mount devices (SMDs), through-hole components, and connectors. The high-resolution CCD cameras and LED lighting system provide clear and accurate images of these components, making it easy to identify any defects or issues that may arise.
The AOI Tester is also designed to be user-friendly and easy to operate. The Windows operating system provides an intuitive interface that allows users to quickly and easily set up and customize the AOI machine for their specific inspection needs. Additionally, the AOI Tester is equipped with advanced software that provides real-time data analysis and reporting, making it easy to track and manage quality control data.
The AOI Tester is the perfect tool for electronics manufacturers who need to ensure the quality of their products. With its advanced technology, versatile design, and user-friendly interface, the AOI Tester makes it easy to detect and correct defects in real-time, ensuring that your customers receive high-quality products that meet their expectations.
| Device model | K2005DW | |
| Detection capacity | Detection items | CHIP component body, CHIP component solder joints, characters, DIP solder joints |
| Smallest component | CHIP:0201 Pitch:0.3mm | |
| Detection method | Algorithm parameter debugging, machine learning | |
| Optical system | Camera | 5MP high speed color industrial camera |
| Telecentric lens | 0.22X/0.17X | |
| Resolution | 15um/20um/25um | |
| FOV | 36x30mm/48x40mm/61x51mm | |
| Detection speed | 3FOV/s | |
| Software system | Operating system | Windows 10 |
| Mechanical property | PCB Thickness | 0.3~10mm(warpage≤5mm) |
| Component Height | 180mm upper, 30mm lower (special height can be customized) | |
| Driving equipment | Servo motor + ball screw + linear slide | |
| Moving speed | Max.600mm/s | |
| Positioning accuracy | ≤8um(after calibration) | |
| PCB transport rail | PCB rail transportation height: 900±20mm (from the ground to the PCB guide rail transportation surface) | |
| PCB maximum size: 510mmx460mm | ||
| PCB minimum spacing: ≤90mm | ||
| Parameters | Power source | AC220V/50Hz/2000W |
| Overall size | W1140mmxD1400mmxH1600mm (excluding foot 100±20mm) | |
| Weight | ≈700KG | |
| Air Pressure | ≥0.5MPa | |
| Environmental requirements | Temperature: 5~40℃, relative humidity 25%~80% (no frost) | |
| Upstream and downstream equipment communication | Standard SMEMA interface | |
The AOI Tester machine is specifically designed for PCB inspection. It can detect defects in solder joints, components, and PCBs. The operating system for the machine is Windows. The machine is equipped with LED lighting, making it easy to inspect the PCBs. The inspection speed of the machine is up to 60cm²/s, making it a fast and efficient option for businesses.
The AOI Tester machine is ideal for businesses that require high-quality PCBs for their products. The machine can be used in a variety of occasions and scenarios, including the manufacturing of electronics, medical equipment, automotive components, and more. The machine is also ideal for businesses that require a high volume of PCBs, as it can quickly and efficiently inspect large quantities of PCBs.
The AOI Tester machine can be used in a variety of settings, including manufacturing plants, research and development facilities, and quality assurance labs. The machine is easy to use and can be operated by trained technicians. The machine is also ideal for businesses that require a high level of accuracy in their PCB inspections, as it can quickly detect even the smallest defects and errors in the manufacturing process.
In conclusion, the Mento brand AOI Tester machine is a high-quality product designed for PCB inspection. Its certifications, supply ability, and delivery time make it an accessible option for businesses of all sizes. Its fast inspection speed and defect detection capabilities make it an ideal option for businesses that require high-quality PCBs.
Our AOI Tester product comes with comprehensive technical support and services to ensure optimal performance and minimize downtime. Our team of experienced technicians is available for remote and on-site support, including installation, setup, calibration, and maintenance. We also offer training programs to help users maximize the potential of the AOI Tester and troubleshoot any issues that may arise.
In addition, we provide software updates and upgrades to ensure that the AOI Tester remains up-to-date with the latest technologies and features. Our support and services are designed to provide peace of mind and ensure that the AOI Tester delivers accurate and reliable results for your business needs.
Product Packaging:
The AOI Tester product will be packaged securely with adequate cushioning material to ensure safe transport. The product will be enclosed in a sturdy cardboard box with all necessary accessories and user manual included.
Shipping:
We use trusted shipping partners to ensure that your AOI Tester product is delivered to you in a timely and safe manner. Shipping rates vary depending on your location and shipping method chosen. Please allow 3-5 business days for processing and handling before your order is shipped.
Frequently Asked Questions about Mento AOI Tester:
Q: What is an AOI tester?
A: AOI stands for Automated Optical Inspection. An AOI tester is a machine that uses cameras and image processing software to inspect electronic components and printed circuit boards for defects.
Q: Where is the Mento AOI Tester made?
A: The Mento AOI Tester is made in China, specifically in Dongguan.
Q: Does the Mento AOI Tester have any certifications?
A: Yes, it has ISO9001 and ISO14001 certifications.
Q: What is the minimum order quantity for the Mento AOI Tester?
A: The minimum order quantity is 1 unit.
Q: What is the price of the Mento AOI Tester?
A: The price is negotiable and depends on various factors such as quantity, customization, and shipping costs.
Q: How long does it take to receive the Mento AOI Tester?
A: The delivery time is approximately 1 week from the date of payment.
Q: What are the payment terms for the Mento AOI Tester?
A: The payment terms are online.
Q: What is the supply ability of the Mento AOI Tester?
A: The supply ability is 1000 units per month.
