Dimensions: |
1200mm X 800mm X 1500mm |
Model: |
Tester |
Weight: |
500kg |
Application: |
PCB Inspection |
Interface: |
Ethernet |
Camera Type: |
High-resolution CCD |
Type: |
Automated Optical Inspection |
Inspection Speed: |
Up To 60 Cm²/s |
Software: |
AOI Software |
Power Supply: |
AC 100-240V, 50/60Hz |
Operating System: |
Windows |
Lighting: |
LED |
Resolution: |
10 μm |
Dimensions: |
1200mm X 800mm X 1500mm |
Model: |
Tester |
Weight: |
500kg |
Application: |
PCB Inspection |
Interface: |
Ethernet |
Camera Type: |
High-resolution CCD |
Type: |
Automated Optical Inspection |
Inspection Speed: |
Up To 60 Cm²/s |
Software: |
AOI Software |
Power Supply: |
AC 100-240V, 50/60Hz |
Operating System: |
Windows |
Lighting: |
LED |
Resolution: |
10 μm |

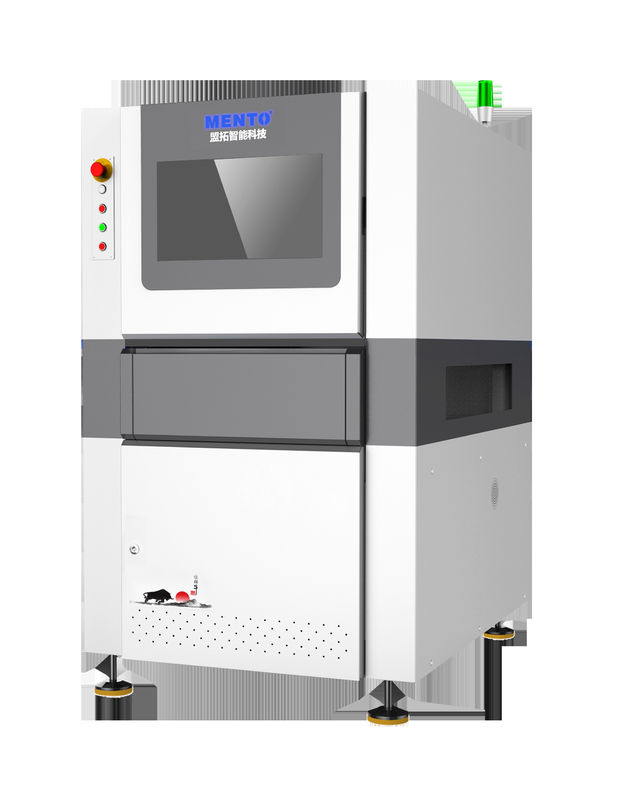

M20M series Mini LED PCB pad measurement
| Model | M2020MS | |
| Detection capacity | Inspection items | Mini LED PCB pad measurement |
| Inspection method | Global calibration, pad global alignment | |
| Optical system | Camera | 20MP |
| telecentric lens | High resolution bi-telecentric lens | |
| Resolution | 4um (2.4um~5um optional) | |
| Light Source | RGB(Customizable) | |
| Efficiency | Four side detection 20s/pcs | |
| Computer Configuration | PC | CPU:Inteli7, RAM:DDR4-32G, GPU:GTX1660-6GB, SSD:250G, HDD:2T |
| Monitor | 22 "LED | |
| Operating System | Ubuntu | |
| Detection performance | PCB thickness | 1~5mm |
| Maximum allowable component height | 20mm upper, 30mm lower (special height can be customized) | |
| Drive | Linear motor + grating ruler | |
| Movement speed | Max :600mm/s | |
| PCB fixture height | 900+20mm(from floor to fixture surface) | |
| Parameters | PCB size | Max: 300mmx250mm |
| Power supply | AC220V/50Hz/2000W | |
| Dimensions | W1330xD1360xH1650mm (excluding warning light) | |
| Weight | 1600KG | |
| Air Pressure Requirement | ≥0.5Mpa | |
| Environmental requirements | Temperature:5~40℃, RH 25%~80%(no frost) | |
| Upstream and downstream equipment communication | Standard SMEMA interface / data communication with die bonder | |
Pad measurement/Pad inspection /Solder paste printer/SPI/Die bonder/Pre-reflow AOI/Reflow oven/Post-reflow AOI /
Luminescence inspection/Colloid inspection/Laser Marker/Rework
Scientific platform design
The linear motor + linear encoder have high repeatability and positioning accuracy, and operate smoothly.
The high-precision motion control system design
avoids the loss of motion system data, ensures high-speed and stable motion, and effectively improves motion acceleration and deceleration.
The marble platform
effectively ensures high-precision, continuous and stable operation of the equipment.
