Dongguan MENTO Intelligent Technology Co., Ltd. info@mento-mv.com 00-86-13410031559
Product Details
Place of Origin: China dongguan
Brand Name: Mento
Certification: ISO9001/ISO14001
Model Number: K3412
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: W1000mmxD1380mmxH1600mm(without foot 100±20mm)
Delivery Time: 3 week
Payment Terms: on line
Supply Ability: 1000/month
Inspection Area: |
Up To 610mm X 460mm |
Dimensions: |
1200mm X 1000mm X 1500mm |
Power Supply: |
AC 100-240V, 50/60Hz |
Resolution: |
10μm |
Product Type: |
Automatic Optical Inspection System |
Connectivity: |
Ethernet, USB |
Inspection Speed: |
Up To 60cm²/s |
Camera Type: |
High-resolution CCD |
Inspection Area: |
Up To 610mm X 460mm |
Dimensions: |
1200mm X 1000mm X 1500mm |
Power Supply: |
AC 100-240V, 50/60Hz |
Resolution: |
10μm |
Product Type: |
Automatic Optical Inspection System |
Connectivity: |
Ethernet, USB |
Inspection Speed: |
Up To 60cm²/s |
Camera Type: |
High-resolution CCD |

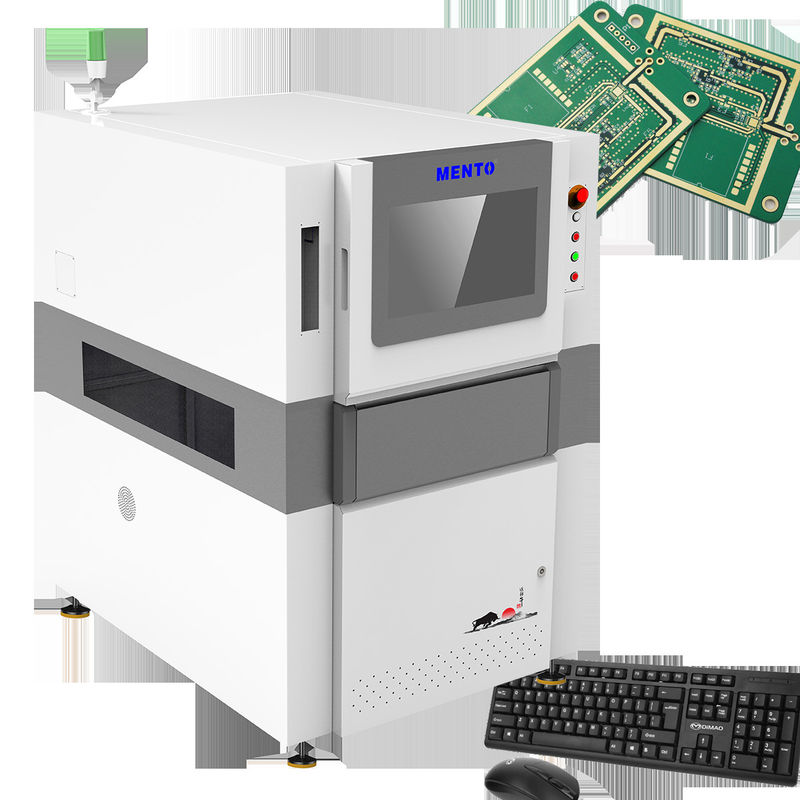

The AOI Tester Machine uses advanced imaging technology to detect any defects in the PCBs, ensuring that only the highest quality products are delivered to clients. It is equipped with high-resolution cameras that capture images of the PCBs and compare them to the original design. This ensures that all components are correctly placed, and there are no defects such as cracks, scratches, or contamination.
The AOI machine has a easy-to-use interface that allows users to quickly set up and run inspections. It can connect to Ethernet and USB, making data transfer fast and efficient. The machine is also equipped with a power supply of AC 100-240V, 50/60Hz, which enables it to be used in various countries without the need for an external power converter.
One of the key features of the AOI Tester Machine is its inspection speed. It can inspect up to 60cm²/s, making it one of the fastest machines on the market. This ensures that the production process is not slowed down, and clients receive their products on time.
The AOI machine is perfect for various industries that require high-quality PCBs, such as the automotive, aerospace, and telecommunications industries. Its reliability, efficiency, and accuracy make it a valuable asset to any production line.
| Device model | K3412 | |
| Detection capacity | Detection items | |
| Scanning method | Stop&Go | |
| Optical system | Camera | 12MP high speed color industrial camera |
| Light Source | 4 DLP light source (raster phase shift technology) and red, green and blue (RGB) light source | |
| Resolution | 10μm & 15um (optional) | |
| Volume repeatability | <1% (standard verification block, 3Sigma) | |
| Maximum Plate Bending Compensation Value | ±3mm | |
| Detection Capability GRR | <10%at6o(+50%tolerance, 5μm resolution) | |
| Maximum detection height | 20mm/40mm | |
| Solution to shadow problem | Phase shift technology & bidirectional 3D Structured Light system | |
| Plate bending real-time compensation method | Plate Bend Compensation (Z-Tracking+Pad Referencing) | |
| Test screen | Color (3D and 2D images displayed together) | |
| Driving equipment | Servomotor+Screw Guide | |
| Moving speed | 800mm/s | |
| Minimum measurable product size | 50mmx50mm | |
| Maximum product measurable size | 400mmx500mm | |
| PCB thickness | 0.5~6mm | |
| Track width adjustment | Automatic width adjustment, manual width adjustment | |
| Circuit board conveying/fixing | Belt conveyor/pneumatic clamp fixing | |
| Conveying direction | From left to right, right to left | |
| Orbital height | 900±20mm | |
| Computer Configuration | Mainframe | CPU: Intel i5, RAM: DDR4-16G, GPU: GTX1660-6GB, SSD:250G, HDD: 2T |
| Monitor | 22"LED | |
| Operating system | Ubuntu | |
| Parameters | Overall size | W1000xD1380xH1600mm (excluding alarm light) |
| Weight | 1100KG | |
| Power source | AC220V/50~60Hz/2000W | |
| Air Pressure | 0.5Mpa | |
| Environmental requirements | Temperature: 5~40℃, relative humidity: 25%~80% (no frost) | |
| Upstream and downstream equipment communication | Standard SMEMA interface | |
| Defect Detection | Solder Joint, Component, And PCB Defects |
| Camera Type | High-resolution CCD |
| Inspection Speed | Up To 60cm²/s |
| Operating System | Windows |
| Inspection Modes | 2D And 3D |
| Application | PCB Inspection |
| Software | Intuitive User Interface |
| Inspection Area | Up To 610mm X 460mm |
| Dimensions | W1000xD1380xH1600mm (excluding alarm light) |
| Power Supply | AC 100-240V, 50/60Hz |
The Mento AOI Tester has a high resolution of 10μm and can inspect an area up to 610mm X 460mm. It is equipped with Windows operating system making it easy to use. It is an AOI machine that can detect various types of defects such as solder joint, component and PCB defects. It provides accurate and reliable inspection results.
The Mento AOI Tester is perfect for use in PCB assembly plants, electronic product manufacturers, and other related industries. It can be used in various applications such as PCB assembly line, SMT production line, and rework station. The AOI machine can be used for inspecting PCBs before and after reflow soldering, as well as after wave soldering. It can also be used in PCB repair and inspection of incoming materials.
The Mento AOI Tester can be used in various scenarios. It can be used in the production process to ensure the quality of the PCBs, reducing the risk of defective products being produced. It can also be used in quality control to ensure that the final product meets the required specifications. The AOI tester can be used in R&D to ensure the design is correct and free from defects. It can also be used in after-sales service to inspect and repair faulty products.
The Mento AOI Tester is equipped with Ethernet and USB connectivity making it easy to connect to other devices. It can be connected to a computer or network for data transfer and management. The AOI tester is easy to operate and maintain, making it an ideal choice for both small and large businesses.
Overall, the Mento AOI Tester is an excellent product for AOI inspection PCB. Its high resolution, large inspection area, and defect detection capability make it a valuable tool in the production process. It is easy to use, reliable, and efficient, making it an ideal choice for businesses looking to improve their product quality and reduce production costs.
Connectivity options include Ethernet and USB, while the camera type boasts high-resolution CCD. The inspection modes include 2D and 3D, and the operating system runs on Windows.
For those interested in the product customization services, payment terms are available online.
The AOI Tester product technical support and services include:
- Remote technical support
- On-site technical support
- Product training and education
- Repair and maintenance services
- Spare parts and replacement services
- Software upgrades and updates
- Documentation and user manuals
