Dongguan MENTO Intelligent Technology Co., Ltd. info@mento-mv.com 00-86-13410031559
Product Details
Place of Origin: China dongguan
Brand Name: Mento
Certification: ISO9001/ISO14001
Model Number: M2065
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: W1000mmxD1380mmxH1600mm(without foot 100±20mm)
Delivery Time: 3week
Payment Terms: on line, L/C, T/T
Supply Ability: 1000/month
Programming: |
Easy-to-use Drag And Drop |
Connectivity: |
Ethernet, USB |
Weight: |
500kg |
Camera Type: |
High-resolution CCD |
Inspection Type: |
2D And 3D |
Resolution: |
5um |
Inspection Area: |
Up To 610mm X 460mm |
Programming: |
Easy-to-use Drag And Drop |
Connectivity: |
Ethernet, USB |
Weight: |
500kg |
Camera Type: |
High-resolution CCD |
Inspection Type: |
2D And 3D |
Resolution: |
5um |
Inspection Area: |
Up To 610mm X 460mm |
| Model | M20 Series Mini LED appearance inspection M2065 | |
| Inspection | Inspection items | Missed bonding, wrong bonding, die damaged, die offset, die tilted, die flipped, wrong polarity, particles, die lift-off, poor collinearity |
| Inspection method | Image processing, machine learning | |
| Optical System | Camera | 65MP |
| Lens | High resolution bi-telecentric lens | |
| Resolution | 4μm(2.4μm~10μm optional)RGB(Customisable) | |
| Light Source | RGB customizable | |
| Efficiency | Stop then go:3FOV/s | |
| Computer Configuration | PC | CPU:Inteli7, RAM:DDR4-32G, GPU:GTX1660-6GB SSD:250G, HDD:2T |
| Monitor | 22 "LED | |
| Operating System | Ubuntu | |
| Inspection Performance | PCB Thickness | 1~5mm |
| Maximum allowable component height | Upper 20mm, Lower 30mm(Customizable) | |
| Driver | Servo motor+Screw guide | |
| Movement speed | Max:600mm/s | |
| PCB fixture height | 900+20mm(from floor to fixture surface) | |
| Parameters | PCB size | Max:600mmx500mm(single track, track width adjustable) |
| Power | AC220W50Hz2000W | |
| Dimensions | W1350xD1000xH1650mm(without alarm light) | |
| Weight | ≈1100KG | |
| Air Pressure Requirement | ≥0.5Mpa | |
| Environmental requirements | Temperature:5~40℃, RH 25%~80%(no frost) | |
| Upstream and downstream equipment communication | Standard SMEMA interface / data communication with die bonder | |

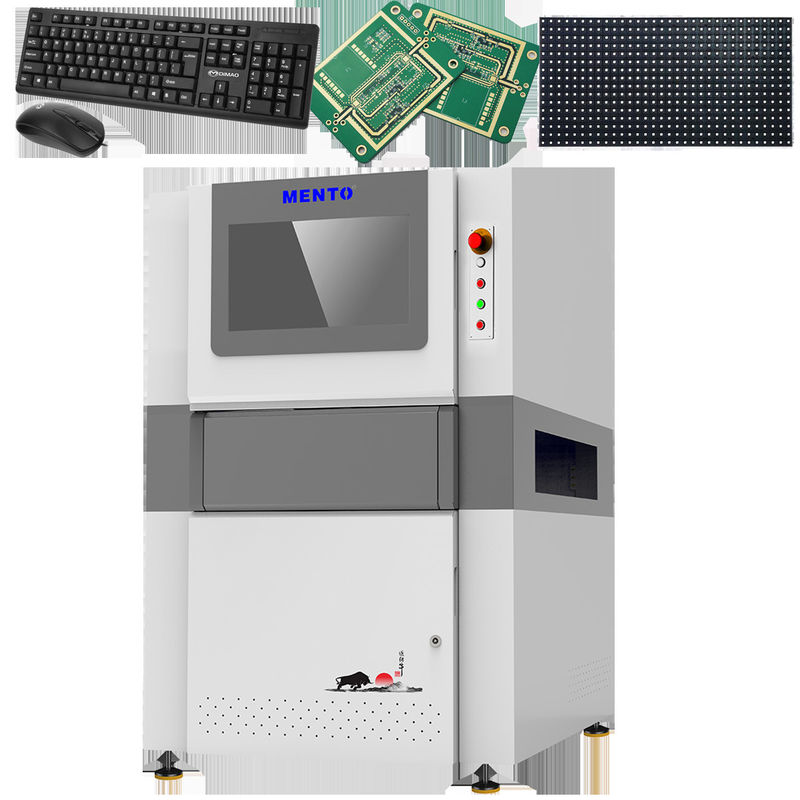

The Automated Optical Inspection Machine is equipped with advanced optical inspection methods that can detect defects on the PCB, such as soldering issues, missing components, and misalignment. This machine can perform both 2D and 3D inspections, making it ideal for inspecting complex PCBs with multiple layers. The inspection speed of this machine is up to 1000mm/s, which enables fast and efficient inspection of PCBs.
The power supply of the Automated Optical Inspection Machine is AC 100-240V, 50/60Hz, making it compatible with various power sources.
When considering the automated optical inspection machine price, it is essential to note that this machine is a valuable investment for companies that manufacture PCBs. The machine can inspect PCBs quickly and accurately, which can help to identify and resolve issues early on in the manufacturing process. This can lead to significant cost savings in the long run.
The Automated Optical Inspection Machine is a powerful PCB inspection machine that can help to improve the quality of PCBs and reduce the need for manual inspection. This machine is easy to operate and can be customized to meet the specific needs of different companies.
| Product Attribute | Technical Parameter |
| Product Name | 3D Automated Optical Inspection Machine |
| Weight | 500kg |
| Dimensions | W1000mmxD1380mmxH1600mm |
| Programming | Easy-to-use Drag And Drop |
| Software | Intuitive GUI |
| Camera Type | High-resolution CCD |
| Inspection Type | 2D And 3D |
| Lighting Type | LED |
| Inspection Area | Up To 610mm X 460mm |
| Power Supply | AC 100-240V, 50/60Hz |
| Operating System | Windows |
The Automated Optical Inspection Machine is a highly efficient and advanced machine that uses optical inspection methods to detect defects in electronic components and printed circuit boards. The machine can inspect both 2D and 3D components, ensuring that every detail is analyzed with high accuracy and precision. The operating system of our machines is Windows, and the resolution is 5um, which is extremely high and provides clear and detailed images of the components.
The Automated Optical Inspection Machine is equipped with a high-resolution CCD camera, which guarantees that every detail of the inspected components is captured. The power supply required for our machines is AC 100-240V, 50/60Hz, which makes it suitable for use in different countries and regions.
Our Automated Optical Inspection Machines are perfect for use in a variety of scenarios and occasions. They can be used in the production of electronic components and printed circuit boards, ensuring that every component is inspected for defects and quality control. They can also be used in the repair and maintenance of electronic components, ensuring that any defects are detected and corrected before they cause further damage. Additionally, our machines are ideal for research and development, where precise and accurate inspection is required for new products and prototypes.
Investing in an Automated Optical Inspection Machine from Mento is a wise decision. Our machines are highly efficient, accurate, and reliable, providing you with the best optical inspection methods available. Contact us today to place your order and experience the benefits of our Automated Optical Inspection Machines.
The Automated Optical Inspection Machine product technical support and services include:
- Installation and setup assistance
- Training and education programs for operators and maintenance personnel
- Technical troubleshooting and diagnosis
- Repair and maintenance services
- Software updates and upgrades
- Spare parts and consumables
- On-site support for critical issues
- Remote support and monitoring
- Customization and integration services
Product Packaging:
The Automated Optical Inspection Machine will come securely packaged in a wooden crate to prevent any damage during transportation. The crate will be labeled with the product name and any necessary handling instructions.
Shipping:
We offer worldwide shipping for the Automated Optical Inspection Machine. Shipping fees will vary depending on the destination and shipping method selected. We will provide a tracking number once the product has shipped.
A: The brand name of the machine is Mento.
Q: Where is the machine manufactured?
A: The machine is manufactured in China, specifically in Dongguan.
Q: What certifications does the machine have?
A: The machine has ISO9001 and ISO14001 certifications.
Q: What is the minimum order quantity for the machine?
A: The minimum order quantity for the machine is 1.
Q: What are the payment terms for ordering the machine?
A: The payment terms for ordering the machine are online.
Q: What is the supply ability of the machine?
A: The supply ability of the machine is 1000 units per month.
