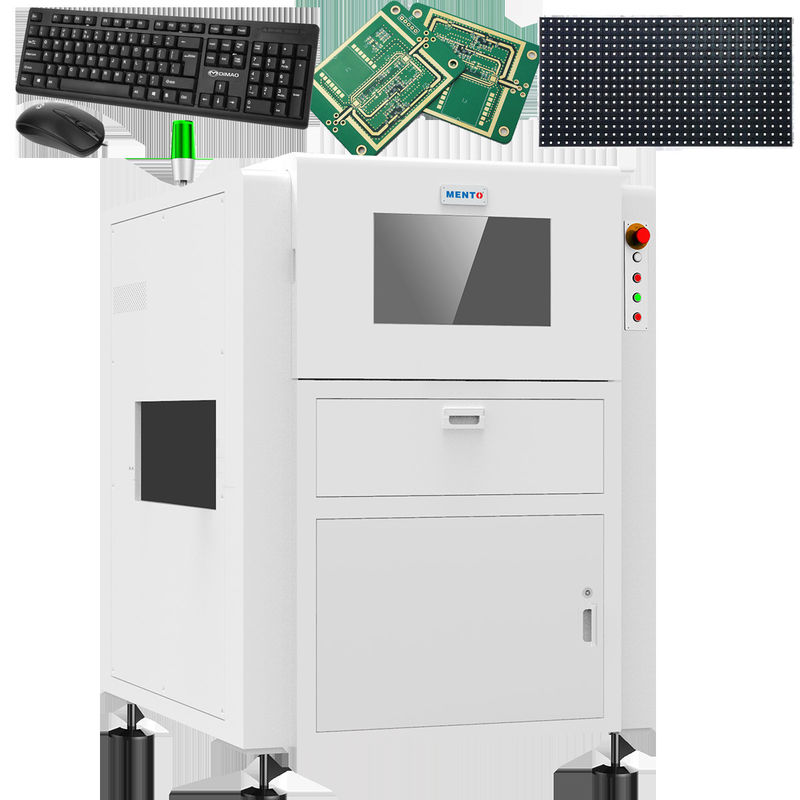

AOI Wafer Automated Optical Inspection Machine For CHIP Component

Product Details

Place of Origin: China dongguan

Brand Name: Mento

Certification: ISO9001/ISO14001

Model Number: K2012DW

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: W1350xD1000xH1600mm

Delivery Time: 3 week

Payment Terms: on line, L/C, T/T

Supply Ability: 1000/month

Get Best Price
Product Details
Highlight:

Wafer Automated Optical Inspection Machine

,

CHIP Automated Optical Inspection Machine

,

CHIP aoi wafer inspection

Operating System:
Windows
Camera Type:
High-resolution CCD
Software:
Intuitive GUI
Inspection Area:
Up To 610mm X 460mm
Inspection Speed:
Up To 1000mm/s
Lighting Type:
LED
Resolution:
5um
Inspection Type:
2D And 3D
Operating System:
Windows
Camera Type:
High-resolution CCD
Software:
Intuitive GUI
Inspection Area:
Up To 610mm X 460mm
Inspection Speed:
Up To 1000mm/s
Lighting Type:
LED
Resolution:
5um
Inspection Type:
2D And 3D
Product Description

Product Description:



Device model K2012DW
Detection capacity Detection items CHIP component body, CHIP component solder joints, characters, DIP solder joints
Smallest component CHIP:0201 Pitch:0.3mm
Detection method Algorithm parameter debugging, machine learning
Optical system Camera 12MP high-speed color industrial camera
Telecentric lens 0.23X
Resolution 15um
FOV 60x45mm
Detection speed 3FOV/s
Software system Operating system Windows 10
Mechanical property PCB Thickness 0.3~10mm(warpage≤5mm)
Component Height 180mm upper, 30mm lower (special height can be customized)
Driving equipment Servo motor + ball screw + linear slide
Moving speed Max.600mm/s
Positioning accuracy ≤8um(after calibration)
PCB transport rail PCB rail transportation height: 900±20mm (from the ground to the PCB guide rail transportation surface)
PCB maximum size: 510mmx460mm
PCB minimum spacing: ≤90mm
Parameters Power source AC220V/50Hz/2000W
Overall size W1140mmxD1400mmxH1600mm (excluding foot 100±20mm)
Weight ≈700KG
Air Pressure ≥0.5MPa
Environmental requirements Temperature: 5~40℃, relative humidity 25%~80% (no frost)
Upstream and downstream equipment communication Standard SMEMA interface


The AOI Automated Optical Inspection Machine is a sophisticated piece of equipment that is designed to make the inspection process faster and more accurate. It is equipped with the latest technology that allows it to detect even the most minute defects in the PCB. The machine has a large inspection area of up to 610mm X 460mm which makes it suitable for use in a wide range of applications.

The machine is built to last and is made from high-quality materials that are both durable and reliable. It weighs approximately 500kg and has dimensions of 1200mm X 1000mm X 1500mm. This makes it easy to transport and install in a variety of different settings.

The AOI Automated Optical Inspection Machine is designed to provide both 2D and 3D inspection capabilities. This allows it to detect a wide range of defects including soldering defects, missing components, misaligned components, and more. The 3D inspection capabilities of the machine allow it to detect defects that are not visible with traditional 2D inspection methods.

The machine is built with the latest technology that allows it to detect defects quickly and accurately. It is equipped with a high-resolution camera that can capture images of the PCB at a high speed. The machine is also equipped with advanced software that can analyze the images and detect defects with a high degree of accuracy.

The AOI Automated Optical Inspection Machine is easy to use and is equipped with a user-friendly interface. It is designed to be operated by individuals with a minimal amount of training. The machine can be operated using a Windows operating system which makes it easy to integrate into existing systems.

In conclusion, the AOI Automated Optical Inspection Machine is a highly advanced product that is designed to meet the needs of the electronics manufacturing industry. It is a sophisticated PCB inspection machine that is equipped with the latest technology and optical inspection methods. The machine has a large inspection area of up to 610mm X 460mm which makes it suitable for use in a wide range of applications. It is easy to use and can be operated using a Windows operating system. If you are looking for a high-quality AOI Automated Optical Inspection Machine, then this product is definitely worth considering.



Features:

  • Product Name: Automated Optical Inspection Machine
  • Connectivity: Ethernet, USB
  • Inspection Area: Up To 610mm X 460mm
  • Weight: 500kg
  • Programming: Easy-to-use Drag And Drop
  • Camera Type: High-resolution CCD

Looking for the best automated optical inspection machine? Our product offers superior quality and functionality for your optical inspection needs. With its easy-to-use drag and drop programming, you can easily customize your inspection methods. Plus, its high-resolution CCD camera ensures the most accurate results. And at an affordable automated optical inspection machine price, you can't go wrong with our Automated Optical Inspection Machine.



Technical Parameters:

Technical Parameter Value
Power Supply AC 100-240V, 50/60Hz
Inspection Speed Up To 1000mm/s
Weight 500kg
Resolution 5um
Dimensions W1350xD1000xH1600mm
Connectivity Ethernet, USB
Programming Easy-to-use Drag And Drop
Camera Type High-resolution CCD
Inspection Area Up To 610mm X 460mm
Operating System Windows


Applications:

Mento's operating system is Windows, which is compatible with most computers, making it easy to use and integrate into existing systems. The machine's inspection speed is up to 1000mm/s, making it efficient and fast. Mento's supply ability is 1000/month, ensuring that it is readily available to meet customer demand. Mento's pricing is negotiable, making it accessible to both small and large businesses.

Mento's minimum order quantity is 1, making it ideal for small businesses and individuals. The machine's delivery time is 1 week, ensuring that customers receive their orders in a timely manner. Mento's payment terms are online, making it convenient for customers to make their purchases.

Mento's optical inspection methods make it ideal for a variety of application occasions and scenarios. The machine's high-speed inspection capabilities make it ideal for mass production lines, ensuring that products are inspected quickly and efficiently. The machine's LED lighting type makes it ideal for inspecting small, intricate parts, ensuring that flaws and defects are easily detected. Mento's easy-to-use programming feature makes it ideal for research and development laboratories, allowing users to quickly and easily create inspection programs.

In summary, Mento is a high-quality, efficient, and easy-to-use automated optical inspection machine that is ideal for a variety of application occasions and scenarios. Its compact size, high-speed inspection capabilities, and easy-to-use programming features make it an ideal choice for businesses and individuals alike.



Customization:

  • Brand Name: Mento
  • Place of Origin: China dongguan
  • Certification: ISO9001/ISO14001
  • Minimum Order Quantity: 1
  • Price: Negotiable
  • Delivery Time: 1 week
  • Payment Terms: On line
  • Supply Ability: 1000/month
  • Weight: 500kg
  • Lighting Type: LED
  • Programming: Easy-to-use Drag And Drop
  • Software: Intuitive GUI
  • Resolution: 5um

Our AOI Automated Optical Inspection Machine uses advanced optical inspection methods to detect faults in PCBs. With customizable features, you can tailor your machine to your specific needs. Contact us today to discuss your requirements.



Support and Services:

The Automated Optical Inspection Machine product technical support and services include:

  • Installation and setup assistance
  • Software updates and upgrades
  • Troubleshooting and problem resolution
  • Training and education on machine operation and maintenance
  • Remote technical support
  • On-site technical support
  • Regular maintenance and calibration services


Packing and Shipping:

Product Packaging:

The Automated Optical Inspection Machine will be carefully packaged in a sturdy cardboard box. The machine will be secured in place with foam padding to prevent any damage during transportation. The box will also include a user manual and power cord.

Shipping:

We offer free shipping of the Automated Optical Inspection Machine to all of our customers. The machine will be shipped via a reputable courier service and will be insured for its full value. Customers can expect to receive their order within 5-7 business days after it has been dispatched. We will provide a tracking number so that customers can track their package.



FAQ:

Q: What is the brand name of this Automated Optical Inspection Machine?

A: The brand name of this machine is Mento.

Q: Where is this product manufactured?

A: This product is manufactured in China, Dongguan.

Q: Does this product have any certifications?

A: Yes, this product has ISO9001 and ISO14001 certifications.

Q: What is the minimum order quantity for this machine?

A: The minimum order quantity for this machine is 1.

Q: How much does this machine cost?

A: The price for this machine is negotiable.

Q: What is the delivery time for this machine?

A: The delivery time for this machine is 3 week.

Q: What are the payment terms for this machine?

A: The payment terms for this machine are online.

Q: What is the supply ability for this machine?

A: The supply ability for this machine is 1000 per month.
