Dongguan MENTO Intelligent Technology Co., Ltd. info@mento-mv.com 00-86-13410031559
Product Details
Place of Origin: China dongguan
Brand Name: Mento
Certification: ISO9001/ISO14001
Model Number: K3212
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: W1000mmxD1380mmxH1600mm(without foot 100±20mm)
Delivery Time: 3week
Payment Terms: on line
Supply Ability: 1000/month
Operating System: |
Windows |
Resolution: |
5um |
Inspection Area: |
Up To 610mm X 460mm |
Power Supply: |
AC 100-240V, 50/60Hz |
Inspection Type: |
2D And 3D |
Connectivity: |
Ethernet, USB |
Operating System: |
Windows |
Resolution: |
5um |
Inspection Area: |
Up To 610mm X 460mm |
Power Supply: |
AC 100-240V, 50/60Hz |
Inspection Type: |
2D And 3D |
Connectivity: |
Ethernet, USB |
| 3D Solder Paste Inspection | ||
| Device model | K3212 | |
| Detection capacity | Detection items | Miss print, over solder, insufficient solder, solder bridging, solder paste tailing, shape anomany, offset |
| Scanning method | Stop&Go | |
| Optical system | Camera | 12MP high-speed color industrial camera |
| Light Source | Dual DLP light source (raster phase shift technology) and red, green and blue (RGB) light source | |
| Resolution | 10μm & 15um (optional) | |
| Detection performance | Height accuracy (calibration module) | 1μm (using standard calibration block) |
| Volume repeatability | <1% (standard verification block, 3Sigma) | |
| Maximum Plate Bending Compensation Value | ±3mm | |
| Detection Capability GRR | <10%at6o(+50%tolerance, 5μm resolution) | |
| Maximum detection height | 500μm | |
| Solution to shadow problem | Phase shift technology & bidirectional 3D Structured Light system | |
| Plate bending real-time compensation method | Plate Bend Compensation (Z-Tracking+Pad Referencing) | |
| Test screen | Color (3D and 2D images displayed together) | |
| Driving equipment | Servomotor+Screw Guide | |
| Moving speed | 800mm/s | |
| Minimum measurable product size | 50mmx50mm | |
| Maximum product measurable size | 400mmx500mm | |
| PCB thickness | 0.5~6mm | |
| Track width adjustment | Automatic width adjustment, manual width adjustment | |
| Circuit board conveying/fixing | Belt conveyor/pneumatic clamp fixing | |
| Conveying direction | From left to right, right to left | |
| Orbital height | 900±20mm | |
| Computer Configuration | Mainframe | CPU: Intel i5, RAM: DDR4-16G, GPU: GTX1660-6GB, SSD:250G, HDD: 2T |
| Monitor | 22"LED | |
| Operating system | Ubuntu | |
| Parameters | Overall size | W1350xD1000xH1600mm (excluding alarm light) |
| Weight | 1100KG | |
| Power source | AC220V/50~60Hz/2000W | |
| Air Pressure | 0.5Mpa | |
| Software Supported Input Formats | Support Gerber format (274X), ODB++ | |
| Statistical management tools |
Histogram,X-bar&R -Chart ,X-bar&S -C hart ,C p&C pk, %Gage R & R,SPI Daily/Weekly/Monthly Reports, real-time SPC& Multiple Display |
|
| Environmental requirements | Temperature: 5~40℃, relative humidity: 25%~80% (no frost) | |
| Upstream and downstream equipment communication | Standard SMEMA interface | |

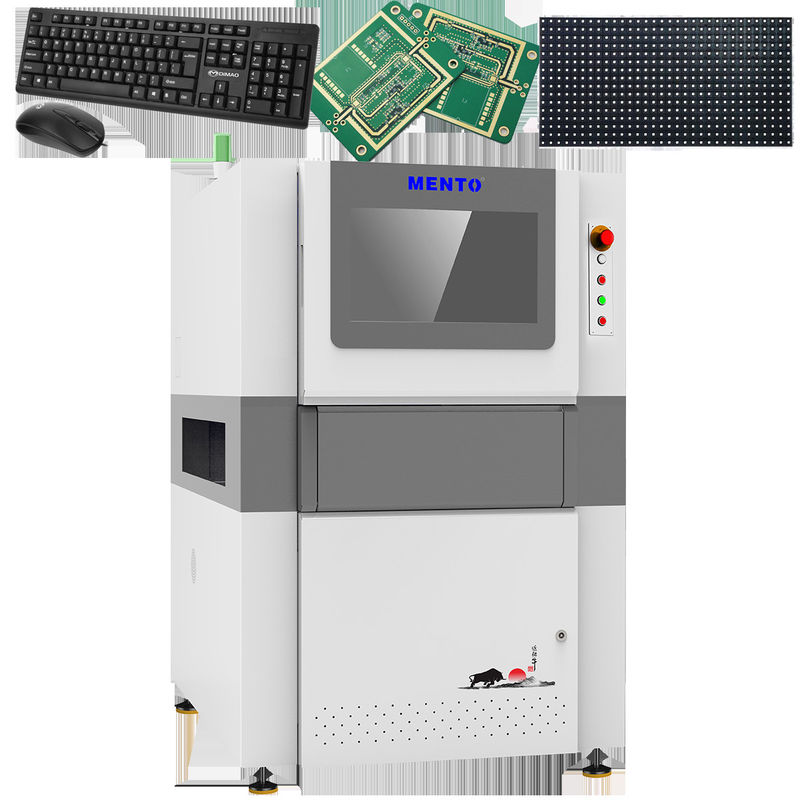

The Automated Optical Inspection Machine is a state-of-the-art system that utilizes both 2D and 3D optical inspection methods to ensure the highest level of accuracy and precision. Equipped with an intuitive GUI software, it allows for easy operation and control. With an inspection speed of up to 1000mm/s, it is capable of delivering fast and reliable results. The machine is powered by an AC 100-240V, 50/60Hz power supply and weighs 500kg.
| Inspection Area | Up to 610mm x 460mm |
| Dimensions | W1000mmxD1380mmxH1600mm |
| Inspection Speed | Up to 1000mm/s |
| Power Supply | AC 100-240V, 50/60Hz |
| Weight | 500kg |
| Camera Type | High-resolution CCD |
| Connectivity | Ethernet, USB |
| Programming | Easy-to-use Drag and Drop |
| Resolution | 5um |
| Lighting Type | LED |
The Mento 3D Automated Optical Inspection Machine is used for inspecting the surface of printed circuit boards, electronic components, and other SMT components. This product is perfect for use in a wide range of industries that require precise inspection of electronic components, including the automotive, aerospace, and medical industries.
The programming of this machine is easy-to-use and features a drag and drop interface. This allows users to quickly and easily program the machine to inspect different types of components. The inspection speed of this machine is up to 1000mm/s, making it a highly efficient and effective tool for inspecting large batches of components.
The Mento 3D Automated Optical Inspection Machine has a weight of 500kg, which makes it easy to transport and move around a production facility. This machine is perfect for use in a variety of settings, including small-scale manufacturing facilities, large-scale production facilities, and research and development laboratories.
Overall, the Mento 3D Automated Optical Inspection Machine is an excellent choice for those looking for a high-quality, reliable, and efficient SMT inspection equipment. If you're interested in purchasing this product, please contact our sales team to learn more about the automated optical inspection machine price and to place an order.
Upgrade to the 3D Automated Optical Inspection Machine for even more precise inspections.
Our Automated Optical Inspection Machine product is designed to provide high-quality inspection and testing services for electronic components and assemblies. It is equipped with advanced imaging and analysis technology that allows for accurate and reliable defect detection, including solder joint inspection, component measurement, and surface inspection.
To ensure optimal performance and uptime, we offer a range of technical support and services for our Automated Optical Inspection Machine product, including:
Our team of experienced technicians and support staff are committed to providing timely and efficient service to our customers, helping to minimize downtime and maximize productivity. Contact us today to learn more about our Automated Optical Inspection Machine product and the technical support and services we offer.
Product Packaging:
The Automated Optical Inspection Machine is carefully packed in a sturdy cardboard box to ensure safe transportation. The machine is wrapped in protective foam and packed with other necessary components such as cables and user manuals.
Shipping:
We offer worldwide shipping for the Automated Optical Inspection Machine. Shipping costs may vary depending on the destination and shipping method selected. We ensure timely delivery of the product to our customers and provide tracking information to keep them updated on the delivery status.
Q: What is the brand name of this Automated Optical Inspection Machine?
A: The brand name of the machine is Mento.
Q: Where is the place of origin for this machine?
A: The machine is made in Dongguan, China.
Q: Does this machine come with any certifications?
A: Yes, the machine is certified with ISO9001/ISO14001.
Q: What is the minimum order quantity for this machine?
A: The minimum order quantity for this machine is 1.
Q: Is the price of this machine negotiable?
A: Yes, the price of the machine is negotiable.
Q: How long will it take to receive the machine?
A: The delivery time for the machine is 3week.
Q: What are the payment terms for this machine?
A: The payment terms for the machine are online.
Q: What is the supply ability of this machine?
A: The supply ability of the machine is 1000/month.
