Product Details
Place of Origin: China dongguan
Brand Name: Mento
Certification: ISO9001/ISO14001
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 1 week
Payment Terms: on line
Supply Ability: 1000/month
Dimensions: |
1200mm X 1000mm X 1500mm |
Camera Type: |
High-resolution CCD |
Power Supply: |
AC 100-240V, 50/60Hz |
Resolution: |
5um |
Programming: |
Easy-to-use Drag And Drop |
Software: |
Intuitive GUI |
Weight: |
500kg |
Inspection Speed: |
Up To 1000mm/s |
Dimensions: |
1200mm X 1000mm X 1500mm |
Camera Type: |
High-resolution CCD |
Power Supply: |
AC 100-240V, 50/60Hz |
Resolution: |
5um |
Programming: |
Easy-to-use Drag And Drop |
Software: |
Intuitive GUI |
Weight: |
500kg |
Inspection Speed: |
Up To 1000mm/s |
| 3D Solder Paste Inspection | ||
| Device model | K3212 | |
| Detection capacity | Detection items | Miss print, over solder, insufficient solder, solder bridging, solder paste tailing, shape anomany, offset |
| Scanning method | Stop&Go | |
| Optical system | Camera | 12MP high-speed color industrial camera |
| Light Source | Dual DLP light source (raster phase shift technology) and red, green and blue (RGB) light source | |
| Resolution | 10μm & 15um (optional) | |
| Detection performance | Height accuracy (calibration module) | 1μm (using standard calibration block) |
| Volume repeatability | <1% (standard verification block, 3Sigma) | |
| Maximum Plate Bending Compensation Value | ±3mm | |
| Detection Capability GRR | <10%at6o(+50%tolerance, 5μm resolution) | |
| Maximum detection height | 500μm | |
| Solution to shadow problem | Phase shift technology & bidirectional 3D Structured Light system | |
| Plate bending real-time compensation method | Plate Bend Compensation (Z-Tracking+Pad Referencing) | |
| Test screen | Color (3D and 2D images displayed together) | |
| Driving equipment | Servomotor+Screw Guide | |
| Moving speed | 800mm/s | |
| Minimum measurable product size | 50mmx50mm | |
| Maximum product measurable size | 400mmx500mm | |
| PCB thickness | 0.5~6mm | |
| Track width adjustment | Automatic width adjustment, manual width adjustment | |
| Circuit board conveying/fixing | Belt conveyor/pneumatic clamp fixing | |
| Conveying direction | From left to right, right to left | |
| Orbital height | 900±20mm | |
| Computer Configuration | Mainframe | CPU: Intel i5, RAM: DDR4-16G, GPU: GTX1660-6GB, SSD:250G, HDD: 2T |
| Monitor | 22"LED | |
| Operating system | Ubuntu | |
| Parameters | Overall size | W1350xD1000xH1600mm (excluding alarm light) |
| Weight | 1100KG | |
| Power source | AC220V/50~60Hz/2000W | |
| Air Pressure | 0.5Mpa | |
| Software Supported Input Formats | Support Gerber format (274X), ODB++ | |
| Statistical management tools |
Histogram,X-bar&R -Chart ,X-bar&S -C hart ,C p&C pk, %Gage R & R,SPI Daily/Weekly/Monthly Reports, real-time SPC& Multiple Display |
|
| Environmental requirements | Temperature: 5~40℃, relative humidity: 25%~80% (no frost) | |
| Upstream and downstream equipment communication | Standard SMEMA interface | |
Our Automated Optical Inspection Machine offers state-of-the-art optical inspection methods to ensure your products meet the highest standards of quality. With its easy-to-use Drag And Drop programming, you can quickly set up and run inspections with confidence. The machine is Windows-based and comes with Ethernet and USB connectivity options. The high-resolution CCD camera ensures accurate and detailed inspections. Contact us today to learn more about the automated optical inspection machine price and how it can benefit your production process.
| Resolution | 5um |
| Inspection Speed | Up To 1000mm/s |
| Programming | Easy-to-use Drag And Drop |
| Lighting Type | LED |
| Connectivity | Ethernet, USB |
| Camera Type | High-resolution CCD |
| Power Supply | AC 100-240V, 50/60Hz |
| Operating System | Windows |
| Software | Intuitive GUI |
| Inspection Type | 2D And 3D |

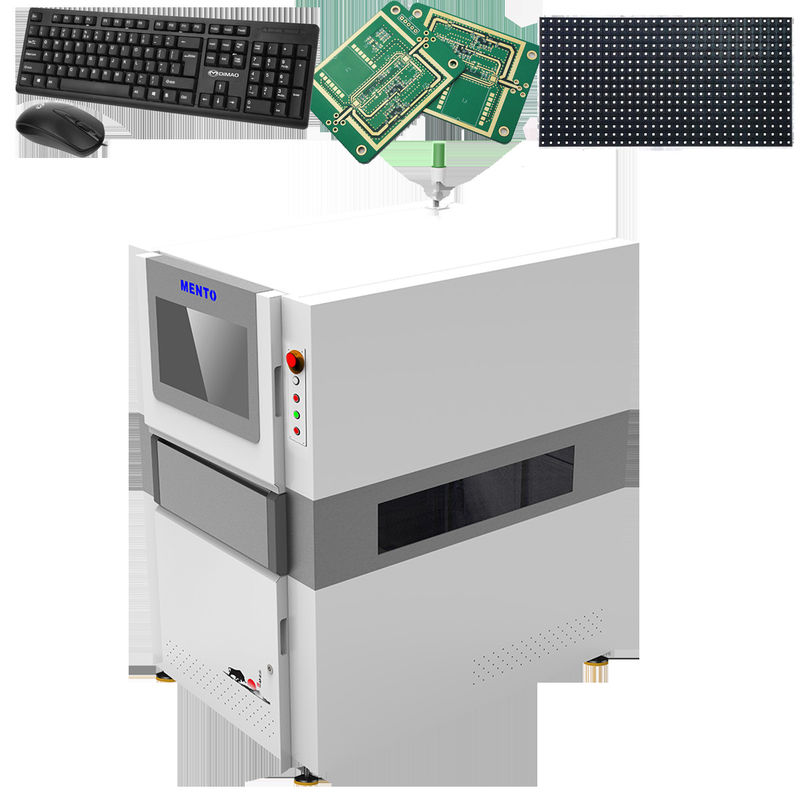

The Mento Automated Optical Inspection Machine is perfect for PCB inspection machine and SMT inspection equipment. It is designed to quickly and accurately inspect printed circuit boards for defects and errors. This machine is suitable for use in a variety of industries, including electronics manufacturing, automotive, aerospace, and medical device manufacturing.
The Mento Automated Optical Inspection Machine uses advanced optical inspection methods, including 2D and 3D inspection, to detect defects and errors on printed circuit boards. It has a high resolution of 5um, ensuring that even the smallest defects and errors are detected. The machine is equipped with LED lighting, which provides optimal illumination for inspection.
The Mento Automated Optical Inspection Machine is easy to program using the drag and drop feature. This makes it easy for operators to set up and use the machine, reducing the risk of errors and improving efficiency. The machine is powered by AC 100-240V, 50/60Hz, making it suitable for use in a variety of locations.
The Mento Automated Optical Inspection Machine is ideal for use in a variety of situations, including high-volume PCB inspection, low-volume PCB inspection, and prototyping. It is also suitable for use in research and development projects, as well as in quality control and testing applications.
The AOI Automated Optical Inspection Machine is equipped with LED lighting and operates on an AC 100-240V, 50/60Hz power supply. It runs on the Windows operating system and can inspect at speeds of up to 1000mm/s. The machine weighs 500kg and uses optical inspection methods to ensure the highest quality of inspection results.
The Automated Optical Inspection Machine product is designed to provide high-quality inspection of printed circuit boards (PCBs). Our technical support and services team is dedicated to ensuring that our customers receive the best possible assistance when using our product.
We offer a range of technical support services including remote assistance, onsite support, and training programs to help our customers get the most out of their Automated Optical Inspection Machine. Our team of experts is highly skilled in troubleshooting and resolving any issues that may arise with the product.
In addition to technical support, we also provide a comprehensive range of services such as installation, maintenance, and repair. Our goal is to ensure that our customers have access to the highest quality support and services, so they can focus on their core business operations.
If you encounter any issues with your Automated Optical Inspection Machine, please do not hesitate to contact our technical support team. We are always here to assist you.
Product Packaging:
The Automated Optical Inspection Machine will be securely packaged in a wooden crate to ensure safe transport and delivery. The crate will be designed to protect the machine from any potential damage during shipping.
Shipping:
We offer worldwide shipping for the Automated Optical Inspection Machine. The shipping cost will vary depending on the destination and delivery method selected by the customer. We will provide a tracking number once the machine has been shipped to allow customers to track the delivery status of their order.
Q: What is the brand name of the Automated Optical Inspection Machine?
A: The brand name of the Automated Optical Inspection Machine is Mento.
Q: Where is the Automated Optical Inspection Machine made?
A: The Automated Optical Inspection Machine is made in China Dongguan.
Q: Does the Automated Optical Inspection Machine have any certifications?
A: Yes, the Automated Optical Inspection Machine is certified with ISO9001/ISO14001.
Q: What is the minimum order quantity for the Automated Optical Inspection Machine?
A: The minimum order quantity for the Automated Optical Inspection Machine is 1.
Q: What payment terms are accepted for the Automated Optical Inspection Machine?
A: The Automated Optical Inspection Machine accepts online payment terms.
Q: What is the delivery time for the Automated Optical Inspection Machine?
A: The delivery time for the Automated Optical Inspection Machine is 3 week.
Q: What is the supply ability of the Automated Optical Inspection Machine?
A: The supply ability of the Automated Optical Inspection Machine is 1000 per month.
Q: Is the price of the Automated Optical Inspection Machine negotiable?
A: Yes, the price of the Automated Optical Inspection Machine is negotiable.
