Product Details
Place of Origin: China dongguan
Brand Name: Mento
Certification: ISO9001/ISO14001
Model Number: M2020
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: W1000mmxD1380mmxH1600mm(without foot 100±20mm)
Delivery Time: 3 week
Payment Terms: on line, L/C, T/T
Supply Ability: 1000/month
Software: |
Intuitive GUI |
Inspection Speed: |
Up To 1000mm/s |
Operating System: |
Windows |
Dimensions: |
1200mm X 1000mm X 1500mm |
Inspection Type: |
2D And 3D |
Power Supply: |
AC 100-240V, 50/60Hz |
Connectivity: |
Ethernet, USB |
Software: |
Intuitive GUI |
Inspection Speed: |
Up To 1000mm/s |
Operating System: |
Windows |
Dimensions: |
1200mm X 1000mm X 1500mm |
Inspection Type: |
2D And 3D |
Power Supply: |
AC 100-240V, 50/60Hz |
Connectivity: |
Ethernet, USB |
| Model | M20 Series Mini LED appearance inspection M2020 | |
| Inspection | Inspection items | Missed bonding, wrong bonding, die damaged, die offset, die tilted, die flipped, wrong polarity, particles, die lift-off, poor collinearity |
| Inspection method | Image processing, machine learning | |
| Optical System | Camera | 20MP |
| Lens | High resolution bi-telecentric lens | |
| Resolution | 4μm(2.4μm~10μm optional)RGB(Customisable) | |
| Light Source | RGB customizable | |
| Efficiency | Stop then go:3FOV/s | |
| Computer Configuration | PC | CPU:Inteli7, RAM:DDR4-32G, GPU:GTX1660-6GB SSD:250G, HDD:2T |
| Monitor | 22 "LED | |
| Operating System | Ubuntu | |
| Inspection Performance | PCB Thickness | 1~5mm |
| Maximum allowable component height | Upper 20mm, Lower 30mm(Customizable) | |
| Driver | Servo motor+Screw guide | |
| Movement speed | Max:600mm/s | |
| PCB fixture height | 900+20mm(from floor to fixture surface) | |
| Parameters | PCB size | Max:600mmx500mm(single track, track width adjustable) |
| Power | AC220W50Hz2000W | |
| Dimensions | W1350xD1000xH1650mm(without alarm light) | |
| Weight | ≈1100KG | |
| Air Pressure Requirement | ≥0.5Mpa | |
| Environmental requirements | Temperature:5~40℃, RH 25%~80%(no frost) | |
| Upstream and downstream equipment communication | Standard SMEMA interface / data communication with die bonder | |

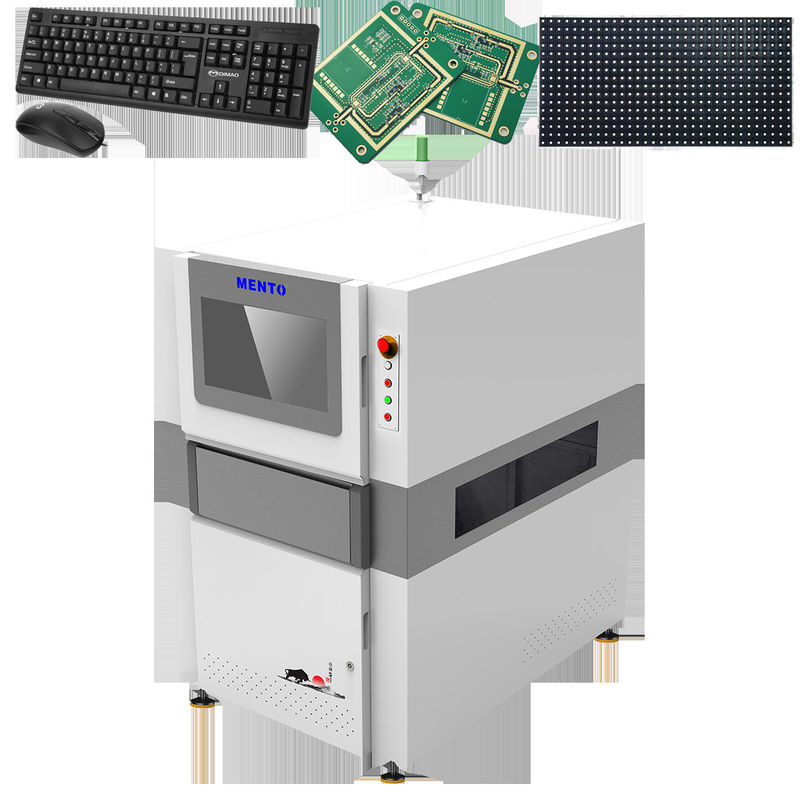

Equipped with a high-resolution CCD camera, this machine can capture even the smallest details of the inspected components with a resolution of 5um. The camera type ensures that the images captured are of high clarity and quality, providing accurate and reliable results.
The Automated Optical Inspection Machine is also designed with an intuitive GUI software that enables easy and efficient operation. The software is user-friendly and can be easily navigated even by those with minimal experience in using similar machines. The GUI makes it easy to customize and adjust inspection settings based on specific needs and requirements.
The Automated Optical Inspection Machine is an essential tool for electronic manufacturers, as it ensures that every component produced is of high quality and meets the required standards. With this machine, manufacturers can avoid costly errors that could lead to product recalls and reputational damage. The machine is highly efficient, reducing inspection time and improving productivity.
Looking for a reliable and efficient PCB inspection machine? Check out our Automated Optical Inspection Machine! With its easy-to-use drag and drop programming, you can set up inspections quickly and easily. The machine boasts an impressive inspection speed of up to 1000mm/s, ensuring fast and accurate results every time. It is compatible with Windows operating systems and can inspect an area up to 610mm x 460mm. The intuitive GUI software makes it easy to operate and interpret the results. Contact us today to learn more about the automated optical inspection machine price and how it can help improve your production process!
| Parameter | Value |
|---|---|
| Product | Automated Optical Inspection Machine |
| Dimensions | W1000mmxD1380mmxH1600mm |
| Weight | 500kg |
| Programming | Easy-to-use Drag And Drop |
| Connectivity | Ethernet, USB |
| Power Supply | AC 100-240V, 50/60Hz |
| Resolution | 5um |
| Lighting Type | LED |
| Software | Intuitive GUI |
| Inspection Type | 2D And 3D |
| Camera Type | High-resolution CCD |
This is an example of smt inspection equipment that uses optical inspection methods for the automated inspection of printed circuit boards. The machine is equipped with high-resolution CCD cameras, LED lighting, and an intuitive GUI software that makes programming and operation easy. The machine is also designed with Ethernet and USB connectivity options, and a power supply that supports AC 100-240V, 50/60Hz. The machine has a resolution of 5um and supports both 2D and 3D inspection types.
The Automated Optical Inspection Machine is an essential tool for electronics manufacturers, PCB assemblers, and contract manufacturers, who require a high level of accuracy and speed in their quality control process. This machine is ideal for inspecting SMT components, solder joints, and PCBs, and has an inspection area of up to 610mm x 460mm, making it suitable for a wide range of applications.
The Mento Automated Optical Inspection Machine is priced competitively and is available for negotiation, making it an affordable option for manufacturers of all sizes. With a delivery time of just one week, the Mento team is committed to meeting the needs of its customers in a timely and efficient manner.
This machine is equipped with LED lighting, which provides bright and clear illumination, allowing for high-resolution inspections. The machine dimensions are 1200mm x 1000mm x 1500mm, and it requires AC 100-240V, 50/60Hz power supply. The machine is easy to connect to Ethernet and USB, which makes it easy to integrate into any production line.
The Mento Automated Optical Inspection Machine has a supply ability of 1000/month, and a minimum order quantity of just 1. With its advanced features and high-quality construction, this machine is a must-have for any electronics manufacturer looking to improve their quality control process.
The Automated Optical Inspection Machine is ideal for various product application occasions and scenarios, such as:
The Mento Automated Optical Inspection Machine is an essential tool for any manufacturer looking to improve their quality control process. With its advanced features, high-quality construction, and competitive automated optical inspection machine price, this machine is a valuable investment that will pay off in improved efficiency and accuracy.
The Automated Optical Inspection Machine is a high-tech product that requires technical support and services to ensure optimal performance. Our team of experts provides the following services:
Our goal is to ensure that our customers receive the best possible support and services to maximize the efficiency and effectiveness of the Automated Optical Inspection Machine.
Product Packaging:
The Automated Optical Inspection Machine will be packed securely in a wooden crate to ensure its safety during transportation. The crate will be labeled with the product name, model number, and shipping information.
Shipping:
The product will be shipped via a reliable courier service to the customer's desired location. The shipping cost will be calculated based on the destination and added to the final invoice. The estimated delivery time will be provided to the customer upon confirmation of the order.
Q: What is the brand name of the Automated Optical Inspection Machine?
A: The brand name of the Automated Optical Inspection Machine is Mento.
Q: Where is the Automated Optical Inspection Machine manufactured?
A: The Automated Optical Inspection Machine is manufactured in China Dongguan.
Q: Is the Automated Optical Inspection Machine certified?
A: Yes, the Automated Optical Inspection Machine is certified with ISO9001/ISO14001.
Q: What is the minimum order quantity for the Automated Optical Inspection Machine?
A: The minimum order quantity for the Automated Optical Inspection Machine is 1.
Q: What is the price of the Automated Optical Inspection Machine?
A: The price of the Automated Optical Inspection Machine is negotiable.
Q: How long does it take for the Automated Optical Inspection Machine to be delivered?
A: The delivery time for the Automated Optical Inspection Machine is 1 week.
Q: What are the payment terms for the Automated Optical Inspection Machine?
A: The payment terms for the Automated Optical Inspection Machine are on line.
Q: What is the supply ability of the Automated Optical Inspection Machine?
A: The supply ability of the Automated Optical Inspection Machine is 1000/month.
