Dongguan MENTO Intelligent Technology Co., Ltd. info@mento-mv.com 00-86-13410031559
Product Details
Place of Origin: DONGGUAN
Brand Name: MENTO
Certification: FCC.ROHS,CCC
Model Number: M2012
Payment & Shipping Terms
Minimum Order Quantity: 3
Packaging Details: W1350xD1000xH1600mm
Delivery Time: 20 work days
Supply Ability: 10pcs+20 work days
Inspection Speed: |
Up To 25 Cm²/s |
Operating System: |
Windows |
Type: |
Automated Optical Inspection |
Camera Type: |
High-Resolution CCD |
Model: |
Tester |
Resolution: |
10 μm |
Lighting: |
LED |
Software: |
Intuitive GUI |
Inspection Speed: |
Up To 25 Cm²/s |
Operating System: |
Windows |
Type: |
Automated Optical Inspection |
Camera Type: |
High-Resolution CCD |
Model: |
Tester |
Resolution: |
10 μm |
Lighting: |
LED |
Software: |
Intuitive GUI |

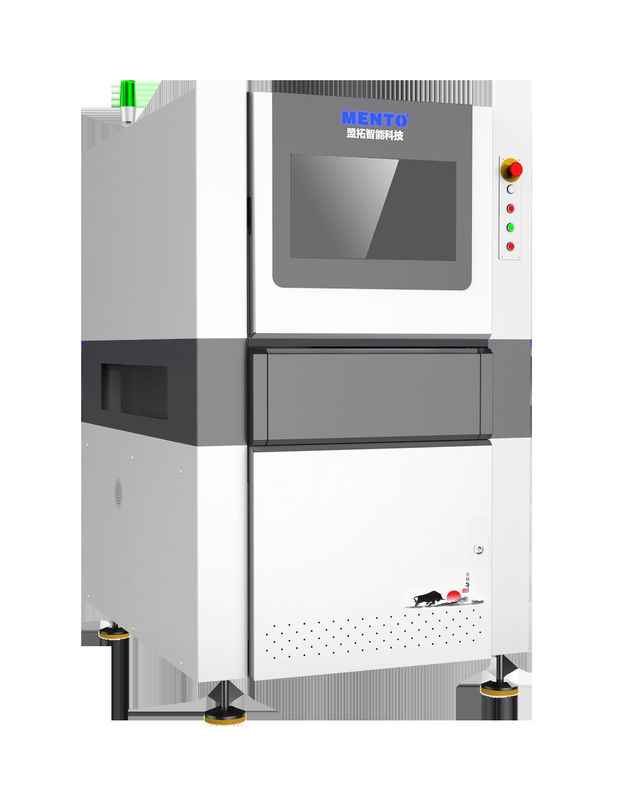

M20 Series Mini LED appearance inspection
| Model | M2012 | |
| Inspection | Inspection items | Missed bonding, wrong bonding, die damaged, die offset, die tilted, die flipped, wrong polarity, particles, die lift-off, poor collinearity |
| Inspection method | Image processing, machine learning | |
| Optical System | Camera | 12MP |
| Lens | High resolution bi-telecentric lens | |
| Resolution | 4μm(2.4μm~10μm optional)RGB(Customisable) | |
| Light Source | RGB customizable | |
| Efficiency | Flying shoot:10FOV/s | |
| Computer Configuration | PC | CPU:Inteli7, RAM:DDR4-32G, GPU:GTX1660-6GB SSD:250G, HDD:2T |
| Monitor | 22 "LED | |
| Operating System | Ubuntu | |
| Inspection Performance | PCB Thickness | 1~5mm |
| Maximum allowable component height | Upper 20mm, Lower 30mm(Customizable) | |
| Driver | Servo motor+Screw guide | |
| Movement speed | Max:600mm/s | |
| PCB fixture height | 900+20mm(from floor to fixture surface) | |
| Parameters | PCB size | Max:600mmx500mm(single track, track width adjustable) |
| Power | AC220W50Hz2000W | |
| Dimensions | W1350xD1000xH1650mm(without alarm light) | |
| Weight | ≈1100KG | |
| Air Pressure Requirement | ≥0.5Mpa | |
| Environmental requirements | Temperature:5~40℃, RH 25%~80%(no frost) | |
| Upstream and downstream equipment communication | Standard SMEMA interface / data communication with die bonder | |
Pad measurement/Pad inspection /Solder paste printer/SPI/Die bonder/Pre-reflow AOI/
Reflow oven/Post-reflow AOI /Luminescence inspection/Colloid inspection/Laser Marker/Rework
Scientific platform design
Ultra-high precision global calibration technology ensures the accurate measurement of component displacement, tilt, and collinearity anomalies, and further yields quantitative results.
Micron-level Motion Control Capability
Closed-loop control system ensures position accuracy of 1um.
Electronic IO control
Long service life, stable and noiseless: LED light status indication.
Offset value output Angle value output
Collinearity detection (collinearity, absolute distance, collinearity range, right spacing)
Vision system
Industrial camera
High Precision High Frame Rate Industrial Camera.
Telecentric optical system
High depth of field, low distortion, full pixels, fixed resolution design.
Constant current light source controller
The fully closed-loop constant current digital controller ensures the stability and uniformity of light source brightness.
Image preprocessing (IPE)
A variety of image preprocessing, supporting customized IPE (composed of operator .()+-*/| and IPE expression),
which can better highlight image features.
