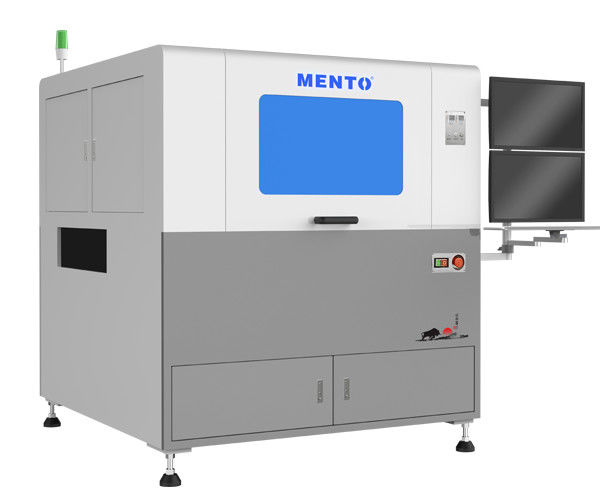

Fully Automated Optical Inspection Machine AOI Equipment For Printed Circuit board

Product Details

Place of Origin: DONGGUAN

Brand Name: MENTO

Certification: FCC.ROHS,CCC

Model Number: RD30L

Payment & Shipping Terms

Minimum Order Quantity: 1

Delivery Time: 30work days

Supply Ability: 10pcs+30 work days

Get Best Price
Product Details
Highlight:

Automated Optical Inspection Machine

,

Circuit Board Automated Optical Inspection Machine

,

Automated printed circuit inspection equipment

Dimensions:
1200mm X 1000mm X 1500mm
Lighting System:
LED
Type:
Automated Optical Inspection
Power Supply:
AC 100-240V, 50/60Hz
Operating System:
Windows
Resolution:
10μm
Software:
AOI Software
Dimensions:
1200mm X 1000mm X 1500mm
Lighting System:
LED
Type:
Automated Optical Inspection
Power Supply:
AC 100-240V, 50/60Hz
Operating System:
Windows
Resolution:
10μm
Software:
AOI Software
Product Description





Model RD30K
Basic Function Function Defective die removing, residues cleaning, solder paste/adhesive printing, die bonding, solder curing, luminescence inspection
Wafer size 3x5mil-20x20mil
Substrate compatibility FR-4, BT substrate, glass substrate, FPC, etc.
Maximum board size 380mmx280mm
Removing Removing,method Physical
Residue cleaning Direct removal + heating suction
Height measurement Laser measurement 0.001mm
Printing Motion XYZ (linear way)
Adhesive compatibility Solder Paste, Flux
Chip correction Correction method Rotation
Correction angle accuracy ±2°
Mounting Mounting head Surface suction
Mounting strength 25g-210g
Mounting accuracy ±10μm
Curing Curing method Laser, heat curing
Inspection Inspection items R, G, B luminescence inspection
Chip table Accuracy ±0.3 mil
Re-measurement accuracy ±0.2 mil
Die attach film size 6"
Number of die attach films 4PCS
Ejector stroke 2mm(max)
Specification UPH ≤30s/pc
Power 220V±10V,50Hz,5KW
Dimensions W1300xD1600xH1650mm
Weight 1500KG





Fully Automated Optical Inspection Machine AOI Equipment For Printed Circuit board 0

Pad measurement/Pad inspection /Solder paste printer/SPI/Die bonder/Pre-reflow AOI/Reflow oven/Post-reflow AOI /

Luminescence in spection/Colloid inspection/Laser Marker/Rework



Fully Automated Optical Inspection Machine AOI Equipment For Printed Circuit board 1



Multiple die attach films system enables fast processing and RGB chips switching.

The transmission fixture table adopts bilateral clamping to avoid manual line change and has strong versatility.

Dual worktables enable non-stop, cyclic work.

Height measurement module.
