Product Details
Place of Origin: Dongguan,China
Brand Name: MENTO
Certification: FCC.ROHS,CCC
Model Number: K2005D
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: W1000mmxD1380mmxH1600mm(without foot 100±20mm)
Delivery Time: 3Weeks
Payment Terms: T/T,
Supply Ability: 1000PCS/M
Lighting Method: |
LED |
Quality: |
Top Qualiy |
Camera: |
12MP, Color |
Dimensions: |
1200 X 1200 X 1600 Mm |
Package: |
Wooden Case |
Industrial Camera: |
Standard 5 Million Global Exposure Industrial Color Camera |
Lead Time: |
1 To 5 Working Days |
Inspection Area: |
Up To 460 X 610 Mm |
Lighting Method: |
LED |
Quality: |
Top Qualiy |
Camera: |
12MP, Color |
Dimensions: |
1200 X 1200 X 1600 Mm |
Package: |
Wooden Case |
Industrial Camera: |
Standard 5 Million Global Exposure Industrial Color Camera |
Lead Time: |
1 To 5 Working Days |
Inspection Area: |
Up To 460 X 610 Mm |
Online AOI features
1. High cost performance
2. Standard 5 million global exposure industrial color camera
3. The first company in China to use large-diameter telecentric lenses (can be targeted at products)
4. Independently developed optical system (light source consistency)
5. High stability integrated casting platform
Application scope: solder joint and mounted device inspection
| Device model | K2012DW | |
| Detection capacity | Detection items | CHIP component body, CHIP component solder joints, characters, DIP solder joints |
| Smallest component | CHIP:0201 Pitch:0.3mm | |
| Detection method | Algorithm parameter debugging, machine learning | |
| Optical system | Camera | 12MP high-speed color industrial camera |
| Telecentric lens | 0.23X | |
| Resolution | 15um | |
| FOV | 60x45mm | |
| Detection speed | 3FOV/s | |
| Software system | Operating system | Windows 10 |
| Mechanical property | PCB Thickness | 0.3~10mm(warpage≤5mm) |
| Component Height | 180mm upper, 30mm lower (special height can be customized) | |
| Driving equipment | Servo motor + ball screw + linear slide | |
| Moving speed | Max.600mm/s | |
| Positioning accuracy | ≤8um(after calibration) | |
| PCB transport rail | PCB rail transportation height: 900±20mm (from the ground to the PCB guide rail transportation surface) | |
| PCB maximum size: 510mmx460mm | ||
| PCB minimum spacing: ≤90mm | ||
| Parameters | Power source | AC220V/50Hz/2000W |
| Overall size | W1140mmxD1400mmxH1600mm (excluding foot 100±20mm) | |
| Weight | ≈700KG | |
| Air Pressure | ≥0.5MPa | |
| Environmental requirements | Temperature: 5~40℃, relative humidity 25%~80% (no frost) | |
| Upstream and downstream equipment communication | Standard SMEMA interface | |

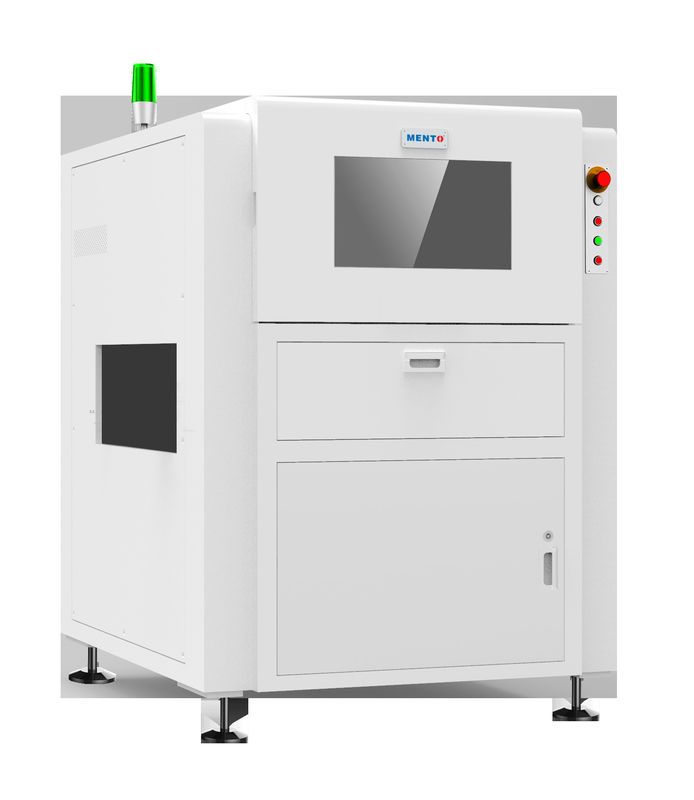

The SMT AOI Machine is a sophisticated system that incorporates a 12MP color camera for capturing high-resolution images. This camera is capable of capturing images at a high frame rate, which allows for quick and accurate inspection of PCBs. The images captured by the camera are then processed by the system's software, which detects any defects or anomalies in the PCBs. This software is highly advanced and can detect a wide range of defects, including soldering defects, component defects, and placement defects.
The SMT AOI Machine is designed to operate with SMEMA standards, which ensures compatibility with other production line equipment. This makes it easy to integrate the machine into existing production lines without any major modifications. The machine is also equipped with LED lighting, which provides bright and uniform illumination for clear and accurate imaging of the PCBs.
The SMT AOI Machine is an essential tool for any electronics manufacturer looking to ensure the quality of their PCBs. With its high-speed, high-precision inspection capabilities and advanced defect-detection software, the machine can significantly improve the efficiency and accuracy of the inspection process. Furthermore, the machine's compatibility with SMEMA standards makes it easy to integrate into existing production lines, reducing the need for costly modifications.
In summary, the SMT AOI Machine is a highly advanced and efficient product designed for SMT Appearance Inspection. Its Independently Developed Optical System, 12MP color camera, SMEMA compatibility, and LED lighting make it an essential tool for any electronics manufacturer looking to ensure the quality of their PCBs. So, if you are looking for a reliable and efficient SMT Appearance Inspection system, the SMT AOI Machine is the perfect choice for you.
This SMT AOI Machine is a high-quality AOI Inspection Equipment that is suitable for PCB AOI and other similar applications. It features a compact design with dimensions of 1200 X 1200 X 1600 Mm, making it easy to fit into any workspace. The machine is built to SMEMA standard and comes with a powerful motor that ensures smooth operation.
The Inspection Area of the machine is up to 460 X 610 Mm, making it suitable for inspecting a wide range of PCBs and other electronic components. The machine also comes with a standard 5 Million Global Exposure Industrial Color Camera, which is ideal for capturing clear and accurate images of the inspected components.
If you're looking for a reliable and efficient AOI Inspection Equipment, this SMT AOI Machine is definitely worth considering. It is easy to use, durable, and comes with all the features you need to ensure accurate and efficient inspections.
| Standard | SMEMA |
| Port | Shenzhen |
| Dimensions | 1200 X 1200 X 1600 Mm |
| Quality | Top Quality |
| Lighting Method | LED |
| Model | AOI |
| Inspection Area | Up To 460 X 610 Mm |
| The Camera | Nine Million Pixels |
| Movement Speed | 800mm/sec |
| Package | Wooden Case |
Our product is certified by FCC, ROHS, ISO9000, and ISO14001, ensuring our customers receive a high-quality product. With a minimum order quantity of 1, our product can be delivered within 3 weeks' time. Payment terms are flexible with T/T being the preferred option. Our supply ability is 1000PCS/M, ensuring our customers have access to our product at all times.
Mento is the first company in China to use large-diameter telecentric lenses in our product. This allows us to provide our customers with accurate and precise results. Our industrial camera is a standard 5 million global exposure industrial color camera. This ensures that our customers receive high-quality images that are true to the original product.
Our product has a port located in Shenzhen, ensuring our customers can easily receive their orders. The camera included in our product has nine million pixels, providing our customers with detailed and accurate results. Our core components are motor-based, ensuring our product is reliable and efficient.
Our AOI optical inspection instrument is suitable for various industrial and manufacturing applications. It can be used for inspecting and testing printed circuit boards, electronic components, and other industrial products. Our product is ideal for industrial automation and is suitable for use in factories, workshops, and laboratories.
Overall, Mento's AOI visual inspection equipment is a reliable and efficient tool for various industrial and manufacturing applications. With high-quality lenses, industrial cameras, and core components, our product is designed to provide accurate and precise results. Contact us today to learn more about our product and how it can benefit your business!
Q: What is the brand name of this AOI machine?
A: The brand name of this AOI machine is MENTO.
Q: Where is this AOI machine made?
A: This AOI machine is made in Dongguan, China.
Q: What certifications does this AOI machine have?
A: This AOI machine is certified by FCC, ROHS, ISO9000, and ISO14001.
Q: What is the minimum order quantity for this AOI machine?
A: The minimum order quantity for this AOI machine is 1.
Q: What is the delivery time for this AOI machine?
A: The delivery time for this AOI machine is 3 weeks.
Q: What are the payment terms for this AOI machine?
A: The payment terms for this AOI machine are T/T.
Q: What is the supply ability for this AOI machine?
A: The supply ability for this AOI machine is 1000PCS/M.
