Dongguan MENTO Intelligent Technology Co., Ltd. info@mento-mv.com 00-86-13410031559
Product Details
Place of Origin: Dongguan,China
Brand Name: MENTO
Certification: FCC,ROHS,ISO9000,ISO14001
Model Number: K3212
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: W1000mmxD1380mmxH1600mm(without foot 100±20mm)
Delivery Time: 3Weeks
Payment Terms: T/T,
Supply Ability: 1000PCS/M
Camera: |
12MP, Color |
Movement Speed: |
800mm/sec |
Warraty: |
3 Month |
Quality: |
Top Qualiy |
Package: |
Wooden Case |
Standard: |
SMEMA |
Industrial Camera: |
Standard 5 Million Global Exposure Industrial Color Camera |
Lead Time: |
1 To 5 Working Days |
Camera: |
12MP, Color |
Movement Speed: |
800mm/sec |
Warraty: |
3 Month |
Quality: |
Top Qualiy |
Package: |
Wooden Case |
Standard: |
SMEMA |
Industrial Camera: |
Standard 5 Million Global Exposure Industrial Color Camera |
Lead Time: |
1 To 5 Working Days |

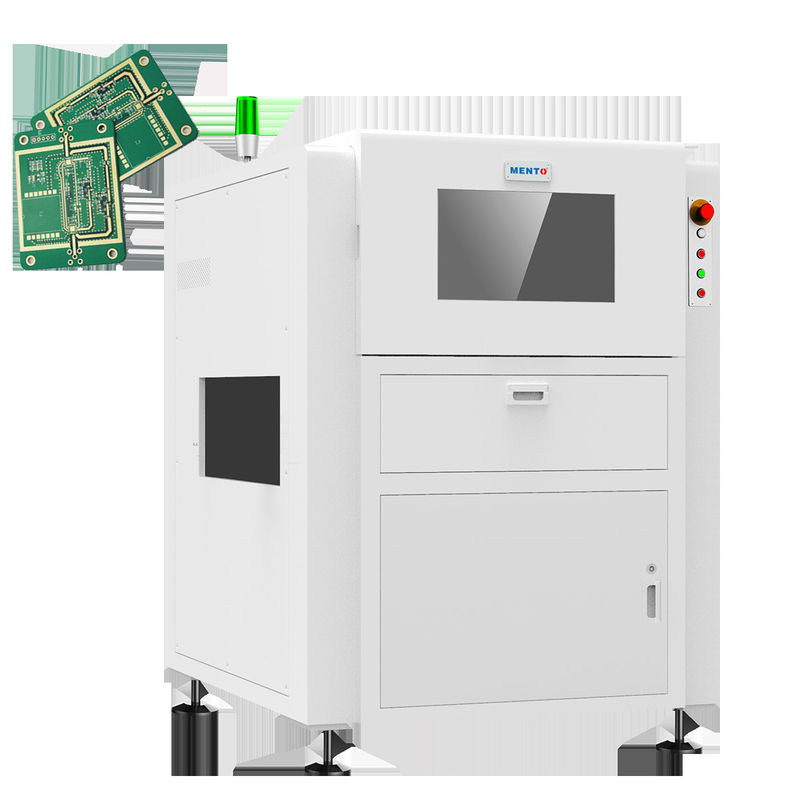

Online AOI features
1. High cost performance
2. Standard 5 million global exposure industrial color camera
3. The first company in China to use large-diameter telecentric lenses (can be targeted at products)
4. Independently developed optical system (light source consistency)
5. High stability integrated casting platform
Application scope: solder joint and mounted device inspection
| Device model | K3212 | |
| Detection capacity | Detection items | Miss print, over solder, insufficient solder, solder bridging, solder paste tailing, shape anomany, offset |
| Scanning method | Stop&Go | |
| Optical system | Camera | 12MP high speed color industrial camera |
| Light Source | Dual DLP light source (raster phase shift technology) and red, green and blue (RGB) light source | |
| Resolution | 10μm & 15um (optional) | |
| Detection performance | Height accuracy (calibration module) | 1μm (using standard calibration block) |
| Volume repeatability | <1% (standard verification block, 3Sigma) | |
| Maximum Plate Bending Compensation Value | ±3mm | |
| Detection Capability GRR | <10%at6o(+50%tolerance, 5μm resolution) | |
| Maximum detection height | 500μm | |
| Solution to shadow problem | Phase shift technology & bidirectional 3D Structured Light system | |
| Plate bending real-time compensation method | Plate Bend Compensation (Z-Tracking+Pad Referencing) | |
| Test screen | Color (3D and 2D images displayed together) | |
| Driving equipment | Servomotor+Screw Guide | |
| Moving speed | 800mm/s | |
| Minimum measurable product size | 50mmx50mm | |
| Maximum product measurable size | 400mmx500mm | |
| PCB thickness | 0.5~6mm | |
| Track width adjustment | Automatic width adjustment, manual width adjustment | |
| Circuit board conveying/fixing | Belt conveyor/pneumatic clamp fixing | |
| Conveying direction | From left to right, right to left | |
| Orbital height | 900±20mm | |
| Computer Configuration | Mainframe | CPU: Intel i5, RAM: DDR4-16G, GPU: GTX1660-6GB, SSD:250G, HDD: 2T |
| Monitor | 22"LED | |
| Operating system | Ubuntu | |
| Parameters | Overall size | W1350xD1000xH1600mm (excluding alarm light) |
| Weight | 1100KG | |
| Power source | AC220V/50~60Hz/2000W | |
| Air Pressure | 0.5Mpa | |
| Software Supported Input Formats | Support Gerber format (274X), ODB++ | |
| Statistical management tools |
Histogram,X-bar&R -Chart ,X-bar&S -C hart ,C p&C pk, %Gage R & R,SPI Daily/Weekly/Monthly Reports, real-time SPC& Multiple Display |
|
| Environmental requirements | Temperature: 5~40℃, relative humidity: 25%~80% (no frost) | |
| Upstream and downstream equipment communication | Standard SMEMA interface | |
The SMT AOI Machine comes equipped with a high-resolution 12MP color camera, which captures images of exceptional quality. This camera can detect even the smallest defects on PCBs, ensuring that every product that leaves the factory meets the highest quality standards.
One of the standout features of this product is our use of large-diameter telecentric lenses, making us the first company in China to do so. These lenses allow for accurate and precise imaging, leading to more accurate detection of defects.
The SMT AOI Machine is also designed for ease of use, with a user-friendly interface that helps operators quickly identify and rectify any issues that may arise during the inspection process. Additionally, the machine's fast movement speed of 800mm/sec ensures that it can keep up with even the fastest assembly lines, improving production efficiency.
Another key feature of the SMT AOI Machine is its LED lighting method. This lighting method provides consistent and reliable lighting, ensuring that the camera can detect defects accurately and consistently. LED lighting is also more energy-efficient and longer-lasting than other lighting methods, reducing maintenance costs over time.
When it comes to packaging, we take no chances. The SMT AOI Machine comes in a sturdy wooden case, ensuring that it arrives at your facility in perfect condition.
In summary, the SMT AOI Machine is a high-quality, reliable, and efficient piece of AOI inspection equipment that can help manufacturers achieve higher quality standards and improve production efficiency. With its superior camera, large-diameter telecentric lenses, fast movement speed, LED lighting method, and user-friendly interface, the SMT AOI Machine is the perfect solution for any manufacturer that values quality and efficiency.
SMT AOI Machine is a high-quality SMT Appearance Inspection equipment that utilizes independently developed optical system and core components such as motor to provide accurate and reliable AOI Visual Inspection. With a user-friendly Windows operating system, this machine is easy to operate and maintain. Additionally, it comes with a 3 month warranty for customer peace of mind.
| Product Attribute | Value |
| Product Name | PCB AOI Machine |
| Quality | Top Quality |
| Core Components | Motor |
| Warranty | 3 Months |
| Operating System | Windows |
| Package | Wooden Case |
| Dimensions | 1200 X 1200 X 1600 Mm |
| Industrial Camera | Standard 5 Million Global Exposure Industrial Color Camera |
| The Camera | Nine Million Pixels |
| Optical System | Independently Developed Optical System |
| Standard | SMEMA |
| Product Description | PCBA Inspection |
The MENTO SMT AOI Machine is a state-of-the-art product that provides automated inspection of Printed Circuit Boards (PCBs). This Automatic Optical Inspection (AOI) machine is designed to perform SMT Appearance Inspection, and ensures that your PCBs meet the highest standards of quality and reliability.
The MENTO SMT AOI Machine is manufactured in Dongguan, China and is certified by FCC, ROHS, ISO9000, and ISO14001. This ensures that the product meets international standards of quality and safety. The minimum order quantity for this product is 1, and it has a supply ability of 1000PCS/M. The delivery time for this product is 3 weeks and the payment terms are T/T. The product is packaged in a wooden case for safe transportation.
The MENTO SMT AOI Machine comes equipped with a high-resolution 12MP color camera that provides clear images of the PCBs. The machine is capable of inspecting an area of up to 460 x 610 mm. The product is shipped from the port of Shenzhen.
The MENTO SMT AOI Machine is ideal for use in a variety of product application occasions and scenarios. It can be used in the production of consumer electronics, automotive electronics, aerospace electronics, medical electronics, and more. The machine is capable of detecting a variety of defects, such as missing components, incorrect polarity, incorrect orientation, wrong values, soldering defects, and more.
This product is essential for manufacturers who want to ensure that their PCBs meet the highest standards of quality and reliability. The MENTO SMT AOI Machine is a cost-effective solution for automating the inspection process and reducing the risk of defects in the final product.
Q: What is the brand name of this AOI machine?
A: The brand name of this AOI machine is MENTO.
Q: Where is this AOI machine manufactured?
A: This AOI machine is manufactured in Dongguan, China.
Q: What certifications does this AOI machine have?
A: This AOI machine has FCC, ROHS, ISO9000, and ISO14001 certifications.
Q: What is the minimum order quantity for this AOI machine?
A: The minimum order quantity for this AOI machine is 1.
Q: What is the delivery time for this AOI machine?
A: The delivery time for this AOI machine is 3 weeks.
Q: What are the payment terms for this AOI machine?
A: The payment terms for this AOI machine are T/T.
Q: What is the supply ability for this AOI machine?
A: The supply ability for this AOI machine is 1000PCS/M.
