Dongguan MENTO Intelligent Technology Co., Ltd. info@mento-mv.com 00-86-13410031559
Product Details
Place of Origin: Dongguan,China
Brand Name: MENTO
Certification: FCC,ROHS,ISO9000,ISO14001
Model Number: K2005DW
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: W1000mmxD1380mmxH1600mm(without foot 100±20mm)
Delivery Time: 3Weeks
Payment Terms: T/T,
Supply Ability: 1000PCS/M
Dimensions: |
1200 X 1200 X 1600 Mm |
Warraty: |
3 Month |
Core Components: |
Motor |
Inspection Area: |
Up To 460 X 610 Mm |
Optical System: |
Independently Developed Optical System |
Port: |
Shenzhen |
Lead Time: |
1 To 5 Working Days |
Standard: |
SMEMA |
Dimensions: |
1200 X 1200 X 1600 Mm |
Warraty: |
3 Month |
Core Components: |
Motor |
Inspection Area: |
Up To 460 X 610 Mm |
Optical System: |
Independently Developed Optical System |
Port: |
Shenzhen |
Lead Time: |
1 To 5 Working Days |
Standard: |
SMEMA |

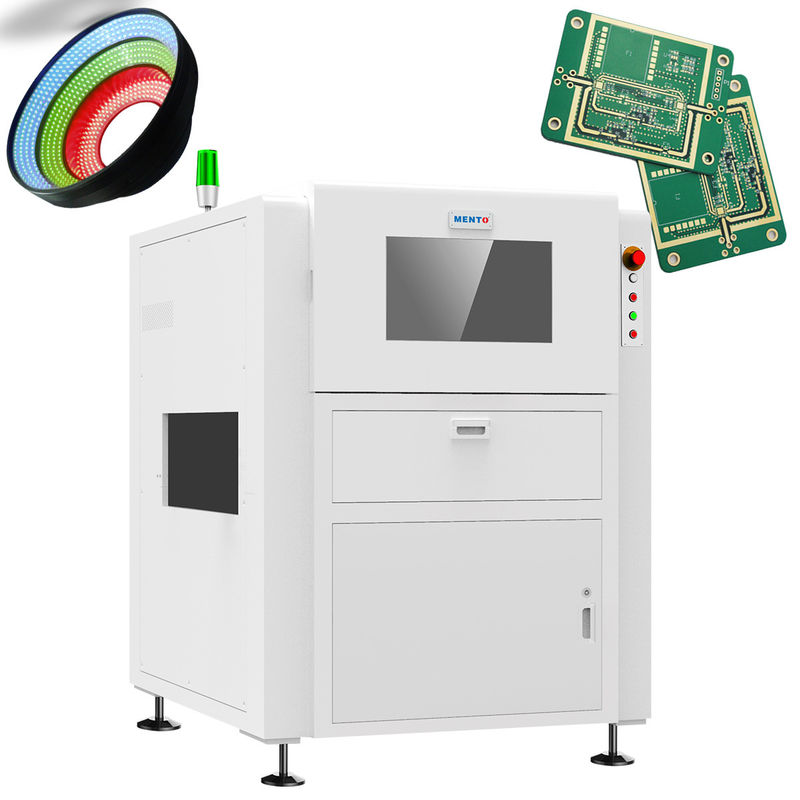

Online AOI features
1. High cost performance
2. Standard 5 million global exposure industrial color camera
3. The first company in China to use large-diameter telecentric lenses (can be targeted at products)
4. Independently developed optical system (light source consistency)
5. High stability integrated casting platform
Application scope: solder joint and mounted device inspection
| Device model | K2005DW | |
| Detection capacity | Detection items | CHIP component body, CHIP component solder joints, characters, DIP solder joints |
| Smallest component | CHIP:0201 Pitch:0.3mm | |
| Detection method | Algorithm parameter debugging, machine learning | |
| Optical system | Camera | 5MP high speed color industrial camera |
| Telecentric lens | 0.22X/0.17X | |
| Resolution | 15um/20um/25um | |
| FOV | 36x30mm/48x40mm/61x51mm | |
| Detection speed | 3FOV/s | |
| Software system | Operating system | Windows 10 |
| Mechanical property | PCB Thickness | 0.3~10mm(warpage≤5mm) |
| Component Height | 180mm upper, 30mm lower (special height can be customized) | |
| Driving equipment | Servo motor + ball screw + linear slide | |
| Moving speed | Max.600mm/s | |
| Positioning accuracy | ≤8um(after calibration) | |
| PCB transport rail | PCB rail transportation height: 900±20mm (from the ground to the PCB guide rail transportation surface) | |
| PCB maximum size: 510mmx460mm | ||
| PCB minimum spacing: ≤90mm | ||
| Parameters | Power source | AC220V/50Hz/2000W |
| Overall size | W1140mmxD1400mmxH1600mm (excluding foot 100±20mm) | |
| Weight | ≈700KG | |
| Air Pressure | ≥0.5MPa | |
| Environmental requirements | Temperature: 5~40℃, relative humidity 25%~80% (no frost) | |
| Upstream and downstream equipment communication | Standard SMEMA interface | |
The SMT AOI Machine is built to operate on a Windows operating system, which makes it easy to use and integrate with other manufacturing systems. It is also designed to meet the SMEMA standard for PCB manufacturing, ensuring that it can be easily integrated into existing production lines. The SMT AOI Machine is a highly efficient and productive machine that can inspect up to 50 PCBs per minute, making it ideal for high-volume production environments.
The SMT AOI Machine is equipped with a high-resolution 12MP color camera that is capable of capturing highly detailed images of the PCBs being inspected. This camera is designed to detect even the smallest defects on the PCBs, including soldering defects, incorrect component placement, and other issues that can affect the functionality of the final product. The camera works in conjunction with the independently developed optical system to ensure that all defects are accurately detected and reported.
The SMT AOI Machine is a reliable and accurate machine that is built to deliver top-quality inspection results. It is designed to be easy to use and integrate into existing production lines, making it an ideal choice for electronics manufacturers looking to improve their quality control processes. With its high-resolution camera, independently developed optical system, and SMEMA standard compliance, the SMT AOI Machine is a must-have for any electronics manufacturer looking to improve their production processes and ensure top-quality products.
The Mento AOI Visual Inspection Equipment is certified by FCC, ROHS, ISO9000, and ISO14001, which is a testament to its safety, quality, and environmental standards. It also has a minimum order quantity of 1, making it accessible to both small and large-scale manufacturers. After the order is placed, the delivery time is usually 3 weeks, with a lead time of 1 to 5 working days.
The camera used in this machine is a 12MP color camera that captures high-quality images of the PCBs. It is equipped with LED lighting, which illuminates the board and highlights any defects present. This lighting method ensures that even the smallest defects are detected.
The Mento AOI Visual Inspection Equipment is ideal for a wide range of applications, including electronics manufacturing, automotive, aviation, and medical industries. This machine is versatile and can be used in various scenarios such as production lines, quality control, and R&D testing.
The product is packed in wooden cases to ensure that it is protected during transportation. It also comes with a 3-month warranty, giving customers peace of mind. The payment terms are T/T, and the supply ability is 1000PCS/M.
Frequently Asked Questions
Q: What is the brand name of the SMT AOI Machine?
A: The brand name of the SMT AOI Machine is MENTO.
Q: Where is the SMT AOI Machine manufactured?
A: The SMT AOI Machine is manufactured in Dongguan, China.
Q: What certifications does the SMT AOI Machine have?
A: The SMT AOI Machine has FCC, ROHS, ISO9000, and ISO14001 certifications.
Q: What is the minimum order quantity for the SMT AOI Machine?
A: The minimum order quantity for the SMT AOI Machine is 1.
Q: What is the delivery time for the SMT AOI Machine?
A: The delivery time for the SMT AOI Machine is 3 weeks.
Q: What are the payment terms for the SMT AOI Machine?
A: The payment terms for the SMT AOI Machine are T/T.
Q: What is the supply ability of the SMT AOI Machine?
A: The supply ability of the SMT AOI Machine is 1000PCS/M.
