Dongguan MENTO Intelligent Technology Co., Ltd. info@mento-mv.com 00-86-13410031559
Product Details
Place of Origin: Dongguan,China
Brand Name: MENTO
Certification: FCC,ROHS,ISO9000,ISO14001
Model Number: K3212
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: W1000mmxD1380mmxH1600mm(without foot 100±20mm)
Delivery Time: 3Weeks
Payment Terms: T/T,
Supply Ability: 1000PCS/M
Movement Speed: |
800mm/sec |
Camera: |
12MP, Color |
Standard: |
SMEMA |
Core Components: |
Motor |
Warraty: |
3 Month |
Operating System: |
Windows |
Dimensions: |
1200 X 1200 X 1600 Mm |
Port: |
Shenzhen |
Movement Speed: |
800mm/sec |
Camera: |
12MP, Color |
Standard: |
SMEMA |
Core Components: |
Motor |
Warraty: |
3 Month |
Operating System: |
Windows |
Dimensions: |
1200 X 1200 X 1600 Mm |
Port: |
Shenzhen |

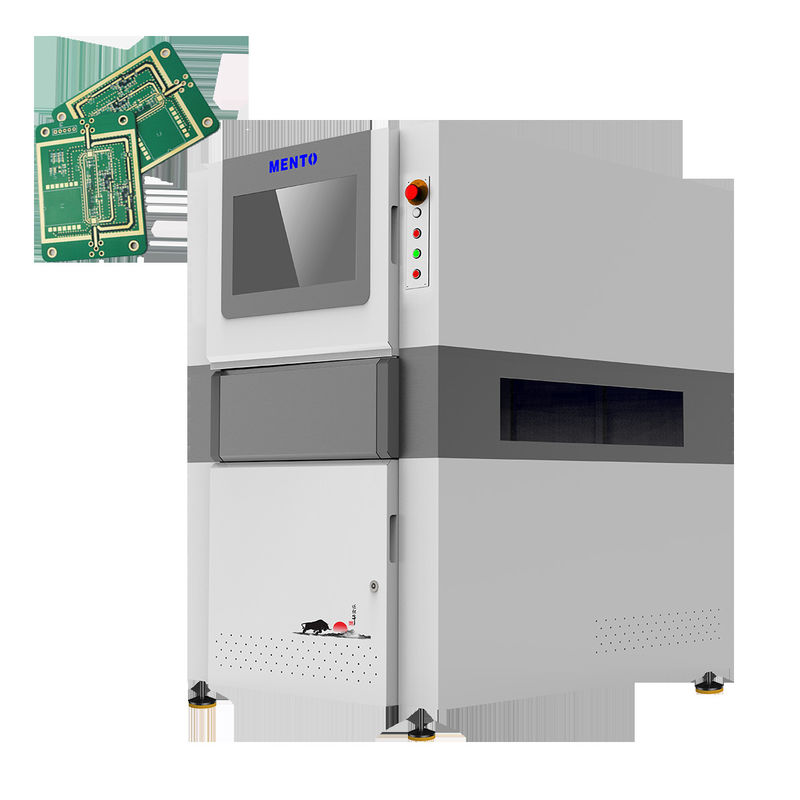

Online AOI features
1. High cost performance
2. Standard 5 million global exposure industrial color camera
3. The first company in China to use large-diameter telecentric lenses (can be targeted at products)
4. Independently developed optical system (light source consistency)
5. High stability integrated casting platform
Application scope: solder joint and mounted device inspection
| Device model | K3212 | |
| Detection capacity | Detection items | Miss print, over solder, insufficient solder, solder bridging, solder paste tailing, shape anomany, offset |
| Scanning method | Stop&Go | |
| Optical system | Camera | 12MP high speed color industrial camera |
| Light Source | Dual DLP light source (raster phase shift technology) and red, green and blue (RGB) light source | |
| Resolution | 10μm & 15um (optional) | |
| Detection performance | Height accuracy (calibration module) | 1μm (using standard calibration block) |
| Volume repeatability | <1% (standard verification block, 3Sigma) | |
| Maximum Plate Bending Compensation Value | ±3mm | |
| Detection Capability GRR | <10%at6o(+50%tolerance, 5μm resolution) | |
| Maximum detection height | 500μm | |
| Solution to shadow problem | Phase shift technology & bidirectional 3D Structured Light system | |
| Plate bending real-time compensation method | Plate Bend Compensation (Z-Tracking+Pad Referencing) | |
| Test screen | Color (3D and 2D images displayed together) | |
| Driving equipment | Servomotor+Screw Guide | |
| Moving speed | 800mm/s | |
| Minimum measurable product size | 50mmx50mm | |
| Maximum product measurable size | 400mmx500mm | |
| PCB thickness | 0.5~6mm | |
| Track width adjustment | Automatic width adjustment, manual width adjustment | |
| Circuit board conveying/fixing | Belt conveyor/pneumatic clamp fixing | |
| Conveying direction | From left to right, right to left | |
| Orbital height | 900±20mm | |
| Computer Configuration | Mainframe | CPU: Intel i5, RAM: DDR4-16G, GPU: GTX1660-6GB, SSD:250G, HDD: 2T |
| Monitor | 22"LED | |
| Operating system | Ubuntu | |
| Parameters | Overall size | W1350xD1000xH1600mm (excluding alarm light) |
| Weight | 1100KG | |
| Power source | AC220V/50~60Hz/2000W | |
| Air Pressure | 0.5Mpa | |
| Software Supported Input Formats | Support Gerber format (274X), ODB++ | |
| Statistical management tools |
Histogram,X-bar&R -Chart ,X-bar&S -C hart ,C p&C pk, %Gage R & R,SPI Daily/Weekly/Monthly Reports, real-time SPC& Multiple Display |
|
| Environmental requirements | Temperature: 5~40℃, relative humidity: 25%~80% (no frost) | |
| Upstream and downstream equipment communication | Standard SMEMA interface | |
The SMT AOI Machine boasts a large inspection area of up to 460 x 610 mm, allowing it to inspect a wide variety of PCB sizes and types. It is capable of inspecting various types of defects such as missing components, wrong polarity, wrong parts, and solder defects. The machine is designed to be easy to use and maintain, making it ideal for both small and large-scale manufacturing operations.
With a warranty of 3 months, you can rely on the SMT AOI Machine to provide you with accurate and efficient inspection results every time. Its advanced software algorithms and high-speed processing capabilities ensure that it can keep up with the demands of modern SMT production lines. Its user-friendly interface allows you to customize the inspection parameters, making it easy to set up and operate.
In summary, the SMT AOI Machine is a powerful and efficient tool for SMT appearance inspection and PCB AOI. Its industrial camera, SMEMA standard, large inspection area, and user-friendly interface make it the perfect choice for manufacturing operations of all sizes. Invest in the SMT AOI Machine today and take your quality control to the next level.
| SMT AOI Machine | AOI Optical Inspection Instrument |
| Movement Speed | 800mm/sec |
| Dimensions | 1200 X 1200 X 1600 Mm |
| Port | Shenzhen |
| The Camera | Nine Million Pixels |
| Lighting Method | LED |
| Lenses | The First Company In China To Use Large-diameter Telecentric Lenses |
| Model | AOI |
| Package | Wooden Case |
| Camera | 12MP, Color |
| Standard | SMEMA |
The SMT AOI machine is an automatic optical inspection instrument that is designed to inspect printed circuit boards (PCBs) during the manufacturing process. It is equipped with nine million pixels cameras, which capture high-resolution images of the PCBs. The first company in China to use large-diameter telecentric lenses, Mento has independently developed an optical system that ensures accurate and reliable inspection results.
The SMT AOI machine is suitable for various application occasions and scenarios. It is ideal for use in electronics manufacturing plants, where it helps to ensure that the PCBs meet the required quality standards. The machine is also suitable for use in research and development laboratories, where it can be used to test and refine new PCB designs.
The SMT AOI machine is supplied in a wooden case, which ensures that it arrives at its destination in good condition. It has dimensions of 1200 x 1200 x 1600 mm, making it compact and easy to move around the factory floor. With a supply ability of 1000 pcs/month, Mento can meet the needs of customers both large and small.
Q: What is the brand name of the SMT AOI Machine?
A: The brand name of the SMT AOI Machine is MENTO.
Q: Where is the SMT AOI Machine manufactured?
A: The SMT AOI Machine is manufactured in Dongguan, China.
Q: What certifications does the SMT AOI Machine have?
A: The SMT AOI Machine is certified by FCC, ROHS, ISO9000, and ISO14001.
Q: What is the minimum order quantity for the SMT AOI Machine?
A: The minimum order quantity for the SMT AOI Machine is 1.
Q: What is the delivery time for the SMT AOI Machine?
A: The delivery time for the SMT AOI Machine is 3 weeks.
Q: What are the payment terms for the SMT AOI Machine?
A: The payment terms for the SMT AOI Machine are T/T.
Q: What is the supply ability for the SMT AOI Machine?
A: The supply ability for the SMT AOI Machine is 1000PCS/M.
