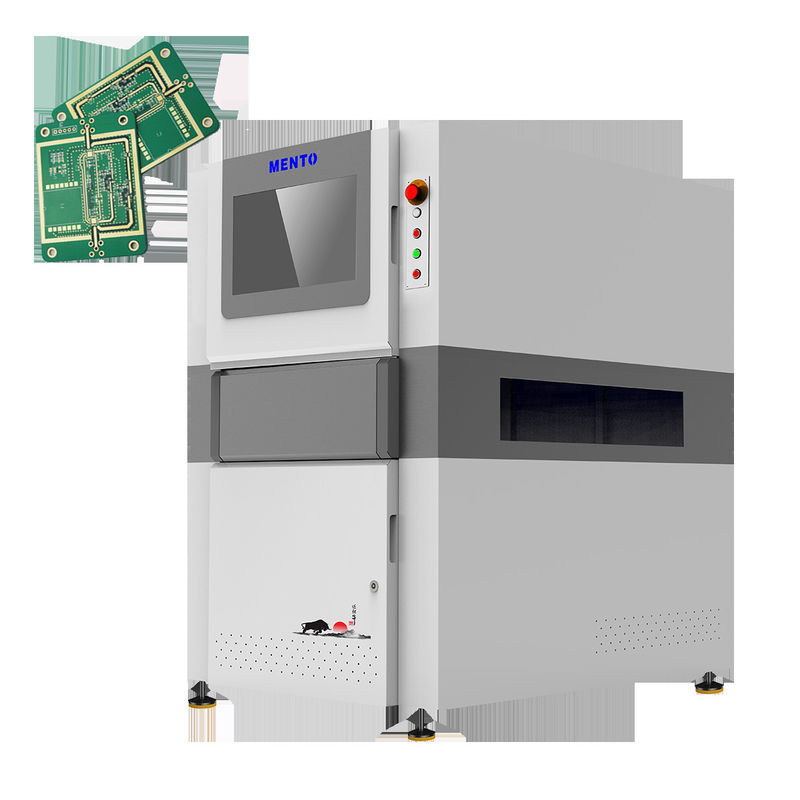

Online AOI features
1. High cost performance
2. Standard 5 million global exposure industrial color camera
3. The first company in China to use large-diameter telecentric lenses (can be targeted at products)
4. Independently developed optical system (light source consistency)
5. High stability integrated casting platform
Application scope: solder joint and mounted device inspection
| Device model | K3205 | |
| Detection capacity | Detection items | Miss print, over solder, insufficient solder, solder bridging, solder paste tailing, shape anomany, offset |
| Scanning method | Stop&Go | |
| Optical system | Camera | 5MP high speed color industrial camera |
| Light Source | Dual DLP light source (raster phase shift technology) and red, green and blue (RGB) light source | |
| Resolution | 10μm & 15um (optional) | |
| Detection performance | Height accuracy (calibration module) | 1μm (using standard calibration block) |
| Volume repeatability | <1% (standard verification block, 3Sigma) | |
| Maximum Plate Bending Compensation Value | ±3mm | |
| Detection Capability GRR | <10%at6o(+50%tolerance, 5μm resolution) | |
| Maximum detection height | 500μm | |
| Solution to shadow problem | Phase shift technology & bidirectional 3D Structured Light system | |
| Plate bending real-time compensation method | Plate Bend Compensation (Z-Tracking+Pad Referencing) | |
| Test screen | Color (3D and 2D images displayed together) | |
| Driving equipment | Servomotor+Screw Guide | |
| Moving speed | 800mm/s | |
| Minimum measurable product size | 50mmx50mm | |
| Maximum product measurable size | 400mmx500mm | |
| PCB thickness | 0.5~6mm | |
| Track width adjustment | Automatic width adjustment, manual width adjustment | |
| Circuit board conveying/fixing | Belt conveyor/pneumatic clamp fixing | |
| Conveying direction | From left to right, right to left | |
| Orbital height | 900±20mm | |
| Computer Configuration | Mainframe | CPU: Intel i5, RAM: DDR4-16G, GPU: GTX1660-6GB, SSD:250G, HDD: 2T |
| Monitor | 22"LED | |
| Operating system | Ubuntu | |
| Parameters | Overall size | W1350xD1000xH1600mm (excluding alarm light) |
| Weight | 1100KG | |
| Power source | AC220V/50~60Hz/2000W | |
| Air Pressure | 0.5Mpa | |
| Software Supported Input Formats | Support Gerber format (274X), ODB++ | |
| Statistical management tools |
Histogram,X-bar&R -Chart ,X-bar&S -C hart ,C p&C pk, %Gage R & R,SPI Daily/Weekly/Monthly Reports, real-time SPC& Multiple Display |
|
| Environmental requirements | Temperature: 5~40℃, relative humidity: 25%~80% (no frost) | |
| Upstream and downstream equipment communication | Standard SMEMA interface | |
Our AOI Visual Inspection Equipment is housed in a sturdy Wooden Case to protect it during transport and storage. The machine comes equipped with our Independently Developed Optical System, which ensures accurate and reliable inspection results every time. Our system is the first in the industry to use Large-diameter Telecentric Lenses, providing enhanced image quality and improved inspection accuracy.
The SMT AOI Machine also features SMEMA standard compatibility, enabling seamless integration with your existing production line. It can easily be connected to other machines using the SMEMA communication protocol, allowing for efficient and effective communication between machines.
We stand behind the quality and reliability of our product, which is why we offer a 3 Month Warranty on our SMT AOI Machine. Our team of experts is always available to provide technical support and assistance should you encounter any issues with your machine.
| Product Attribute | Value |
| Product Name | PCB AOI |
| Inspection Area | Up To 460 X 610 Mm |
| Quality | Top Quality |
| Standard | SMEMA |
| Movement Speed | 800mm/sec |
| Package | Wooden Case |
| Core Components | Motor |
| Lead Time | 1 To 5 Working Days |
| Industrial Camera | Standard 5 Million Global Exposure Industrial Color Camera |
| Lenses | The First Company In China To Use Large-diameter Telecentric Lenses |
| Warranty | 3 Month |
| Product Type | AOI Inspection Equipment, AOI Visual Inspection Equipment |
Our SMT AOI Machine is equipped with an Independently Developed Optical System that ensures high-precision inspection results. This machine is perfect for various application occasions and scenarios, including:
Our SMT AOI Machine is certified by FCC, ROHS, ISO9000, and ISO14001, which guarantees its quality and safety. We require a minimum order quantity of 1 and offer a delivery time of 3 weeks. Payment terms are T/T, and we have a supply ability of 1000PCS/M.
The operating system of our SMT AOI Machine is Windows, which makes it user-friendly and easy to operate. The machine's core components, including the motor, are of high quality and ensure the machine's durability and longevity.
The SMT AOI Machine has dimensions of 1200 X 1200 X 1600 Mm, making it compact and easy to fit into any workspace. We also offer a lead time of 1 to 5 working days, ensuring that our customers receive their orders in a timely manner.
Investing in our SMT AOI Machine will help manufacturers detect and identify defects during the production process, thus ensuring that only high-quality products are delivered to the market. Contact us today to place your order!
