Product Details
Place of Origin: Dongguan,China
Brand Name: MENTO
Certification: FCC,ROHS,ISO9000,ISO14001
Model Number: K2005
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: W1000mmxD1380mmxH1600mm(without foot 100±20mm)
Delivery Time: 3Weeks
Payment Terms: T/T,
Supply Ability: 1000PCS/M
Camera: |
12MP, Color |
Lead Time: |
1 To 5 Working Days |
Port: |
Shenzhen |
Movement Speed: |
800mm/sec |
Package: |
Wooden Case |
Core Components: |
Motor |
Quality: |
Top Qualiy |
Camera: |
12MP, Color |
Lead Time: |
1 To 5 Working Days |
Port: |
Shenzhen |
Movement Speed: |
800mm/sec |
Package: |
Wooden Case |
Core Components: |
Motor |
Quality: |
Top Qualiy |
1. High cost performance
2. Standard 5 million global exposure industrial color camera
3. The first company in China to use large-diameter telecentric lenses (can be targeted at products)
4. Independently developed optical system (light source consistency)
5. High stability integrated casting platform
Application scope: solder joint and mounted device inspection

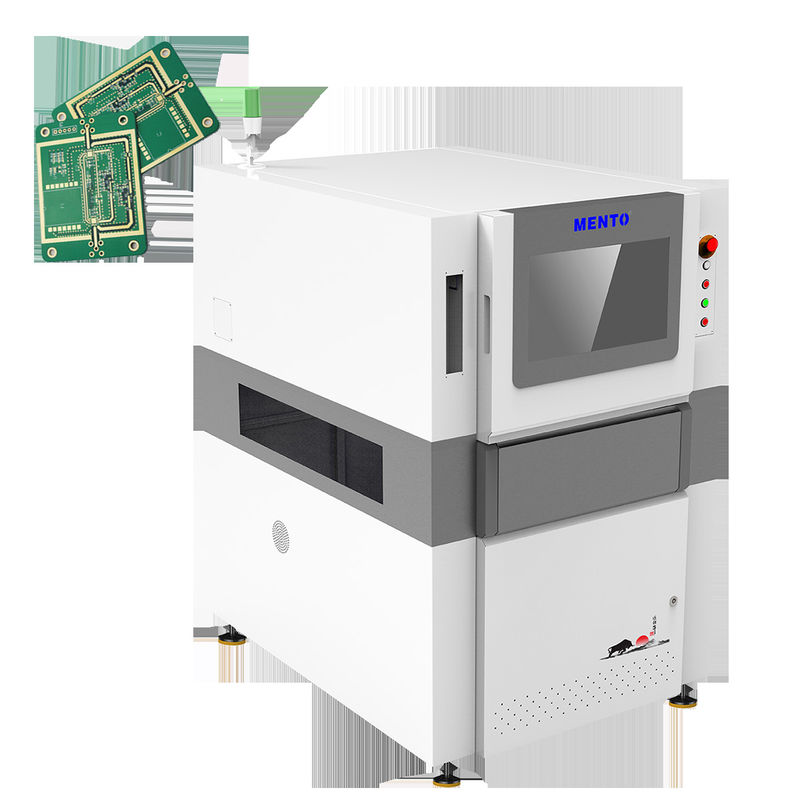

| 2D Automated Optical Inspection Online Single-Track | ||
| Model | K2005 | |
| Testing Capability | Test items | CHIP component body, CHIP component solder joints, characters, DIP solder joints |
| Minimum component | CHIP:01005 Pitch:0.3mm | |
| Detection Method | Deep Learning, Image Processing | |
| Optical System | Camera | 5MP high speed color industrial camera |
| Telecentric Lens | 0.345X/0.22X/0.17X | |
| Resolution | 10um/15um/20um | |
| FOV | 24x20mm/36x30mm/48x40mm | |
| Detection Speed | 3FOV/s | |
| Software System | Operating System | Ubuntu 20.04 |
| Mechanical Properties | PCB thickness | 0.3~10mm(Warp≤5mm) |
| Component Height | Upper 30mm, Lower 84mm(special height can be customized) | |
| Driving device | Servomotor+Ball Screw+Linear Guideway | |
| Moving speed | Max.600mm/s | |
| Positioning accuracy | ≤8um(after calibration) | |
| PCB transport guide | PCB rail transportation height:900+20mm(from ground to PCB rail transportation surface) | |
| 600mmx700mm | ||
| Minimum distance between PCBs:≤90mm | ||
| Parameters | Curing method | AC220V/50Hz/2000W |
| Detection screen | W1000mmxD1380mmxH1600mm(without foot 100±20mm) | |
| Accuracy | 1100KG | |
| Re-measurement Accuracy | ≥0.5MPa | |
| Wafer Ring Size | Temperature:5~40℃, relative humidity 25%~80%(no frost) | |
| Number of wafers handledsimultaneously | Standard SMEMA interface | |
With a minimum order quantity of 1 and a delivery time of 3 weeks, this product is perfect for SMT appearance inspection needs. The machine is equipped with a nine million pixel camera, making it highly effective in identifying and detecting any defects in the SMT components. Its operating system is Windows, which is widely used and easy to operate. The machine's standard is SMEMA, a widely recognized and accepted standard in the SMT industry.
The SMT AOI Machine product is suitable for various application occasions and scenarios. It can be used in electronics manufacturing companies, PCB manufacturers, and other related industries. This product is ideal for inspecting the SMT components' appearance, including their placement, polarity, and solder paste. It can detect various defects, such as missing components, wrong polarity, bridging, insufficient solder, and more, making it highly efficient and reliable.
The SMT AOI Machine product is highly versatile and can be used in different scenarios. It can be used for batch inspection, sample inspection, or full production inspection, depending on the need. This product can reduce inspection time and improve production efficiency, making it an ideal choice for industries that require high-quality SMT appearance inspection.
The machine's lead time is 1 to 5 working days, and it can be delivered through the Shenzhen port. The payment terms are T/T, and the supply ability is 1000PCS/month, ensuring that customers can receive their orders promptly and efficiently.
The SMT AOI Machine is a cutting-edge product that requires top-of-the-line technical support and services. Our team of experts is dedicated to ensuring that your machine operates at peak performance and is always up to date with the latest software and firmware upgrades. Our technical support services include:
We also offer a range of additional services to ensure that your SMT AOI Machine is always running smoothly. These services include:
With our industry-leading technical support and services, you can be confident that your SMT AOI Machine will always be operating at its best.
Q: What is the brand name of this SMT AOI Machine?
A: The brand name of this SMT AOI Machine is MENTO.
Q: Where is this SMT AOI Machine manufactured?
A: This SMT AOI Machine is manufactured in Dongguan, China.
Q: What certifications does this SMT AOI Machine have?
A: This SMT AOI Machine has FCC, ROHS, ISO9000, and ISO14001 certifications.
Q: What is the minimum order quantity for this SMT AOI Machine?
A: The minimum order quantity for this SMT AOI Machine is 1.
Q: What is the delivery time for this SMT AOI Machine?
A: The delivery time for this SMT AOI Machine is 3 weeks.
Q: What are the payment terms for this SMT AOI Machine?
A: The payment terms for this SMT AOI Machine are T/T.
Q: What is the supply ability of this SMT AOI Machine?
A: The supply ability of this SMT AOI Machine is 1000PCS/M.
