Product Details
Place of Origin: Dongguan,China
Brand Name: MENTO
Certification: FCC,ROHS,ISO9000,ISO14001
Model Number: K2005
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: W1000mmxD1380mmxH1600mm(without foot 100±20mm)
Delivery Time: 3Weeks
Payment Terms: T/T,
Supply Ability: 1000PCS/M
Camera: |
12MP, Color |
Port: |
Shenzhen |
Warraty: |
3 Month |
Dimensions: |
1200 X 1200 X 1600 Mm |
Model: |
AOI |
Lighting Method: |
LED |
Lead Time: |
1 To 5 Working Days |
Inspection Area: |
Up To 460 X 610 Mm |
Camera: |
12MP, Color |
Port: |
Shenzhen |
Warraty: |
3 Month |
Dimensions: |
1200 X 1200 X 1600 Mm |
Model: |
AOI |
Lighting Method: |
LED |
Lead Time: |
1 To 5 Working Days |
Inspection Area: |
Up To 460 X 610 Mm |
Online AOI features
1. High cost performance
2. Standard 5 million global exposure industrial color camera
3. The first company in China to use large-diameter telecentric lenses (can be targeted at products)
4. Independently developed optical system (light source consistency)
5. High stability integrated casting platform
Application scope: solder joint and mounted device inspection
| 2D Automated Optical Inspection Online Single-Track | ||
| Model | K2005 | |
| Testing Capability | Test items | CHIP component body, CHIP component solder joints, characters, DIP solder joints |
| Minimum component | CHIP:01005 Pitch:0.3mm | |
| Detection Method | Deep Learning, Image Processing | |
| Optical System | Camera | 5MP high speed color industrial camera |
| Telecentric Lens | 0.345X/0.22X/0.17X | |
| Resolution | 10um/15um/20um | |
| FOV | 24x20mm/36x30mm/48x40mm | |
| Detection Speed | 3FOV/s | |
| Software System | Operating System | Ubuntu 20.04 |
| Mechanical Properties | PCB thickness | 0.3~10mm(Warp≤5mm) |
| Component Height | Upper 30mm, Lower 84mm(special height can be customized) | |
| Driving device | Servomotor+Ball Screw+Linear Guideway | |
| Moving speed | Max.600mm/s | |
| Positioning accuracy | ≤8um(after calibration) | |
| PCB transport guide | PCB rail transportation height:900+20mm(from ground to PCB rail transportation surface) | |
| 600mmx700mm | ||
| Minimum distance between PCBs:≤90mm | ||
| Parameters | Curing method | AC220V/50Hz/2000W |
| Detection screen | W1000mmxD1380mmxH1600mm(without foot 100±20mm) | |
| Accuracy | 1100KG | |
| Re-measurement Accuracy | ≥0.5MPa | |
| Wafer Ring Size | Temperature:5~40℃, relative humidity 25%~80%(no frost) | |
| Number of wafers handledsimultaneously | Standard SMEMA interface | |
The SMT AOI Machine is a highly advanced automated optical inspection system that is capable of inspecting printed circuit boards for various defects and issues. Our AOI equipment can detect defects such as shorts, opens, missing components, and polarity issues, making it the ideal solution for identifying errors in your PCB production process.
The SMT AOI Machine is designed to enhance the efficiency of your production process, with a lead time of just 1 to 5 working days. Our machine is built to last, constructed with durable materials and packaged in a sturdy wooden case for safe and secure transportation.
Our machine is equipped with the latest LED lighting technology, which provides high-intensity illumination, making it easy to detect defects in PCBs. The nine million pixel camera captures high-resolution images of the PCBs, allowing for detailed inspection and analysis.
In summary, our SMT AOI Machine is the perfect solution for PCBA inspection, featuring SMEMA compatibility, LED lighting, a high-resolution camera with nine million pixels, and a quick lead time of 1 to 5 working days. Our AOI visual inspection equipment is designed to increase the efficiency of your production process and ensure that your PCBs are free from defects and issues.

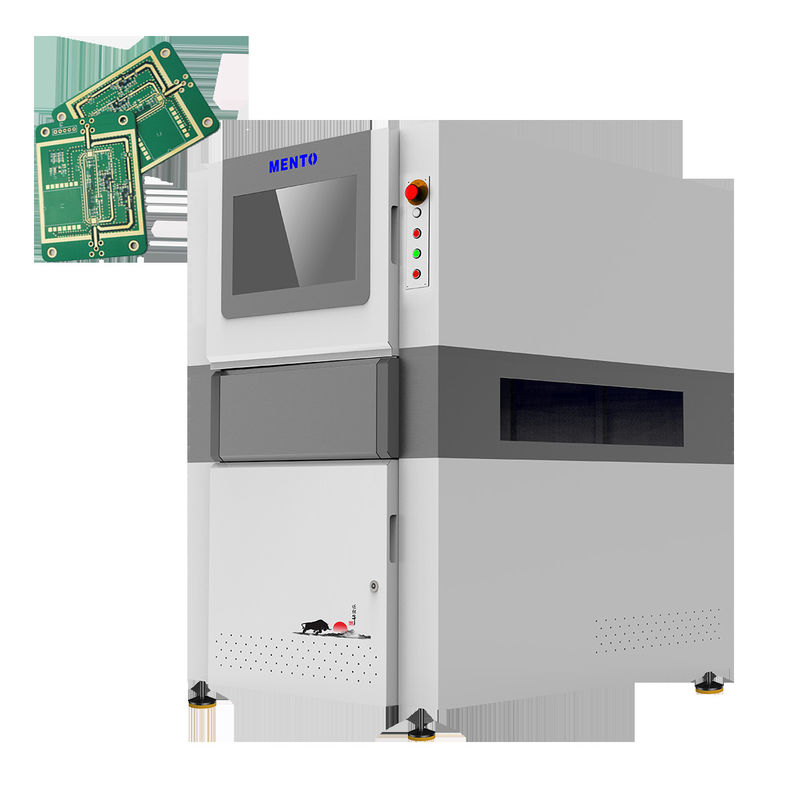

Made in Dongguan, China, the MENTO Automatic Optical Inspection (AOI) Machine is a top-quality PCB AOI Optical Inspection Instrument that is perfect for ensuring the quality of printed circuit boards (PCBs). This product has been certified by FCC, ROHS, ISO9000 and ISO14001, ensuring that it meets global quality standards.
The MENTO AOI Machine boasts a high-quality camera that has a resolution of 12MP and captures images in color. This camera, combined with the LED lighting method, provides excellent imaging and ensures that all PCBs are thoroughly inspected. The inspection area of this machine is up to 460 x 610 mm, making it perfect for inspecting PCBs of various sizes.
This product is perfect for a wide range of product application occasions and scenarios. It can be used in the electronics manufacturing industry to inspect PCBs for quality control purposes. The MENTO AOI Machine can be used to inspect PCBs for defects such as missing components, soldering defects, and incorrect component placement. It is also ideal for inspecting PCBs for defects that could lead to product failure or malfunction.
The MENTO AOI Machine is easy to use, and its automatic optical inspection function ensures that inspections are fast and accurate. This product is suitable for both large-scale and small-scale production environments, making it perfect for a wide range of manufacturing scenarios.
With a minimum order quantity of 1 and a delivery time of 3 weeks, the MENTO AOI Machine is readily accessible. It can be purchased through T/T, and with a supply ability of 1000pcs/m and a warranty of 3 months, the MENTO AOI Machine is a reliable investment for any manufacturing plant.
Our SMT AOI Machine product comes with comprehensive technical support and services to ensure maximum efficiency and productivity. Our team of experienced technicians is available to assist with installation, training, and maintenance of the machine. We also offer remote technical support and onsite repair services to minimize any downtime and keep your production line running smoothly.
Q: What is the brand name of the SMT AOI Machine?
A: The brand name of the SMT AOI Machine is MENTO.
Q: Where is the SMT AOI Machine manufactured?
A: The SMT AOI Machine is manufactured in Dongguan, China.
Q: What certifications does the SMT AOI Machine have?
A: The SMT AOI Machine has FCC, ROHS, ISO9000 and ISO14001 certifications.
Q: What is the minimum order quantity for the SMT AOI Machine?
A: The minimum order quantity for the SMT AOI Machine is 1.
Q: What is the delivery time for the SMT AOI Machine?
A: The delivery time for the SMT AOI Machine is 3 weeks.
Q: What are the payment terms for the SMT AOI Machine?
A: The payment terms for the SMT AOI Machine are T/T.
Q: What is the supply ability of the SMT AOI Machine?
A: The supply ability of the SMT AOI Machine is 1000PCS/M.
