Product Details
Place of Origin: China dongguan
Brand Name: Mento
Certification: ISO9001/ISO14001
Model Number: K3412
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: W1000mmxD1380mmxH1600mm(without foot 100±20mm)
Delivery Time: 3 week
Payment Terms: on line
Supply Ability: 1000/month
Power Supply: |
AC 220V, 50/60Hz |
Inspection Area: |
Up To 510 X 510 Mm |
Operating System: |
Windows 10 |
Inspection Types: |
Solder Joint, Component, Defect |
Software: |
Intuitive User Interface |
Inspection Method: |
3D Inspection |
Resolution: |
10 μm |
Inspection Speed: |
Up To 80 Cm²/s |
Power Supply: |
AC 220V, 50/60Hz |
Inspection Area: |
Up To 510 X 510 Mm |
Operating System: |
Windows 10 |
Inspection Types: |
Solder Joint, Component, Defect |
Software: |
Intuitive User Interface |
Inspection Method: |
3D Inspection |
Resolution: |
10 μm |
Inspection Speed: |
Up To 80 Cm²/s |

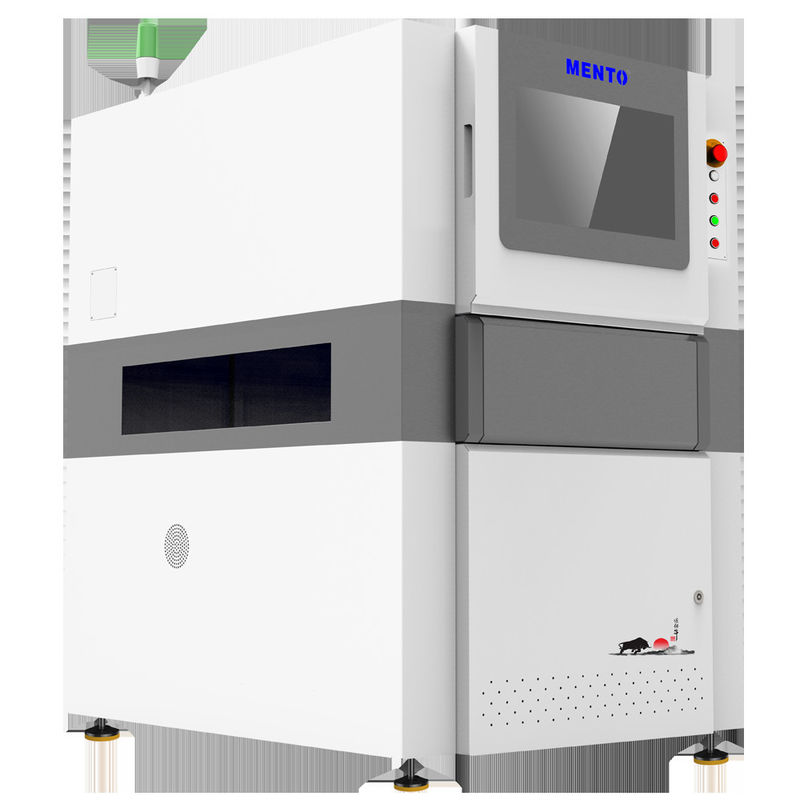

Our 3D AOI Machine uses automatic alignment, making it easy to use and convenient for any user. The automatic alignment ensures that the inspection process is quick and accurate, saving time and ensuring that the results are reliable.
When it comes to inspection types, our 3D AOI Machine has got you covered. It can perform inspections for solder joints, components, and defects, ensuring that your PCBs are thoroughly inspected. This ensures that your products are of the highest quality and that your customers are satisfied with the products they receive.
Our 3D AOI Machine is powered by AC 220V, 50/60Hz, making it easy to use in any environment. It is a versatile machine that can be used in various manufacturing environments, ensuring that your PCBs are thoroughly inspected.
There are many PCB AOI equipment manufacturers out there, but our 3D AOI Machine stands out from the rest. It is a reliable and accurate machine that can help you improve the quality of your products. So, if you're looking for a high-quality PCB AOI equipment, choose our 3D AOI Machine.
| Device model | K3412 | |
| Detection capacity | Detection items | |
| Scanning method | Stop&Go | |
| Optical system | Camera | 12MP high speed color industrial camera |
| Light Source | 4 DLP light source (raster phase shift technology) and red, green and blue (RGB) light source | |
| Resolution | 10μm & 15um (optional) | |
| Volume repeatability | <1% (standard verification block, 3Sigma) | |
| Maximum Plate Bending Compensation Value | ±3mm | |
| Detection Capability GRR | <10%at6o(+50%tolerance, 5μm resolution) | |
| Maximum detection height | 20mm/40mm | |
| Solution to shadow problem | Phase shift technology & bidirectional 3D Structured Light system | |
| Plate bending real-time compensation method | Plate Bend Compensation (Z-Tracking+Pad Referencing) | |
| Test screen | Color (3D and 2D images displayed together) | |
| Driving equipment | Servomotor+Screw Guide | |
| Moving speed | 800mm/s | |
| Minimum measurable product size | 50mmx50mm | |
| Maximum product measurable size | 400mmx500mm | |
| PCB thickness | 0.5~6mm | |
| Track width adjustment | Automatic width adjustment, manual width adjustment | |
| Circuit board conveying/fixing | Belt conveyor/pneumatic clamp fixing | |
| Conveying direction | From left to right, right to left | |
| Orbital height | 900±20mm | |
| Computer Configuration | Mainframe | CPU: Intel i5, RAM: DDR4-16G, GPU: GTX1660-6GB, SSD:250G, HDD: 2T |
| Monitor | 22"LED | |
| Operating system | Ubuntu | |
| Parameters | Overall size | W1000xD1380xH1600mm (excluding alarm light) |
| Weight | 1100KG | |
| Power source | AC220V/50~60Hz/2000W | |
| Air Pressure | 0.5Mpa | |
| Environmental requirements | Temperature: 5~40℃, relative humidity: 25%~80% (no frost) | |
| Upstream and downstream equipment communication | Standard SMEMA interface | |
This 3D AOI Machine is an essential equipment for PCB AOI equipment manufacturers. It is capable of inspecting solder joint, component, and defect. The intuitive user interface software makes it easy to operate. The RGB LED lighting ensures accurate inspection. It can handle PCB with thickness ranging from 0.5 to 5 mm. With a weight of 800 Kg, it is a reliable and sturdy aoi pcb inspection equipment.
| Product Attribute | Value |
| Product Name | 3D AOI Inspection Machine |
| Resolution | 10 μm |
| Camera Type | 3D Digital Camera |
| Alignment Method | Automatic Alignment |
| Operating System | Windows 10 |
| Lighting | RGB LED |
| Dimension | L 1300 X W 1300 X H 1500 Mm |
| Inspection Speed | Up To 80 Cm²/s |
| Weight | 800 Kg |
| Software | Intuitive User Interface |
| Power Supply | AC 220V, 50/60Hz |
The Mento-01 3D AOI machine is designed for automatic alignment of PCBs with a thickness range between 0.5mm to 5mm. The inspection area can cover up to 510mm x 510mm, and the inspection speed can reach up to 80 cm²/s. These features make it an ideal PCB inspection system for various industries, including automotive, aerospace, medical, and telecommunications.
The Mento-01 3D AOI machine is perfect for PCB manufacturing companies that require high precision and accuracy in PCB inspection. It is an efficient and reliable tool that helps in detecting defects in the PCBs, such as soldering defects, component placement errors, and short circuits. The automatic alignment feature ensures that every inspection is carried out with the highest level of accuracy, reducing the need for manual intervention.
With its compact design, the Mento-01 3D AOI machine has a dimension of L1300 x W1300 x H1500mm, making it easy to install in any workspace. This machine is a perfect fit for small and medium-sized PCB manufacturing companies that require an efficient and reliable PCB AOI equipment without compromising on quality.
In conclusion, the Mento-01 3D AOI inspection machine is an essential tool for PCB manufacturing companies that require a high level of precision and accuracy when inspecting PCBs. Its automatic alignment feature, inspection speed, and coverage make it an ideal choice for various applications in the automotive, aerospace, medical, and telecommunications industries.
