Product Details
Place of Origin: China dongguan
Brand Name: Mento
Certification: ISO9001/ISO14001
Model Number: k3205
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 3 week
Payment Terms: on line, L/C, T/T
Supply Ability: 1000/month
Power Supply: |
AC 220V, 50/60Hz |
Dimension: |
L 1300 X W 1300 X H 1500 Mm |
Camera Type: |
3D Digital Camera |
Weight: |
1100 Kg |
Inspection Area: |
Up To 510 X 510 Mm |
Resolution: |
10 μm |
Alignment Method: |
Automatic Alignment |
Pcb Thickness: |
0.5 - 5 Mm |
Power Supply: |
AC 220V, 50/60Hz |
Dimension: |
L 1300 X W 1300 X H 1500 Mm |
Camera Type: |
3D Digital Camera |
Weight: |
1100 Kg |
Inspection Area: |
Up To 510 X 510 Mm |
Resolution: |
10 μm |
Alignment Method: |
Automatic Alignment |
Pcb Thickness: |
0.5 - 5 Mm |

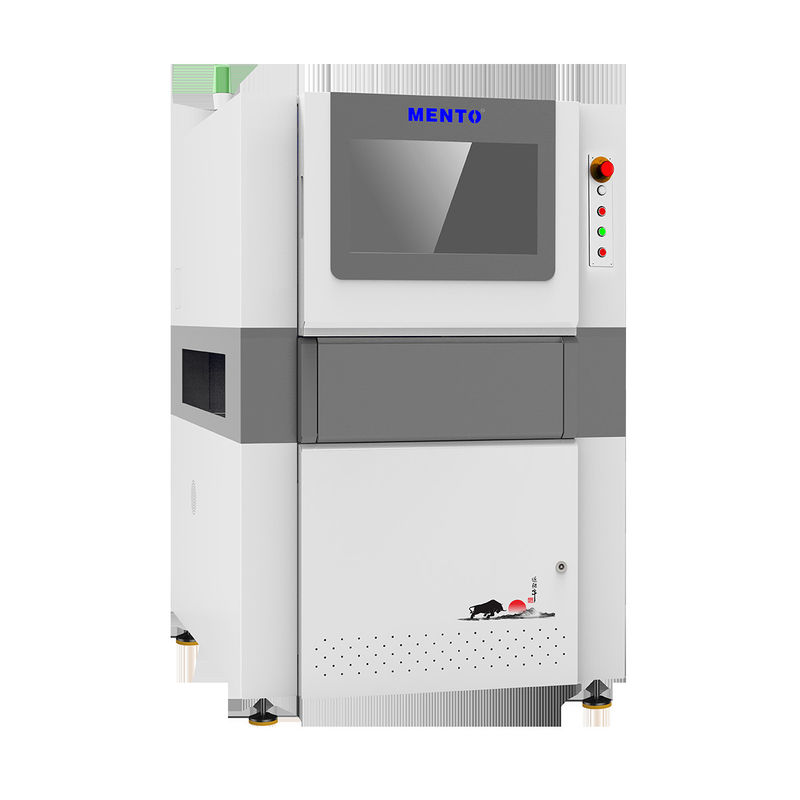

One of the most notable features of this 3D AOI Machine is its automatic alignment method. This means that the machine can automatically adjust to different PCB sizes and shapes, guaranteeing a seamless inspection process. This feature also makes it possible for the machine to inspect multiple PCBs at once, further increasing its efficiency.
Another great aspect of this 3D AOI Machine is its inspection method. The machine makes use of 3D inspection technology to capture highly-detailed images of the PCB, providing a comprehensive analysis of the board's condition. This enables users to detect any defects or imperfections that may affect the performance of the PCB.
In terms of dimension, the 3D AOI Machine measures L 1300 X W 1300 X H 1500 mm, making it a compact and space-saving equipment. This makes it possible to integrate the machine into different production lines without taking up too much space.
The 3D AOI Machine is also designed to provide a stable and reliable performance. It is equipped with a power supply of AC 220V, 50/60Hz, ensuring that the machine can operate smoothly even in challenging environments.
Overall, the 3D AOI Machine is an excellent choice for businesses that require high-precision and reliable inspection of their PCBs. Its automatic alignment method, 3D inspection technology, and compact design make it an ideal PCB AOI equipment for various production lines.
| Device model | K3205 | |
| Detection capacity | Detection items | Miss print, over solder, insufficient solder, solder bridging, solder paste tailing, shape anomany, offset |
| Scanning method | Stop&Go | |
| Optical system | Camera | 5MP high speed color industrial camera |
| Light Source | Dual DLP light source (raster phase shift technology) and red, green and blue (RGB) light source | |
| Resolution | 10μm & 15um (optional) | |
| Detection performance | Height accuracy (calibration module) | 1μm (using standard calibration block) |
| Volume repeatability | <1% (standard verification block, 3Sigma) | |
| Maximum Plate Bending Compensation Value | ±3mm | |
| Detection Capability GRR | <10%at6o(+50%tolerance, 5μm resolution) | |
| Maximum detection height | 500μm | |
| Solution to shadow problem | Phase shift technology & bidirectional 3D Structured Light system | |
| Plate bending real-time compensation method | Plate Bend Compensation (Z-Tracking+Pad Referencing) | |
| Test screen | Color (3D and 2D images displayed together) | |
| Driving equipment | Servomotor+Screw Guide | |
| Moving speed | 800mm/s | |
| Minimum measurable product size | 50mmx50mm | |
| Maximum product measurable size | 400mmx500mm | |
| PCB thickness | 0.5~6mm | |
| Track width adjustment | Automatic width adjustment, manual width adjustment | |
| Circuit board conveying/fixing | Belt conveyor/pneumatic clamp fixing | |
| Conveying direction | From left to right, right to left | |
| Orbital height | 900±20mm | |
| Computer Configuration | Mainframe | CPU: Intel i5, RAM: DDR4-16G, GPU: GTX1660-6GB, SSD:250G, HDD: 2T |
| Monitor | 22"LED | |
| Operating system | Ubuntu | |
| Parameters | Overall size | W1350xD1000xH1600mm (excluding alarm light) |
| Weight | 1100KG | |
| Power source | AC220V/50~60Hz/2000W | |
| Air Pressure | 0.5Mpa | |
| Software Supported Input Formats | Support Gerber format (274X), ODB++ | |
| Statistical management tools |
Histogram,X-bar&R -Chart ,X-bar&S -C hart ,C p&C pk, %Gage R & R,SPI Daily/Weekly/Monthly Reports, real-time SPC& Multiple Display |
|
| Environmental requirements | Temperature: 5~40℃, relative humidity: 25%~80% (no frost) | |
| Upstream and downstream equipment communication | Standard SMEMA interface | |
The 3D AOI Machine is a state-of-the-art PCB inspection equipment that is designed to help manufacturers ensure the quality of their products. Equipped with RGB LED lighting, this AOI equipment is capable of detecting even the smallest defects on a PCB. Its automatic alignment system makes the inspection process faster and more accurate, while its high resolution of 10 μm ensures that no defect goes unnoticed. As one of the leading aoi equipment manufacturers, we take pride in providing our customers with top-quality PCB AOI inspection equipment that is both reliable and cost-effective.
| Inspection Speed | Up To 80 Cm²/s |
| Inspection Area | Up To 510 X 510 Mm |
| Lighting | RGB LED |
| Software | Intuitive User Interface |
| Weight | 800 Kg |
| Resolution | 10 μm |
| Inspection Method | 3D Inspection |
| Camera Type | 3D Digital Camera |
| Alignment Method | Automatic Alignment |
| Inspection Types | Solder Joint, Component, Defect |
The Mento-01 3D AOI Machine is suitable for various applications, including PCB manufacturing, PCB assembly, and quality control. This product is ideal for companies looking to improve their production efficiency and reduce errors. The machine can inspect PCBs with a thickness of 0.5 - 5 mm, making it versatile for various industries.
The intuitive user interface software of the Mento-01 3D AOI Machine makes it easy to operate. Users can quickly set up and run the machine, making it an ideal product for both seasoned professionals and those new to the industry. The product has been certified with ISO9001 and ISO14001, ensuring that it meets international quality and environmental standards.
The Mento-01 3D AOI Machine has a minimum order quantity of 1, and the price is negotiable, making it an affordable option for companies of all sizes. The delivery time is only 1 week, and payment terms are available online, making it quick and easy to purchase. The supply ability of the Mento-01 3D AOI Machine is 1000/month, making it readily available for companies with high-volume production.
In conclusion, the Mento-01 3D AOI Machine is a reliable and efficient product that can improve the production quality of PCBs. It is suitable for various applications, and its intuitive user interface makes it easy to operate. With its certifications and affordable price, the Mento-01 3D AOI Machine is an excellent investment for companies looking to improve their production efficiency.
Our 3D AOI inspection machine has a supply ability of 1000/month and is equipped with intuitive user interface software. It runs on AC 220V, 50/60Hz power supply and has a dimension of L 1300 X W 1300 X H 1500 Mm. It is suitable for PCB thickness of 0.5 - 5 Mm and has a resolution of 10 μm.
Our product customization services cater to your specific requirements and ensure that you get the most out of our PCB AOI equipment. Contact us today to learn more about our 3D AOI inspection machine and how it can benefit your business.
The 3D AOI Machine product comes with a range of technical support and services to ensure maximum performance and efficiency. Our team of experienced technicians can provide:
We are committed to providing our customers with exceptional support and service to help them get the most out of their 3D AOI Machine.
Product Packaging:
The 3D AOI Machine product will be carefully packaged to ensure safe delivery. It will be placed in a sturdy cardboard box with sufficient padding to prevent any damage during transit.
Shipping:
Shipping will be handled by a reputable courier service. The estimated delivery time will depend on the destination, but we strive to deliver all orders as quickly as possible. Customers will receive a shipping confirmation email with tracking information once the order has been dispatched.
Q: What is the brand name of this 3D AOI Machine product?
A: The brand name of this 3D AOI Machine product is Mento.
Q: What is the model number of this 3D AOI Machine product?
A: The model number of this 3D AOI Machine product is Mento-01.
Q: Where is this 3D AOI Machine product manufactured?
A: This 3D AOI Machine product is manufactured in China Dongguan.
Q: What certifications does this 3D AOI Machine product have?
A: This 3D AOI Machine product has ISO9001/ISO14001 certification.
Q: What is the minimum order quantity for this 3D AOI Machine product?
A: The minimum order quantity for this 3D AOI Machine product is 1.
Q: Is the price of this 3D AOI Machine product negotiable?
A: Yes, the price of this 3D AOI Machine product is negotiable.
Q: What is the delivery time for this 3D AOI Machine product?
A: The delivery time for this 3D AOI Machine product is 1 week.
Q: What are the payment terms for this 3D AOI Machine product?
A: The payment terms for this 3D AOI Machine product are online.
Q: What is the supply ability of this 3D AOI Machine product?
A: The supply ability of this 3D AOI Machine product is 1000/month.
