Product Details
Place of Origin: China dongguan
Brand Name: Mento
Certification: ISO9001/ISO14001
Model Number: K3412
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: W1000mmxD1380mmxH1600mm(without foot 100±20mm)
Delivery Time: 3 week
Supply Ability: 1000/month
Inspection Speed: |
Up To 80 Cm²/s |
Resolution: |
10 μm |
Operating System: |
Ubuntu |
Weight: |
1100 Kg |
Dimension: |
L 1000 X W 1380 X H 1600 Mm |
Inspection Area: |
Up To 510 X 510 Mm |
Inspection Types: |
Solder Joint, Component, Defect |
Alignment Method: |
Automatic Alignment |
Inspection Speed: |
Up To 80 Cm²/s |
Resolution: |
10 μm |
Operating System: |
Ubuntu |
Weight: |
1100 Kg |
Dimension: |
L 1000 X W 1380 X H 1600 Mm |
Inspection Area: |
Up To 510 X 510 Mm |
Inspection Types: |
Solder Joint, Component, Defect |
Alignment Method: |
Automatic Alignment |
Application scope
Solder joint and mounted device inspection
Features
1.High speed, single FOV processing time is about 350ms
2.Anti-interference, high precision, large range
3.RGB light source seamlessly integrates 2D information to enhance judgment accuracy
4.Three-dimensional height visualization, which can display three-dimensional RGB data and height heat maps
Technical parameter
| Device model | K3412 | |
| Detection capacity | Detection items | Miss print, over solder, insufficient solder, solder bridging, solder paste tailing, shape anomany, offset |
| Scanning method | Stop&Go | |
| Optical system | Camera | 12MP high-speed color industrial camera |
| Light Source | 4 DLP light source (raster phase shift technology) and red, green and blue (RGB) light source | |
| Resolution | 10μm & 15um (optional) | |
| Detection performance | Height accuracy (calibration module) | 1μm (using standard calibration block) |
| Volume repeatability | <1% (standard verification block, 3Sigma) | |
| Maximum Plate Bending Compensation Value | ±3mm | |
| Detection Capability GRR | <10%at6o(+50%tolerance, 5μm resolution) | |
| Maximum detection height | 20mm/40mm | |
| Solution to shadow problem | Grating phase shifting technology to eliminate shadows & four-directional 3D light source illumination system | |
| Plate bending real-time compensation method | Plate Bend Compensation (Z-Tracking+Pad Referencing) | |
| Test screen | Color (3D and 2D images displayed together) | |
| Driving equipment | Servomotor+Screw Guide | |
| Moving speed | 800mm/s | |
| Minimum measurable product size | 50mmx50mm | |
| Maximum product measurable size | 400mmx500mm | |
| PCB thickness | 0.5~6mm | |
| Track width adjustment | Automatic width adjustment, manual width adjustment | |
| Circuit board conveying/fixing | Belt conveyor/pneumatic clamp fixing | |
| Conveying direction | From left to right, right to left | |
| Orbital height | 900±20mm | |
| Computer Configuration | Mainframe | CPU: Intel i5, RAM: DDR4-16G, GPU: GTX1660-6GB, SSD:250G, HDD: 2T |
| Monitor | 22"LED | |
| Operating system | Ubuntu | |
| Parameters | Overall size | W1000xD1380xH1600mm (excluding alarm light) |
| Weight | 1100KG | |
| Power source | AC220V/50~60Hz/2000W | |
| Air Pressure | 0.5Mpa | |
| Software Supported Input Formats | Support Gerber format (274X), ODB++ | |
| Environmental requirements | Temperature: 5~40℃, relative humidity: 25%~80% (no frost) | |
| Upstream and downstream equipment communication | Standard SMEMA interface | |
Our innovative image processing system offers a number of core advantages and technologies that can enhance the accuracy and precision of your work. One of our standout features is our high-resolution imaging capabilities, which can be configured with different resolutions to highlight even the subtlest of defects - making them easy to detect and analyze.
We achieve this high-resolution imaging through the use of ultra-high frame rate 5MP and 12MP high-speed color industrial cameras. These cameras are combined with high-end large-diameter telecentric lenses which have been designed to minimize distortion and maximize depth of field - creating clear, high-quality images that are compatible with high and low component image clarity.
Our system also utilizes advanced calibration technology to ensure the highest level of dimensional measurement accuracy. This technology includes field of view flat field correction, lens distortion correction, and installation error correction - resulting in an ultra-precise measuring tool that can be relied upon for detailed and accurate analyses.
Furthermore, our multi-angle light source is designed to effectively highlight details such as solder joints and silk screen features. We've equipped our light source with a constant current controller to ensure consistent brightness and optimal imaging quality.
The application scope of this product involves inspecting solder joints and mounted devices. This equipment is extremely useful in identifying any defects or faults present in these components, ensuring that the overall quality and functionality of the device is not compromised.
This product has a range of features that make it highly effective for inspecting solder joints and mounted devices. Its single FOV processing time is about 350ms, making it a very high-speed processing machine. Additionally, it is designed with anti-interference capabilities, providing a high level of precision across a wide range of inputs.
Another key feature is its seamless integration of 2D information from the RGB light source, which enhances the accuracy of judgment. This information can also be displayed in three dimensions, providing a valuable visualization tool that displays RGB data as well as height heat maps. These features together make the inspection process fast, accurate, and highly effective.
Our software offers a fast and minimalist approach to graphical programming. Using universal modules, you can build standard applications and rapidly prototype your projects. You can verify your prototypes in no time, making the development process much more efficient.
One of the key benefits of our software is the ability to perform visual inspections without requiring any coding. You can easily build a visual inspection algorithm process by combining different modules and clicking your mouse. This makes the process of visual inspection much simpler and faster, saving you a lot of time in the long run.
In addition to visual inspection, our software also simplifies the motion control process. You don't need to know any code to control motion - our motion control process provides a motion card control interface that only requires interactive configuration. With this interface, you can easily realize complex motion control scenarios without any hassle.

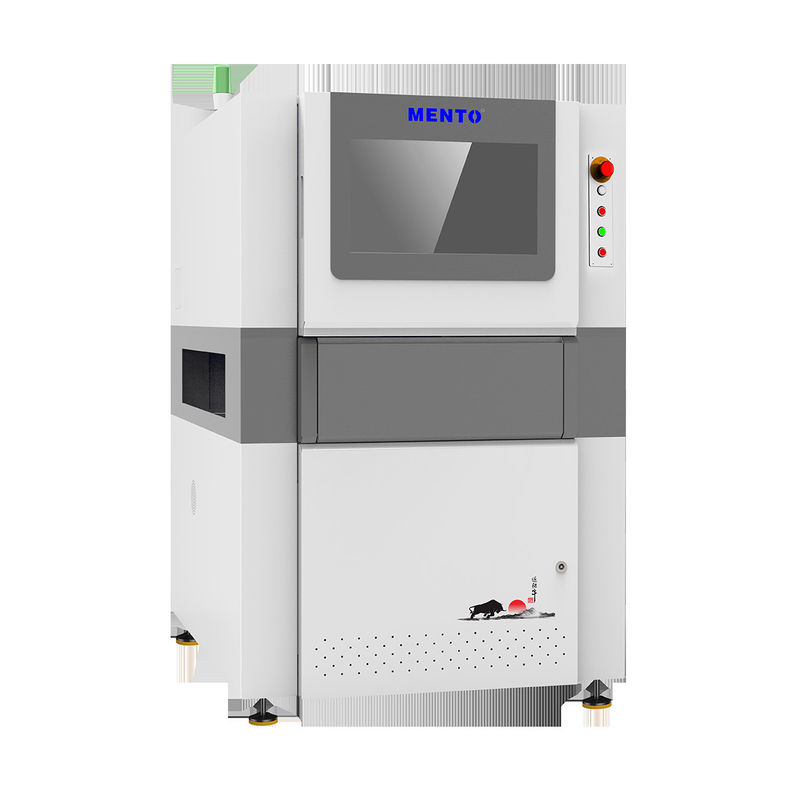

Mento's 3D AOI Machine, model number K3412, is a top-of-the-line pcb inspection system manufactured in China dongguan. It comes with ISO9001/ISO14001 certification, ensuring quality and environmental standards are met.
Our product customization services provide flexibility in meeting your specific needs. The minimum order quantity is only 1, and the price is negotiable based on your requirements.
The delivery time is approximately 3 weeks, and our supply ability is 1000 units per month. The machine's dimensions are L 1000 X W 1380 X H 1600 Mm, and it weighs 1100 Kg. It runs on AC 220V, 50/60Hz power supply and operates on Ubuntu operating system.
The RGB LED lighting of the aoi pcb inspection system provides clear and accurate imaging of printed circuit boards. Contact us today to learn more about how our product customization services can meet your needs.
The 3D AOI Machine product comes with technical support and services to ensure optimal performance and minimize downtime. Our expert technicians provide:
Our technical support and services are designed to keep your 3D AOI Machine running smoothly and efficiently, so you can focus on your production goals.
Product Packaging:
The 3D AOI Machine will come in a sturdy cardboard box with foam inserts to protect it during shipping. The package dimensions will be 50cm x 50cm x 50cm and the weight will be approximately 20kg.
Shipping:
The product will be shipped via a reputable courier service and will require a signature upon delivery. The estimated shipping time will be 5-7 business days, but may vary depending on the destination. Shipping costs will be calculated based on the delivery address and will be added to the total cost of the order.
Frequently Asked Questions:
Q: What is the brand name of this product?
A: The brand name of this product is Mento.
Q: What is the model number of this product?
A: The model number of this product is K3412.
Q: Where is this product made?
A: This product is made in China, Dongguan.
Q: What certifications does this product have?
A: This product has ISO9001 and ISO14001 certifications.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1.
Q: Is the price negotiable?
A: Yes, the price of this product is negotiable.
Q: What is the delivery time for this product?
A: The delivery time for this product is 3 weeks.
Q: What is the supply ability of this product?
A: The supply ability of this product is 1000/month.
