Dongguan MENTO Intelligent Technology Co., Ltd. info@mento-mv.com 00-86-13410031559
Product Details
Place of Origin: China dongguan
Brand Name: Mento
Certification: ISO9001/ISO14001
Model Number: K3412
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: W1000mmxD1380mmxH1600mm(without foot 100±20mm)
Delivery Time: 3 week
Payment Terms: on line
Supply Ability: 1000/month
Inspection Method: |
3D Inspection |
Lighting: |
RGB LED |
Inspection Types: |
Solder Joint, Component, Defect |
Resolution: |
10 μm |
Alignment Method: |
Automatic Alignment |
Inspection Speed: |
Up To 80 Cm²/s |
Power Supply: |
AC 220V, 50/60Hz |
Weight: |
800 Kg |
Inspection Method: |
3D Inspection |
Lighting: |
RGB LED |
Inspection Types: |
Solder Joint, Component, Defect |
Resolution: |
10 μm |
Alignment Method: |
Automatic Alignment |
Inspection Speed: |
Up To 80 Cm²/s |
Power Supply: |
AC 220V, 50/60Hz |
Weight: |
800 Kg |

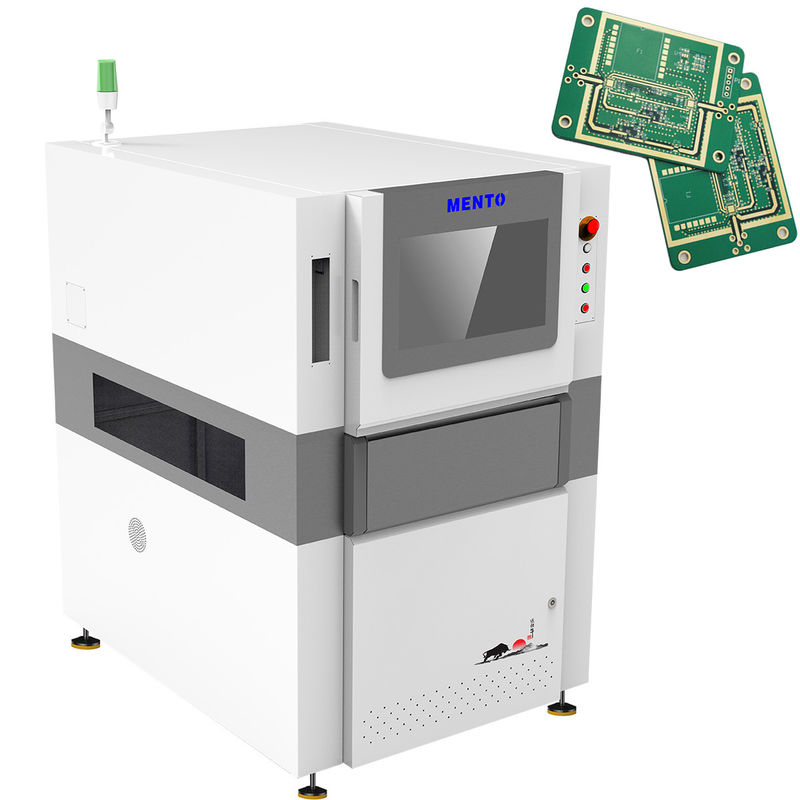

Online AOI features
1. High cost performance
2. Standard 5 million global exposure industrial color camera
3. The first company in China to use large-diameter telecentric lenses (can be targeted at products)
4. Independently developed optical system (light source consistency)
5. High stability integrated casting platform
Application scope: solder joint and mounted device inspection
This 3D AOI inspection machine is an ideal solution for PCB manufacturers looking to increase their production efficiency. With its automatic alignment, the machine can inspect multiple boards at once, which saves time and reduces production costs. Its high-resolution camera ensures that all defects on the PCB are detected, reducing the risk of faulty products reaching the market.
In conclusion, the 3D AOI Machine is a top-of-the-line PCB AOI equipment that offers accurate and fast inspection of printed circuit boards. As one of the leading AOI equipment manufacturers, we have ensured that the machine is equipped with the latest technology to meet the demands of modern PCB manufacturing processes. With its automatic alignment, high-resolution camera, and user-friendly software, the 3D AOI inspection machine is a must-have for any PCB manufacturer looking to improve their production efficiency and quality.
| Device model | K3412 | |
| Detection capacity | Detection items | Few pieces, wrong pieces, reverse, offset, false soldering, false soldering, more tin, less tin, continuous tin, tombstone, overturned, warped legs, damaged, multiple pieces, scratches, foreign matter |
| Scanning method | Stop&Go | |
| Optical system | Camera | 12MP high speed color industrial camera |
| Light Source | 4 DLP light source (raster phase shift technology) and red, green and blue (RGB) light source | |
| Resolution | 10μm & 15um (optional) | |
| Volume repeatability | <1% (standard verification block, 3Sigma) | |
| Maximum Plate Bending Compensation Value | ±3mm | |
| Detection Capability GRR | <10%at6o(+50%tolerance, 5μm resolution) | |
| Maximum detection height | 20mm/40mm | |
| Solution to shadow problem | Phase shift technology & bidirectional 3D Structured Light system | |
| Plate bending real-time compensation method | Plate Bend Compensation (Z-Tracking+Pad Referencing) | |
| Test screen | Color (3D and 2D images displayed together) | |
| Driving equipment | Servomotor+Screw Guide | |
| Moving speed | 800mm/s | |
| Minimum measurable product size | 50mmx50mm | |
| Maximum product measurable size | 400mmx500mm | |
| PCB thickness | 0.5~6mm | |
| Track width adjustment | Automatic width adjustment, manual width adjustment | |
| Circuit board conveying/fixing | Belt conveyor/pneumatic clamp fixing | |
| Conveying direction | From left to right, right to left | |
| Orbital height | 900±20mm | |
| Computer Configuration | Mainframe | CPU: Intel i5, RAM: DDR4-16G, GPU: GTX1660-6GB, SSD:250G, HDD: 2T |
| Monitor | 22"LED | |
| Operating system | Ubuntu | |
| Parameters | Overall size | W1000xD1380xH1600mm (excluding alarm light) |
| Weight | 1100KG | |
| Power source | AC220V/50~60Hz/2000W | |
| Air Pressure | 0.5Mpa | |
| Environmental requirements | Temperature: 5~40℃, relative humidity: 25%~80% (no frost) | |
| Upstream and downstream equipment communication | Standard SMEMA interface | |
| Alignment Method: | Automatic Alignment |
| Software: | Intuitive User Interface |
| Inspection Speed: | Up To 80 Cm²/s |
| Operating System: | Windows 10 |
| Resolution: | 10 μm |
| Weight: | 800 Kg |
| Camera Type: | 3D Digital Camera |
| Dimension: | L 1300 X W 1300 X H 1500 Mm |
| Lighting: | RGB LED |
| Power Supply: | AC 220V, 50/60Hz |
The 3D AOI inspection machine is designed to detect and inspect the surface of PCBs, providing high precision and accurate results. The inspection method used in this machine is 3D inspection, which makes it stand out from other AOI equipment manufacturers. With the ability to inspect up to 80 cm²/s, Mento-01 can complete the inspection process in a timely manner, improving the overall efficiency of the production line.
Mento-01 is compatible with Windows 10 operating system, which provides users with a user-friendly interface and easy-to-use features. The machine weighs around 800 kg and requires AC 220V, 50/60Hz power supply. Mento-01 has a supply ability of 1000/month, ensuring that the demand for the product is always met.
The product application occasions and scenarios for Mento-01 include electronic manufacturing, PCB assembly, and quality control. The 3D AOI inspection machine is an essential tool for electronic manufacturers to detect defects and ensure the quality of their products. Mento-01 is also suitable for PCB assembly, as it can quickly and accurately inspect the surface of the PCB and identify any defects. The machine can also be used in quality control to ensure that the product meets the required standards before being released into the market.
Overall, Mento-01 is a reliable and efficient 3D AOI inspection machine that provides accurate results and improves the production efficiency. With its high precision and fast inspection speed, Mento-01 is a must-have for electronic manufacturers and PCB assembly companies. The machine is easy to use and provides a user-friendly interface, making it suitable for both experienced and novice users.
Our 3D AOI machine product comes with comprehensive technical support and services to ensure optimal performance and efficiency. Our team of experts is available to assist with installation and setup, as well as provide ongoing training and maintenance support. Additionally, our product comes with a warranty and we offer repair and replacement services as needed. Our technical support and services are designed to minimize downtime and maximize productivity for our customers.
Product Packaging:
The 3D AOI Machine will be packaged in a sturdy cardboard box with ample padding to prevent any damage during transit. The machine will be securely placed in the center of the box and surrounded by foam inserts to ensure it does not move around during shipping.
Shipping:
The 3D AOI Machine will be shipped via a reputable courier service such as DHL or FedEx. The customer will be provided with a tracking number once the item has been shipped. Shipping times will vary depending on the destination country.
What is the brand name of this 3D AOI machine?
Mento
What is the model number of this 3D AOI machine?
Mento-01
Where is this 3D AOI machine manufactured?
China Dongguan
What certifications does this 3D AOI machine have?
ISO9001/ISO14001
What is the minimum order quantity for this 3D AOI machine?
1
Is the price negotiable for this 3D AOI machine?
Yes, the price is negotiable.
What is the delivery time for this 3D AOI machine?
1 week
What are the payment terms for this 3D AOI machine?
Online payment
What is the supply ability for this 3D AOI machine?
1000/month
