Product Details
Place of Origin: China dongguan
Brand Name: Mento
Certification: ISO9001/ISO14001
Model Number: K3205
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 1200mm*1500mm*1800mm
Delivery Time: 3week
Payment Terms: on line, L/C, T/T
Supply Ability: 1000/month
Inspection Speed: |
Up To 80 Cm²/s |
Camera Type: |
3D Digital Camera |
Operating System: |
Windows 10 |
Inspection Area: |
Up To 510 X 510 Mm |
Dimension: |
L 1300 X W 1300 X H 1500 Mm |
Weight: |
1100 Kg |
Lighting: |
RGB LED |
Software: |
Intuitive User Interface |
Inspection Speed: |
Up To 80 Cm²/s |
Camera Type: |
3D Digital Camera |
Operating System: |
Windows 10 |
Inspection Area: |
Up To 510 X 510 Mm |
Dimension: |
L 1300 X W 1300 X H 1500 Mm |
Weight: |
1100 Kg |
Lighting: |
RGB LED |
Software: |
Intuitive User Interface |

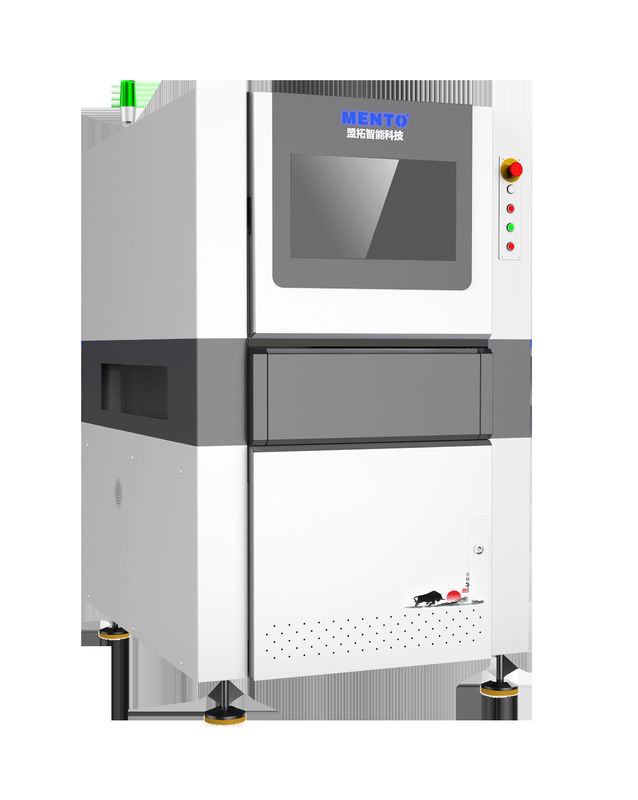

The machine has a compact design with dimensions of L 1300 X W 1300 X H 1500 mm, making it ideal for use in small to medium-sized production lines. It has an inspection speed of up to 80 cm²/s, which means that it can quickly scan and inspect PCBs with high accuracy.
One of the key features of this 3D AOI machine is its RGB LED lighting system. It provides bright and uniform illumination, allowing the machine to capture detailed images of the PCB surface. The system is also energy-efficient and has a longer lifespan compared to traditional lighting systems.
The machine is designed to work with PCBs that have a thickness ranging from 0.5 to 5 mm. This makes it a versatile piece of equipment that can be used for a wide range of PCB production applications. It also has an intuitive user interface that makes it easy to set up and operate.
Overall, the 3D AOI Machine is a reliable and efficient piece of equipment that can help streamline the PCB production process. Its advanced features, including its 3D imaging technology and RGB LED lighting system, make it a top-of-the-line PCB AOI equipment that can deliver consistent and high-quality results.
| Device model | K3205 | |
| Detection capacity | Detection items | Miss print, over solder, insufficient solder, solder bridging, solder paste tailing, shape anomany, offset |
| Scanning method | Stop&Go | |
| Optical system | Camera | 5MP high speed color industrial camera |
| Light Source | Dual DLP light source (raster phase shift technology) and red, green and blue (RGB) light source | |
| Resolution | 10μm & 15um (optional) | |
| Detection performance | Height accuracy (calibration module) | 1μm (using standard calibration block) |
| Volume repeatability | <1% (standard verification block, 3Sigma) | |
| Maximum Plate Bending Compensation Value | ±3mm | |
| Detection Capability GRR | <10%at6o(+50%tolerance, 5μm resolution) | |
| Maximum detection height | 500μm | |
| Solution to shadow problem | Phase shift technology & bidirectional 3D Structured Light system | |
| Plate bending real-time compensation method | Plate Bend Compensation (Z-Tracking+Pad Referencing) | |
| Test screen | Color (3D and 2D images displayed together) | |
| Driving equipment | Servomotor+Screw Guide | |
| Moving speed | 800mm/s | |
| Minimum measurable product size | 50mmx50mm | |
| Maximum product measurable size | 400mmx500mm | |
| PCB thickness | 0.5~6mm | |
| Track width adjustment | Automatic width adjustment, manual width adjustment | |
| Circuit board conveying/fixing | Belt conveyor/pneumatic clamp fixing | |
| Conveying direction | From left to right, right to left | |
| Orbital height | 900±20mm | |
| Computer Configuration | Mainframe | CPU: Intel i5, RAM: DDR4-16G, GPU: GTX1660-6GB, SSD:250G, HDD: 2T |
| Monitor | 22"LED | |
| Operating system | Ubuntu | |
| Parameters | Overall size | W1350xD1000xH1600mm (excluding alarm light) |
| Weight | 1100KG | |
| Power source | AC220V/50~60Hz/2000W | |
| Air Pressure | 0.5Mpa | |
| Software Supported Input Formats | Support Gerber format (274X), ODB++ | |
| Statistical management tools |
Histogram,X-bar&R -Chart ,X-bar&S -C hart ,C p&C pk, %Gage R & R,SPI Daily/Weekly/Monthly Reports, real-time SPC& Multiple Display |
|
| Environmental requirements | Temperature: 5~40℃, relative humidity: 25%~80% (no frost) | |
| Upstream and downstream equipment communication | Standard SMEMA interface | |
| Product Attribute | Value |
| Product Name | 3D AOI Inspection Machine |
| Alignment Method | Automatic Alignment |
| Inspection Types | Solder Joint, Component, Defect |
| Resolution | 10 μm |
| Weight | 800 Kg |
| Software | Intuitive User Interface |
| Camera Type | 3D Digital Camera |
| Dimension | L 1350 X W 1000 X H 1600 Mm |
| Inspection Area | Up To 510 X 510 Mm |
| Power Supply | AC 220V, 50/60Hz |
| PCB Thickness | 0.5 - 5 Mm |
Mento-01 is an ideal machine for aoi pcb inspection, providing high-accuracy and high-speed inspection for pcb thicknesses ranging from 0.5 - 5 mm. The machine uses advanced 3D inspection technology, allowing it to detect defects such as scratches, cracks, and other surface defects that are difficult to detect with 2D inspection methods.
Mento-01 is suitable for a wide range of application occasions and scenarios, including but not limited to:
The machine is easy to operate and requires minimal training, making it ideal for use in both small and large production facilities. The machine's compact size and dimensions of L 1300 X W 1300 X H 1500 mm make it easy to integrate into existing production lines.
At Mento, we offer flexible payment terms and a negotiable price, making it easy for customers to acquire the machine. We have a supply ability of 1000 units per month, ensuring that we can meet the needs of both small and large-scale production facilities.
Ordering Mento-01 is easy, with a minimum order quantity of 1 unit and a delivery time of just 1 week. The machine operates on AC 220V, 50/60Hz power supply, and has a high resolution of 10 μm, ensuring high-quality inspection results every time.
The 3D AOI Machine product technical support and services include:
- Installation guidance and assistance
- User training and education on machine operation and maintenance
- Troubleshooting and diagnosis of machine issues
- Repair and replacement of faulty components
- Software updates and upgrades
- Calibration and alignment services
- Remote technical support
- On-site technical support and maintenance
Product Packaging:
Shipping:
Q: What is the brand name of the 3D AOI Machine?
A: The brand name of the 3D AOI Machine is Mento.
Q: What is the model number of the 3D AOI Machine?
A: The model number of the 3D AOI Machine is Mento-01.
Q: Where is the 3D AOI Machine manufactured?
A: The 3D AOI Machine is manufactured in China Dongguan.
Q: What certifications does the 3D AOI Machine have?
A: The 3D AOI Machine is certified with ISO9001/ISO14001.
Q: What is the minimum order quantity for the 3D AOI Machine?
A: The minimum order quantity for the 3D AOI Machine is 1.
