Product Details
Place of Origin: China dongguan
Brand Name: Mento
Certification: ISO9001/ISO14001
Model Number: K3205
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: W1000mmxD1380mmxH1600mm(without foot 100±20mm)
Delivery Time: 3 week
Payment Terms: on line, L/C, T/T
Supply Ability: 1000/month
Alignment Method: |
Automatic Alignment |
Resolution: |
10 μm |
Lighting: |
RGB LED |
Software: |
Intuitive User Interface |
Dimension: |
L 1300 X W 1300 X H 1500 Mm |
Camera Type: |
3D Digital Camera |
Operating System: |
Windows 10 |
Pcb Thickness: |
0.5 - 5 Mm |
Alignment Method: |
Automatic Alignment |
Resolution: |
10 μm |
Lighting: |
RGB LED |
Software: |
Intuitive User Interface |
Dimension: |
L 1300 X W 1300 X H 1500 Mm |
Camera Type: |
3D Digital Camera |
Operating System: |
Windows 10 |
Pcb Thickness: |
0.5 - 5 Mm |

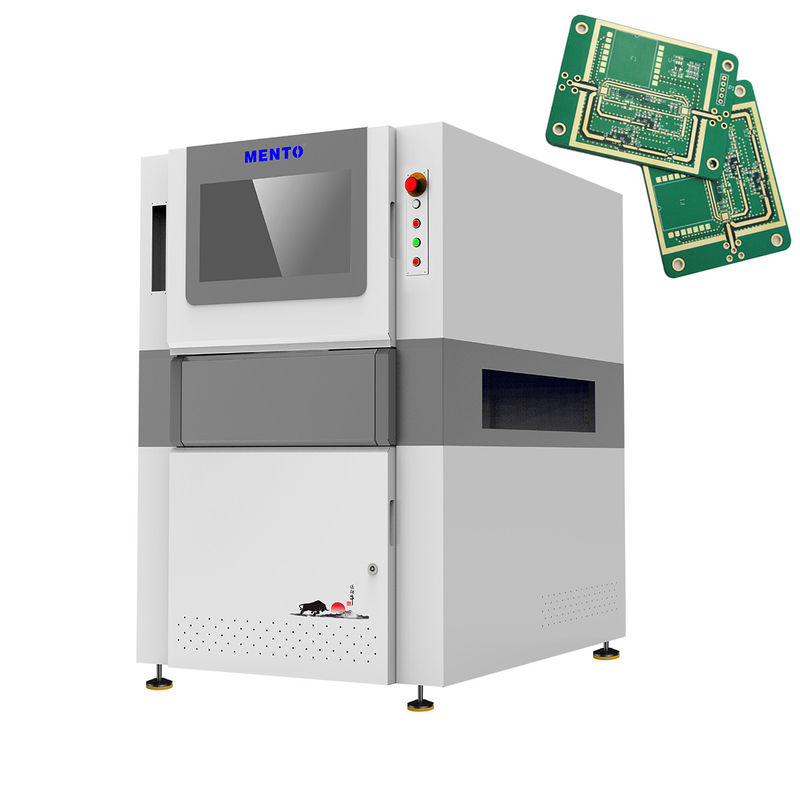

Online AOI features
1. High cost performance
2. Standard 5 million global exposure industrial color camera
3. The first company in China to use large-diameter telecentric lenses (can be targeted at products)
4. Independently developed optical system (light source consistency)
5. High stability integrated casting platform
Application scope: solder joint and mounted device inspection
| 3D Solder Paste Inspection | ||
| Device model | K3205 | |
| Detection capacity | Detection items | Miss print, over solder, insufficient solder, solder bridging, solder paste tailing, shape anomany, offset |
| Scanning method | Stop&Go | |
| Optical system | Camera | 5MP high speed color industrial camera |
| Light Source | Dual DLP light source (raster phase shift technology) and red, green and blue (RGB) light source | |
| Resolution | 10μm & 15um (optional) | |
| Detection performance | Height accuracy (calibration module) | 1μm (using standard calibration block) |
| Volume repeatability | <1% (standard verification block, 3Sigma) | |
| Maximum Plate Bending Compensation Value | ±3mm | |
| Detection Capability GRR | <10%at6o(+50%tolerance, 5μm resolution) | |
| Maximum detection height | 500μm | |
| Solution to shadow problem | Phase shift technology & bidirectional 3D Structured Light system | |
| Plate bending real-time compensation method | Plate Bend Compensation (Z-Tracking+Pad Referencing) | |
| Test screen | Color (3D and 2D images displayed together) | |
| Driving equipment | Servomotor+Screw Guide | |
| Moving speed | 800mm/s | |
| Minimum measurable product size | 50mmx50mm | |
| Maximum product measurable size | 400mmx500mm | |
| PCB thickness | 0.5~6mm | |
| Track width adjustment | Automatic width adjustment, manual width adjustment | |
| Circuit board conveying/fixing | Belt conveyor/pneumatic clamp fixing | |
| Conveying direction | From left to right, right to left | |
| Orbital height | 900±20mm | |
| Computer Configuration | Mainframe | CPU: Intel i5, RAM: DDR4-16G, GPU: GTX1660-6GB, SSD:250G, HDD: 2T |
| Monitor | 22"LED | |
| Operating system | Ubuntu | |
| Parameters | Overall size | W1350xD1000xH1600mm (excluding alarm light) |
| Weight | 1100KG | |
| Power source | AC220V/50~60Hz/2000W | |
| Air Pressure | 0.5Mpa | |
| Software Supported Input Formats | Support Gerber format (274X), ODB++ | |
| Statistical management tools |
Histogram,X-bar&R -Chart ,X-bar&S -C hart ,C p&C pk, %Gage R & R,SPI Daily/Weekly/Monthly Reports, real-time SPC& Multiple Display |
|
| Environmental requirements | Temperature: 5~40℃, relative humidity: 25%~80% (no frost) | |
| Upstream and downstream equipment communication | Standard SMEMA interface | |
One of the key features of this PCB inspection system is its ability to handle PCBs with thicknesses ranging from 0.5 to 5 mm. This makes it suitable for use with a wide range of PCBs, from thin and flexible boards to thicker and more rigid ones. Additionally, the machine has a weight of 800 kg, making it sturdy and durable enough to withstand the rigors of industrial use.
The 3D AOI Machine is built on the Windows 10 operating system, which provides a reliable and user-friendly interface for operators to work with. This makes it easy to set up and configure the machine for specific inspection tasks, as well as to monitor its performance and output.
This 3D AOI Machine is a top-of-the-line pcb aoi equipment that features an intuitive user interface for easy operation. With dimensions of L 1300 X W 1300 X H 1500 Mm, this machine is designed to fit in most workshops. It comes with a 3D digital camera and RGB LED lighting for accurate aoi pcb inspection. It is compatible with PCBs ranging from 0.5 - 5 Mm in thickness.
| Product Attribute | Value |
| Inspection Speed | Up To 80 Cm²/s |
| Inspection Area | Up To 510 X 510 Mm |
| Weight | 800 Kg |
| Lighting | RGB LED |
| Software | Intuitive User Interface |
| Operating System | Windows 10 |
| Power Supply | AC 220V, 50/60Hz |
| Inspection Method | 3D Inspection |
| Inspection Types | Solder Joint, Component, Defect |
| Camera Type | 3D Digital Camera |
The Mento-01 3D AOI Machine is equipped with RGB LED lighting, which allows for accurate and efficient inspection of solder joints, components, and defects. It has an impressive inspection speed of up to 80 cm²/s, ensuring a fast and efficient inspection process. The machine's intuitive user interface software makes it easy for operators to operate and customize the inspection process to their needs.
With a weight of 800 Kg and a supply ability of 1000/month, the Mento-01 3D AOI Inspection Machine is a robust and durable product, suitable for a variety of industrial applications. Whether you are in the electronics manufacturing industry or in the automotive industry, this machine can help improve your production efficiency and ensure high-quality products.
Some of the product application occasions and scenarios for the Mento-01 3D AOI Machine include:
Overall, the Mento-01 3D AOI Machine is a versatile and reliable product that can help improve the quality and efficiency of your production process. With a delivery time of only 1 week and on-line payment terms, it is a convenient and accessible option for businesses and industries in need of a high-quality inspection system.
Our 3D AOI Machine product technical support team is dedicated to providing our customers with comprehensive technical support and services. Our team of experts is available to assist with any questions or concerns you may have regarding the operation, maintenance, or troubleshooting of your 3D AOI Machine.
Our technical support services include:
We understand the importance of keeping your production line operating at peak efficiency, and our technical support team is committed to ensuring that your 3D AOI Machine is always running smoothly. If you have any questions or need assistance, please do not hesitate to contact us.
Product Packaging:
The 3D AOI Machine will be securely packaged in a wooden crate to ensure its safety during transportation. The machine will be wrapped in protective foam and securely fastened to prevent any damage during shipping.
Shipping:
The 3D AOI Machine can be shipped globally via air or sea freight. Shipping fees and delivery time will depend on the destination and preferred method of transportation. Please contact us for more information regarding shipping.
What is the brand name of this 3D AOI machine?
Brand Name: Mento
2.What is the model number of this 3D AOI machine?
Model Number: Mento-01
3.Where is this 3D AOI machine manufactured?
Place of Origin: China dongguan
4.Does this 3D AOI machine have any certifications?
Certification: ISO9001/ISO14001
5.What is the minimum order quantity for this 3D AOI machine?
Minimum Order Quantity: 1
6.Is the price negotiable for this 3D AOI machine?
Price: Negotiable
7.What is the delivery time for this 3D AOI machine?
Delivery Time: 3week
8.What are the payment terms for this 3D AOI machine?
Payment Terms: on line
9.What is the supply ability of this 3D AOI machine?
Supply Ability: 1000/month
