Dongguan MENTO Intelligent Technology Co., Ltd. info@mento-mv.com 00-86-13410031559
Product Details
Place of Origin: China dongguan
Brand Name: Mento
Certification: ISO9001/ISO14001
Model Number: K3212
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 3week
Payment Terms: on line, L/C, T/T
Supply Ability: 1000/month
Inspection Speed: |
Up To 80 Cm²/s |
Camera Type: |
3D Digital Camera |
Pcb Thickness: |
0.5 - 5 Mm |
Dimension: |
L 1300 X W 1300 X H 1500 Mm |
Inspection Method: |
3D Inspection |
Software: |
Intuitive User Interface |
Power Supply: |
AC 220V, 50/60Hz |
Operating System: |
Windows 10 |
Inspection Speed: |
Up To 80 Cm²/s |
Camera Type: |
3D Digital Camera |
Pcb Thickness: |
0.5 - 5 Mm |
Dimension: |
L 1300 X W 1300 X H 1500 Mm |
Inspection Method: |
3D Inspection |
Software: |
Intuitive User Interface |
Power Supply: |
AC 220V, 50/60Hz |
Operating System: |
Windows 10 |

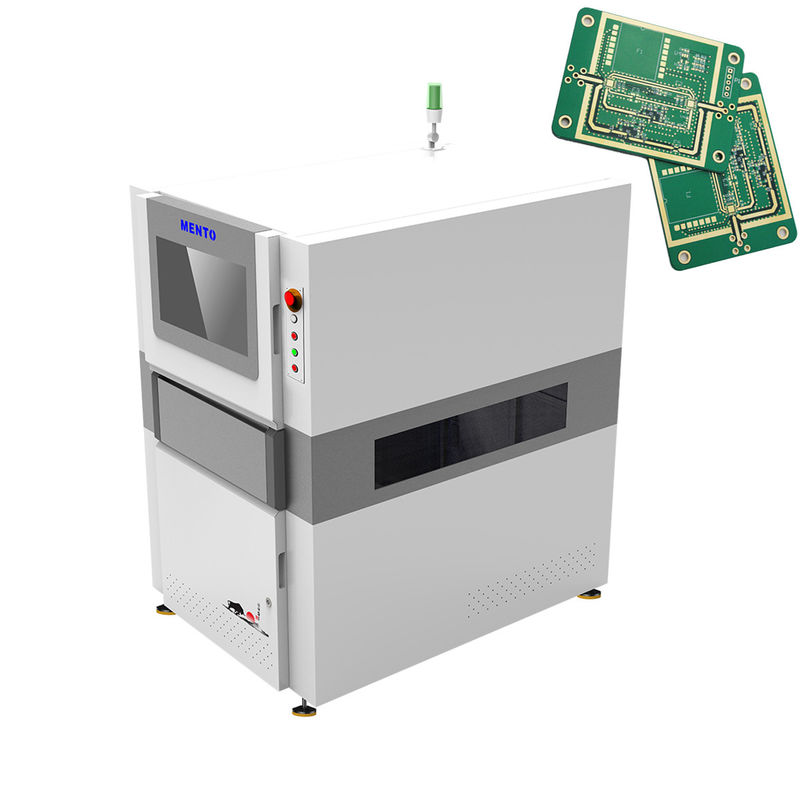

Online AOI features
1. High cost performance
2. Standard 5 million global exposure industrial color camera
3. The first company in China to use large-diameter telecentric lenses (can be targeted at products)
4. Independently developed optical system (light source consistency)
5. High stability integrated casting platform
Application scope: solder joint and mounted device inspection
The 3D AOI Machine is an essential tool for any manufacturing environment. With its advanced inspection capabilities, it can help manufacturers improve the quality of their products and reduce production costs. This machine is designed to operate at high speeds, making it an excellent choice for high-volume production lines.
The 3D AOI Machine is a reliable and robust system that is built to last. Its durable construction ensures that it can withstand the rigors of a production environment. With its high-performance capabilities, this machine is the perfect solution for any manufacturing facility that needs to ensure the quality of its products.
| Device model | K3212 | |
| Detection capacity | Detection items | Miss print, over solder, insufficient solder, solder bridging, solder paste tailing, shape anomany, offset |
| Scanning method | Stop&Go | |
| Optical system | Camera | 12MP high speed color industrial camera |
| Light Source | Dual DLP light source (raster phase shift technology) and red, green and blue (RGB) light source | |
| Resolution | 10μm & 15um (optional) | |
| Detection performance | Height accuracy (calibration module) | 1μm (using standard calibration block) |
| Volume repeatability | <1% (standard verification block, 3Sigma) | |
| Maximum Plate Bending Compensation Value | ±3mm | |
| Detection Capability GRR | <10%at6o(+50%tolerance, 5μm resolution) | |
| Maximum detection height | 500μm | |
| Solution to shadow problem | Phase shift technology & bidirectional 3D Structured Light system | |
| Plate bending real-time compensation method | Plate Bend Compensation (Z-Tracking+Pad Referencing) | |
| Test screen | Color (3D and 2D images displayed together) | |
| Driving equipment | Servomotor+Screw Guide | |
| Moving speed | 800mm/s | |
| Minimum measurable product size | 50mmx50mm | |
| Maximum product measurable size | 400mmx500mm | |
| PCB thickness | 0.5~6mm | |
| Track width adjustment | Automatic width adjustment, manual width adjustment | |
| Circuit board conveying/fixing | Belt conveyor/pneumatic clamp fixing | |
| Conveying direction | From left to right, right to left | |
| Orbital height | 900±20mm | |
| Computer Configuration | Mainframe | CPU: Intel i5, RAM: DDR4-16G, GPU: GTX1660-6GB, SSD:250G, HDD: 2T |
| Monitor | 22"LED | |
| Operating system | Ubuntu | |
| Parameters | Overall size | W1350xD1000xH1600mm (excluding alarm light) |
| Weight | 1100KG | |
| Power source | AC220V/50~60Hz/2000W | |
| Air Pressure | 0.5Mpa | |
| Software Supported Input Formats | Support Gerber format (274X), ODB++ | |
| Statistical management tools |
Histogram,X-bar&R -Chart ,X-bar&S -C hart ,C p&C pk, %Gage R & R,SPI Daily/Weekly/Monthly Reports, real-time SPC& Multiple Display |
|
| Environmental requirements | Temperature: 5~40℃, relative humidity: 25%~80% (no frost) | |
| Upstream and downstream equipment communication | Standard SMEMA interface | |
| Inspection Types | Solder Joint, Component, Defect |
| Lighting | RGB LED |
| Pcb Thickness | 0.5 - 5 Mm |
| Camera Type | 3D Digital Camera |
| Inspection Method | 3D Inspection |
| Weight | 800 Kg |
| Inspection Area | Up To 510 X 510 Mm |
| Alignment Method | Automatic Alignment |
| Resolution | 10 μm |
| Software | Intuitive User Interface |
With its advanced technology and features, Mento-01 is an ideal solution for AOI PCB inspection, which is essential for ensuring the quality of electronic components and the reliability of electronic products. This machine can inspect the solder joint, component, and defect of PCBs with high accuracy and efficiency, providing reliable and accurate inspection results.
The Mento-01 3D AOI machine is suitable for a wide range of applications in the electronic industry, such as PCB manufacturing, assembly, and testing. It can be used in various scenarios, including production lines, R&D labs, and quality control departments.
The machine is easy to operate, thanks to its user-friendly Windows 10 operating system. It comes with a powerful software that can analyze and display the inspection results in real-time, making it easier to identify and fix any issues that may arise during the inspection process.
The Mento-01 3D AOI machine has a dimension of L 1300 X W 1300 X H 1500 Mm and weighs around 800 Kg, making it a relatively large and heavy machine. However, it is highly durable and can withstand harsh working conditions. It operates on AC 220V, 50/60Hz power supply, making it compatible with most power grids worldwide.
If you are looking for a reliable, accurate, and efficient AOI PCB inspection system, the Mento-01 3D AOI machine is an excellent choice. It is available for a negotiable price, with a minimum order quantity of 1 and a delivery time of 1 week. The payment terms are online, and the supply ability is 1000/month, ensuring a fast and hassle-free buying process.
The 3D AOI Machine product comes with a comprehensive technical support and services package to ensure optimal performance and minimal downtime. Our team of experienced engineers and technicians are available to provide the following services:
- Installation and setup assistance
- On-site training for operators and maintenance staff
- 24/7 remote technical support
- Regular software updates and upgrades
- Preventive maintenance and calibration services
- Repair and replacement of faulty parts
- Optional annual maintenance contracts for extended support and savings
Our goal is to ensure that our customers get the most out of their investment in our 3D AOI Machine product, and we are committed to providing prompt and reliable support whenever it is needed.
Product Packaging:
Shipping Information:
Q1: What is the brand name of the 3D AOI machine?
A1: The brand name of the 3D AOI machine is Mento.
Q2: What is the model number of the 3D AOI machine?
A2: The model number of the 3D AOI machine is Mento-01.
Q3: Where is the 3D AOI machine manufactured?
A3: The 3D AOI machine is manufactured in China Dongguan.
Q4: What certifications does the 3D AOI machine have?
A4: The 3D AOI machine has ISO9001/ISO14001 certifications.
Q5: What is the minimum order quantity for the 3D AOI machine?
A5: The minimum order quantity for the 3D AOI machine is 1.
Q6: Is the price of the 3D AOI machine negotiable?
A6: Yes, the price of the 3D AOI machine is negotiable.
Q7: What is the delivery time for the 3D AOI machine?
A7: The delivery time for the 3D AOI machine is 3 week.
Q8: What are the payment terms for the 3D AOI machine?
A8: The payment terms for the 3D AOI machine are on line.
Q9: What is the supply ability of the 3D AOI machine?
A9: The supply ability of the 3D AOI machine is 1000/month.
