Product Details
Place of Origin: Dongguan,China
Brand Name: MENTO
Certification: FCC,ROHS,ISO9000,ISO14001
Model Number: M2012EL
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: W1000mmxD1380mmxH1600mm(without foot 100±20mm)
Delivery Time: 3Weeks
Payment Terms: T/T,
Supply Ability: 1000PCS/M
Inspection Speed: |
Up To 5000 Components Per Hour |
Industrial Camera: |
Standard 5 Million Global Exposure Industrial Color Camera |
Software: |
Intuitive User Interface With Customizable Inspection Settings |
Performance: |
High Cost Performance |
Power Supply: |
AC 100-240V, 50/60Hz |
Platform: |
High Stability Integrated Casting Platform |
Lighting System: |
Multi-angle LED Lighting |
Connectivity: |
Ethernet, USB, And RS-232 |
Inspection Speed: |
Up To 5000 Components Per Hour |
Industrial Camera: |
Standard 5 Million Global Exposure Industrial Color Camera |
Software: |
Intuitive User Interface With Customizable Inspection Settings |
Performance: |
High Cost Performance |
Power Supply: |
AC 100-240V, 50/60Hz |
Platform: |
High Stability Integrated Casting Platform |
Lighting System: |
Multi-angle LED Lighting |
Connectivity: |
Ethernet, USB, And RS-232 |

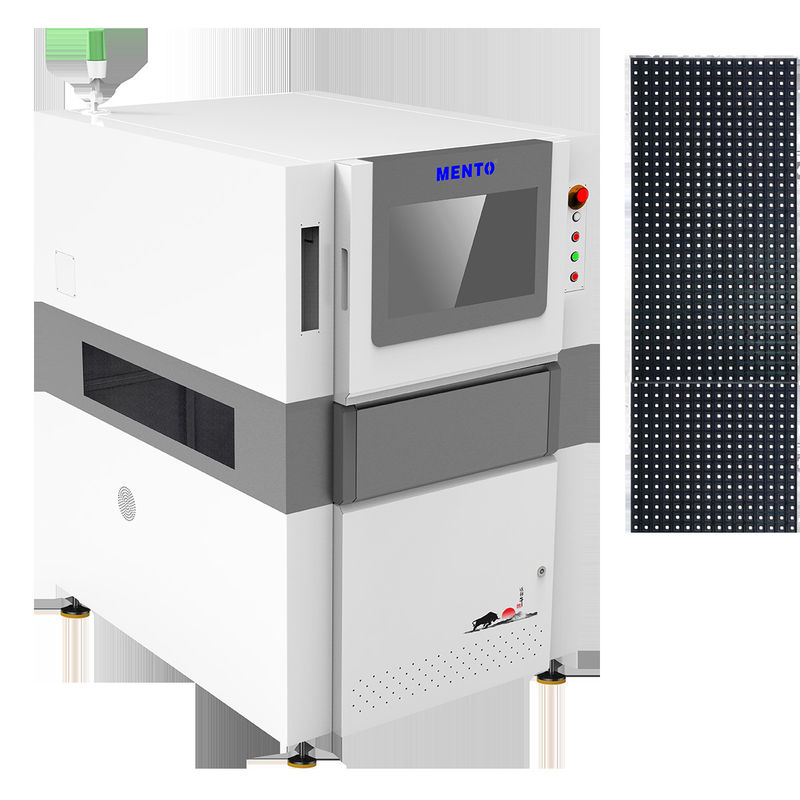

| M20EL Series Mini LED luminescence inspection | |||
| Model | M2012EL | ||
| Inspection | Inspection items | Bad die, over luminescence, under luminescence, chroma anomaly | |
| Inspection method | Image processing, machine learning | ||
| Optical | Camera | 12MP | |
| Lens | High resolution bi-telecentric lens | ||
| Resolution | 10μm | 15μm | |
| Light Source | RGB | ||
| Computer configuration | PC | CPU:Inteli7, RAM:DDR4-32G, GPU:GTX1660-6G SSD:250G, HDD:2T | |
| Monitor | 22 "LED | ||
| Operating System | Windows 10 Professional 64-bit/Ubuntu | ||
| Performance | Maximum allowable component height | Upper 20mm, Lower 30mm(Customizable) | |
| PCB thickness | 1~5mm | ||
| Driver | Servo motor + Screw guide | ||
| Movement speed | Max:600mm/s | ||
| PCB fixture height | 900+20mm (from floor to fixture surface) | ||
| Specification | PCB size | Max:600mmx500mm(single track, track width adjustable) | |
| Power | AC220V/50Hz/2000W | ||
| Dimensions | W1350xD1000xH1650mm(without alarm light) | ||
| Weight | ≈1100KG | ||
| Air Pressure Requirement | ≥0.5Mpa | ||
| Environmental requirements | Temperature:5~40℃, Relative Humidity:25%~80%(no frost) | ||
| Upstream and downstream communication | Standard SMEMA interface /communication with rework equipment | ||
This equipment is equipped with a multi-angle LED lighting system that provides clear and accurate images of the components being inspected. The lighting system is optimized for the inspection of miniature components, ensuring that even the smallest details are captured and analyzed.
The LED AOI Equipment also features an independently developed optical system that enhances the accuracy and reliability of the inspection process. The optical system is designed to minimize the impact of ambient light and ensure consistent inspection results, even in challenging lighting conditions.
This Mini LED Appearance Inspection Equipment is compatible with Windows 10 operating system, providing a user-friendly interface that is easy to navigate. The software is designed to be intuitive, allowing operators to quickly and easily set up inspection parameters and analyze inspection results.
Our LED AOI Equipment is perfect for Mini LED display Module repair, Mini LED, and Mini LED rework equipment needs.
The minimum order quantity for Mento LED AOI Equipment is 1, and the delivery time is three weeks. The payment terms are T/T, and the supply ability is 1000PCS/M. The power supply for this equipment is AC 100-240V, 50/60Hz.
The optical system of Mento LED AOI Equipment is an independently developed optical system. The camera system is equipped with high-resolution cameras and advanced image processing algorithms. The lighting system is multi-angle LED lighting, which ensures accurate and clear inspection results. The platform of this equipment is a high stability integrated casting platform, which provides a stable and reliable working environment for inspection.
Mento LED AOI Equipment has wide application occasions and scenarios. It can be used for inspection and rework of mini LED displays, LED backlight modules, and other LED related products. It is suitable for production lines, R&D centers, and repair centers. The equipment provides accurate, efficient, and reliable inspection results, which can greatly improve the production efficiency and reduce the production cost.
Our LED AOI Equipment product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction:
Our experienced team of technicians and engineers are dedicated to providing timely and effective support to ensure your equipment operates at peak performance.
