Product Details
Place of Origin: Dongguan,China
Brand Name: MENTO
Certification: FCC,ROHS,ISO9000,ISO14001
Model Number: M1020EL
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: W1000mmxD1380mmxH1600mm(without foot 100±20mm)
Delivery Time: 3Weeks
Payment Terms: T/T,
Supply Ability: 1000PCS/M
Software: |
Intuitive User Interface With Customizable Inspection Settings |
Inspection Speed: |
Up To 5000 Components Per Hour |
Resolution: |
10 Microns |
Connectivity: |
Ethernet, USB, And RS-232 |
Application: |
Inspection Of LED Components And PCBs |
Camera System: |
High-resolution Cameras With Advanced Image Processing Algorithms |
Optical System: |
Independently Developed Optical System |
Operating System: |
Windows 10 |
Software: |
Intuitive User Interface With Customizable Inspection Settings |
Inspection Speed: |
Up To 5000 Components Per Hour |
Resolution: |
10 Microns |
Connectivity: |
Ethernet, USB, And RS-232 |
Application: |
Inspection Of LED Components And PCBs |
Camera System: |
High-resolution Cameras With Advanced Image Processing Algorithms |
Optical System: |
Independently Developed Optical System |
Operating System: |
Windows 10 |
| M20EL Series Mini LED luminescence inspection | |||
| Model | M2012EL | ||
| Inspection | Inspection items | Bad die, over luminescence, under luminescence, chroma anomaly | |
| Inspection method | Image processing, machine learning | ||
| Optical | Camera | 12MP | |
| Lens | High resolution bi-telecentric lens | ||
| Resolution | 10μm | 15μm | |
| Light Source | RGB | ||
| Computer configuration | PC | CPU:Inteli7, RAM:DDR4-32G, GPU:GTX1660-6G SSD:250G, HDD:2T | |
| Monitor | 22 "LED | ||
| Operating System | Windows 10 Professional 64-bit/Ubuntu | ||
| Performance | Maximum allowable component height | Upper 20mm, Lower 30mm(Customizable) | |
| PCB thickness | 1~5mm | ||
| Driver | Servo motor + Screw guide | ||
| Movement speed | Max:600mm/s | ||
| PCB fixture height | 900+20mm (from floor to fixture surface) | ||
| Specification | PCB size | Max:600mmx500mm(single track, track width adjustable) | |
| Power | AC220V/50Hz/2000W | ||
| Dimensions | W1350xD1000xH1650mm(without alarm light) | ||
| Weight | ≈1100KG | ||
| Air Pressure Requirement | ≥0.5Mpa | ||
| Environmental requirements | Temperature:5~40℃, Relative Humidity:25%~80%(no frost) | ||
| Upstream and downstream communication | Standard SMEMA interface /communication with rework equipment | ||

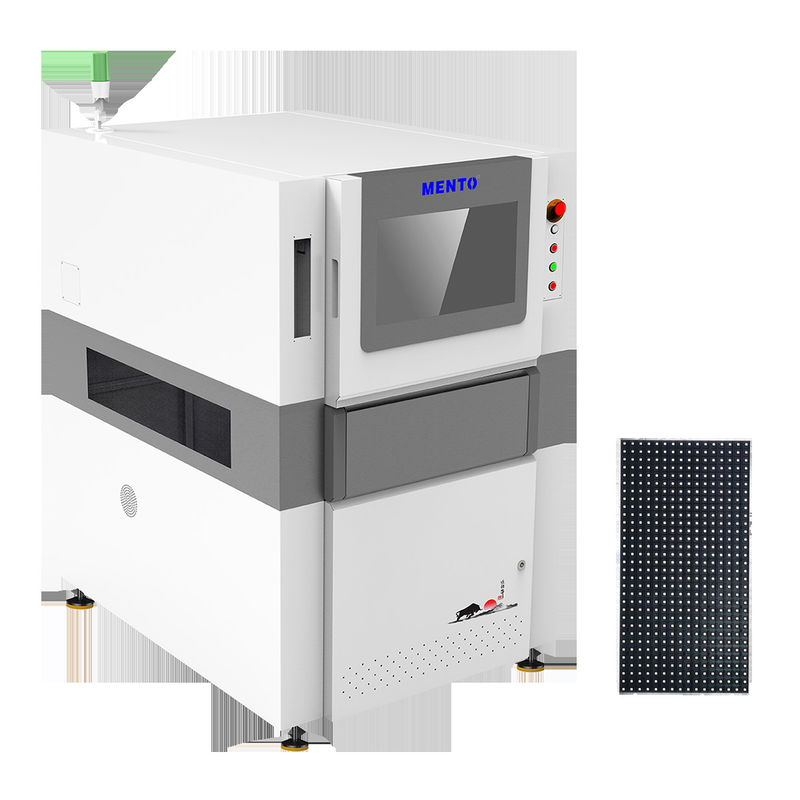

Equipped with a standard 5 million global exposure industrial color camera, the LED AOI Equipment is capable of providing high-quality images that allow for accurate detection of defects and abnormalities in mini LED components. Additionally, with a resolution of 10 microns, this equipment is able to detect even the smallest defects, ensuring that only high-quality components make it through the production line.
The LED AOI Equipment is an automated optical inspection equipment that is designed to make the inspection process faster, more efficient, and more accurate. With its high stability integrated casting platform, this equipment provides a stable and reliable base for the inspection process, ensuring that every component is inspected with the utmost precision.
One of the key benefits of the LED AOI Equipment is its ability to provide mini LED rework. This means that if any defects are detected during the inspection process, the equipment is able to automatically correct these defects, ensuring that only high-quality components make it through the production line. This not only reduces waste and improves efficiency but also ensures that customers receive only the best products.
New Display Inspection Equipment, Mini LED Inspection Equipment, Mini LED
The MENTO LED AOI Equipment is certified by FCC, ROHS, ISO9000, and ISO14001. With a minimum order quantity of 1, a delivery time of 3 weeks, and payment terms of T/T, customers can be assured of timely and efficient service. The equipment also has a supply ability of 1000PCS/M, which means that it is readily available for large-scale production.
The equipment's operating system is Windows 10, and it has connectivity options of Ethernet, USB, and RS-232. This makes it easy to integrate the equipment into the existing production line. The MENTO LED AOI Equipment can inspect up to 5000 components per hour, making it efficient and fast.
The MENTO LED AOI Equipment is perfect for various application occasions and scenarios. It can be used in the production of Mini LED displays, smartphones, tablets, and other electronic devices. The equipment can inspect the products' quality and ensure that they meet the required standards. It can also be used in the automotive and aerospace industries, where precision is essential.
In conclusion, the MENTO LED AOI Equipment is a reliable and efficient solution for automated optical inspection. Its high-resolution, fast inspection speed, and connectivity options make it a perfect fit for various industries. With its certification and supply ability, customers can be assured of its quality and availability. Contact us today to learn more about this product and how it can benefit your business.
The LED AOI Equipment product comes with a range of technical support and services to assist you with any issues or questions you may have. Our team of experts is available to provide remote technical support to help you troubleshoot problems and resolve any issues quickly. We also offer onsite support services to ensure your equipment is running smoothly and efficiently. Our product technical support and services include:
We are committed to providing our customers with the best support and services possible to ensure the optimal performance of our products. Please do not hesitate to contact us if you require any assistance or have any questions.
