Home > products > AOI Inspection Equipment > OEM SMT SPI Machine Automatic Optical Inspection System

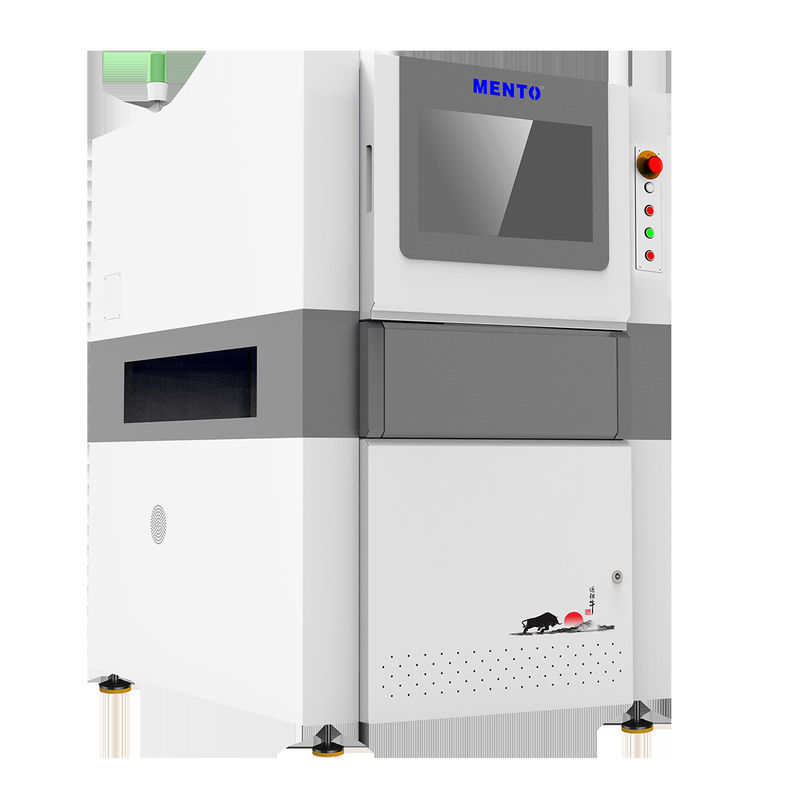

OEM SMT SPI Machine Automatic Optical Inspection System

Product Details

Place of Origin: China dongguan

Brand Name: Mento

Certification: ISO9001/ISO14001

Model Number: K3412

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: W1000mmxD1380mmxH1600mm(without foot 100±20mm)

Delivery Time: 3week

Payment Terms: on line

Supply Ability: 1000/month

Get Best Price
Product Details
Highlight:

OEM smt spi machine

,

Automatic smt spi machine

,

SPI automatic optical inspection system

Inspection Resolution:
High Resolution
Inspection Software:
Advanced Inspection Software
Inspection Speed:
High Speed
Application:
Automated Optical Inspection
Operating System:
Windows-based
Inspection Area:
Large Inspection Area
Connectivity:
Ethernet And USB Connectivity
Inspection Accuracy:
High Accuracy
Inspection Resolution:
High Resolution
Inspection Software:
Advanced Inspection Software
Inspection Speed:
High Speed
Application:
Automated Optical Inspection
Operating System:
Windows-based
Inspection Area:
Large Inspection Area
Connectivity:
Ethernet And USB Connectivity
Inspection Accuracy:
High Accuracy
Product Description

Product Description:

Our AOI Inspection Equipment utilizes a high-resolution camera system to capture detailed images of your products. This camera system is capable of capturing even the smallest defects and imperfections. With a high-resolution camera system, you can be sure that you are getting accurate and reliable results every time.

Our AOI Inspection Equipment is designed to be fast and efficient, allowing you to inspect your products quickly and accurately. With high-speed inspection capability, you can keep up with even the most demanding production schedules. This means that you can produce high-quality products quickly and efficiently, without sacrificing quality.

Our AOI Inspection Equipment is perfect for manufacturers who require high-resolution, high-accuracy inspection of their products. Our automated optical inspection system is designed to meet the demanding needs of modern manufacturing. Whether you are producing electronic components, printed circuit boards, or other high-tech products, our AOI Inspection Equipment can help you ensure that your products meet the highest standards of quality.

Our AOI Inspection Equipment is manufactured in China to the highest standards of quality and reliability. We use only the best materials and components to ensure that our equipment is durable, reliable, and long-lasting. Whether you are a small manufacturer or a large multinational corporation, our AOI Inspection Equipment can help you improve the quality of your products and increase your efficiency.

In summary, if you are looking for an automated optical inspection solution that offers high-resolution, high-accuracy inspection, look no further than our AOI Inspection Equipment. Made in China to the highest standards of quality and reliability, our AOI Inspection Equipment is perfect for manufacturers who demand the best. With a high-resolution camera system, high-speed inspection capability, and a proven track record of quality and reliability, our AOI Inspection Equipment is the perfect choice for your manufacturing needs.



Device model K3412
Detection capacity Detection items
Scanning method Stop&Go
Optical system Camera 12MP high speed color industrial camera
Light Source 4 DLP light source (raster phase shift technology) and red, green and blue (RGB) light source
Resolution 10μm & 15um (optional)
Volume repeatability <1% (standard verification block, 3Sigma)
Maximum Plate Bending Compensation Value ±3mm
Detection Capability GRR <10%at6o(+50%tolerance, 5μm resolution)
Maximum detection height 20mm/40mm
Solution to shadow problem Phase shift technology & bidirectional 3D Structured Light system
Plate bending real-time compensation method Plate Bend Compensation (Z-Tracking+Pad Referencing)
Test screen Color (3D and 2D images displayed together)
Driving equipment Servomotor+Screw Guide
Moving speed 800mm/s
Minimum measurable product size 50mmx50mm
Maximum product measurable size 400mmx500mm
PCB thickness 0.5~6mm
Track width adjustment Automatic width adjustment, manual width adjustment
Circuit board conveying/fixing Belt conveyor/pneumatic clamp fixing
Conveying direction From left to right, right to left
Orbital height 900±20mm
Computer Configuration Mainframe CPU: Intel i5, RAM: DDR4-16G, GPU: GTX1660-6GB, SSD:250G, HDD: 2T
Monitor 22"LED
Operating system Ubuntu
Parameters Overall size W1000xD1380xH1600mm (excluding alarm light)
Weight 1100KG
Power source AC220V/50~60Hz/2000W
Air Pressure 0.5Mpa
Environmental requirements Temperature: 5~40℃, relative humidity: 25%~80% (no frost)
Upstream and downstream equipment communication Standard SMEMA interface


Features:

  • Product Name: AOI Inspection Equipment
  • Product Type: Inspection Equipment
  • Inspection Speed: High Speed
  • Inspection Resolution: High Resolution
  • Inspection Accuracy: High Accuracy
  • User Interface: Intuitive User Interface

This automated optical inspection equipment, also known as AOI inspection equipment China, is designed to provide high speed, high resolution, and high accuracy inspection. It features an intuitive user interface for easy operation and navigation.

Automated optical inspection is a critical process in many industries, and this AOI inspection equipment is a reliable and efficient tool for ensuring product quality and consistency.



Technical Parameters:

Inspection Method Visual Inspection
Inspection Resolution High Resolution
Inspection Speed High Speed
Product Type Inspection Equipment
Lighting System Multi-angle LED Lighting
Operating System Windows-based
Data Management Real-time Data Management
Camera System High-Resolution Camera System
Application Automated Optical Inspection
Inspection Area Large Inspection Area


Applications:

Our AOI inspection equipment is designed to provide accurate and efficient inspection for large inspection areas. With a supply ability of 1000 units per month, we can cater to the demands of various industries. Plus, our pricing is negotiable and payment can be done online for convenience.

The intuitive user interface of our AOI inspection equipment allows for easy operation while the Windows-based operating system ensures compatibility with various devices. Our multi-angle LED lighting system provides optimal illumination for accurate inspection results.

Our AOI inspection equipment is ideal for a range of application occasions and scenarios, including but not limited to:

  • PCB manufacturing
  • Electronic component manufacturing
  • Automotive parts manufacturing
  • Medical device manufacturing
  • Pharmaceutical manufacturing
  • And many more

With a minimum order quantity of one unit and a delivery time of just one week, we aim to provide our customers with quick and efficient service. Trust in Mento AOI Inspection Equipment for your automated optical inspection needs in China and beyond.



Support and Services:

Our AOI Inspection Equipment product comes with comprehensive technical support and services to ensure the smooth operation and maintenance of the equipment. Our technical support team is available to answer any questions and provide guidance on the installation, operation, and troubleshooting of the equipment. We also offer training services to help users get the most out of the equipment's capabilities and maximize efficiency. Additionally, we provide maintenance and repair services to keep the equipment in optimal condition and minimize downtime. Our goal is to ensure our customers have a positive experience with our product and achieve their desired results with ease.



Packing and Shipping:

Product Packaging:

  • The AOI Inspection Equipment will be securely packaged in a sturdy cardboard box.
  • The product will be wrapped in bubble wrap to protect it from any damage during transit.
  • All necessary accessories and cables will be included in the package.
  • The package will be clearly labeled with the product name, model number, and shipping address.

Shipping:

  • The AOI Inspection Equipment will be shipped via a trusted and reliable carrier.
  • The shipping cost will be calculated based on the destination and weight of the package.
  • The estimated delivery time will be provided at the time of purchase.
  • A tracking number will be provided to the customer once the product has shipped.


FAQ:

Q: What is the brand name of the AOI Inspection Equipment?

A: The brand name of our AOI Inspection Equipment is Mento.

Q: Where is the AOI Inspection Equipment manufactured?

A: The equipment is manufactured in China, specifically in Dongguan.

Q: What certifications does the AOI Inspection Equipment have?

A: Our AOI Inspection Equipment is certified with ISO9001/ISO14001.

Q: What is the minimum order quantity for the AOI Inspection Equipment?

A: The minimum order quantity for our AOI Inspection Equipment is 1.

Q: What is the delivery time for the AOI Inspection Equipment?

A: Our delivery time for the equipment is 1 week.

Q: What are the payment terms for the AOI Inspection Equipment?

A: We accept online payment for our AOI Inspection Equipment.

Q: What is the supply ability for the AOI Inspection Equipment?

A: Our supply ability for the equipment is 1000/month.
