Product Details
Place of Origin: China dongguan
Brand Name: Mento
Certification: ISO9001/ISO14001
Model Number: M2025
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: W1000mmxD1380mmxH1600mm(without foot 100±20mm)
Delivery Time: 3week
Payment Terms: on line
Supply Ability: 1000/month
Inspection Method: |
Visual Inspection |
Camera System: |
High-Resolution Camera System |
Operating System: |
Windows-based |
Inspection Accuracy: |
High Accuracy |
Inspection Speed: |
High Speed |
User Interface: |
Intuitive User Interface |
Lighting System: |
Multi-angle LED Lighting |
Data Management: |
Real-time Data Management |
Inspection Method: |
Visual Inspection |
Camera System: |
High-Resolution Camera System |
Operating System: |
Windows-based |
Inspection Accuracy: |
High Accuracy |
Inspection Speed: |
High Speed |
User Interface: |
Intuitive User Interface |
Lighting System: |
Multi-angle LED Lighting |
Data Management: |
Real-time Data Management |
The AOI Inspection Equipment comes equipped with a large inspection area that allows for the inspection of large and complex products with ease. The high-resolution camera system provides clear and detailed images of the product, allowing for accurate defect detection. The camera system is designed to capture even the smallest defects, ensuring that all potential issues are identified.
The multi-angle LED lighting system is another key feature of the AOI Inspection Equipment. This lighting system enables the inspection of products from multiple angles, providing a detailed view of the product and making it easier to detect defects. The lighting system is adjustable, allowing for customization based on the product being inspected.

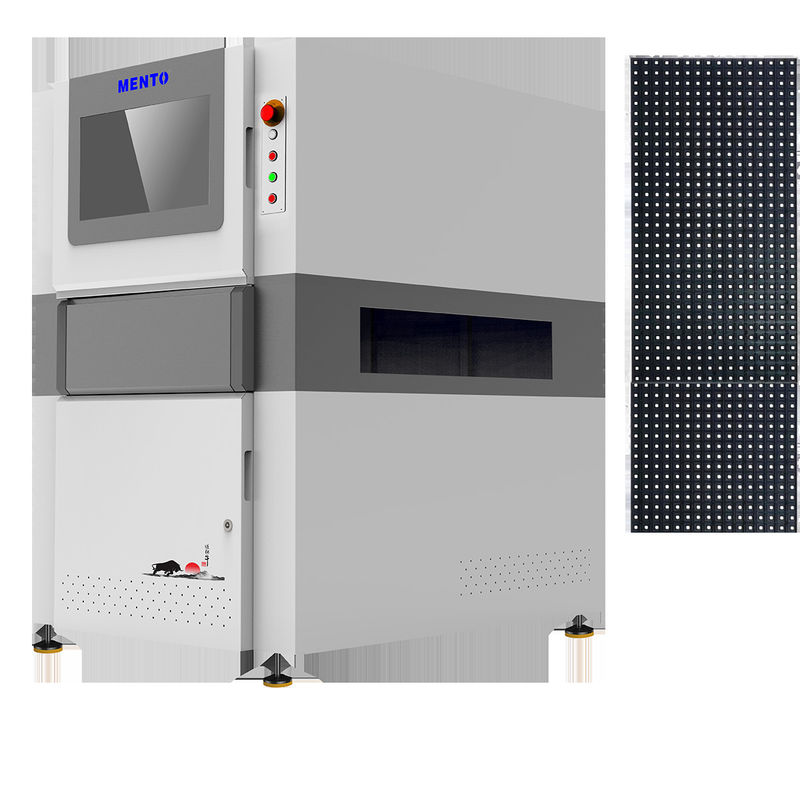

| Model | M20 Series Mini LED appearance inspection M2025 | ||||
| Inspection | Inspection items | Missed bonding, wrong bonding, die damaged, die offset, die tilted, die flipped, wrong polarity, particles, die lift-off, poor collinearity | |||
| Inspection method | Image processing, machine learning | ||||
| Optical System | Camera | 65MP | 25MP | 20MP | 12MP |
| Lens | High resolution bi-telecentric lens | ||||
| Resolution | 4μm(2.4μm~10μm optional)RGB(Customisable) | ||||
| Light Source | RGB customizable | ||||
| Efficiency | Stop then go:3FOV/s | Flying shoot:10FOV/s | |||
| Computer Configuration | PC | CPU:Inteli7, RAM:DDR4-32G, GPU:GTX1660-6GB SSD:250G, HDD:2T | |||
| Monitor | 22 "LED | ||||
| Operating System | Ubuntu | ||||
| Inspection Performance | PCB Thickness | 1~5mm | |||
| Maximum allowable component height | Upper 20mm, Lower 30mm(Customizable) | ||||
| Driver | Servo motor+Screw guide | ||||
| Movement speed | Max:600mm/s | ||||
| PCB fixture height | 900+20mm(from floor to fixture surface) | ||||
| Parameters | PCB size | Max:600mmx500mm(single track, track width adjustable) | |||
| Power | AC220W50Hz2000W | ||||
| Dimensions | W1350xD1000xH1650mm(without alarm light) | ||||
| Weight | ≈1100KG | ||||
| Air Pressure Requirement | ≥0.5Mpa | ||||
| Environmental requirements | Temperature:5~40℃, RH 25%~80%(no frost) | ||||
| Upstream and downstream equipment communication | Standard SMEMA interface / data communication with die bonder | ||||
| Product Type: | Inspection Equipment |
| Application: | Automated Optical Inspection |
| Inspection Area: | Large Inspection Area |
| Data Management: | Real-time Data Management |
| Lighting System: | Multi-angle LED Lighting |
| Inspection Speed: | High Speed |
| Inspection Method: | Visual Inspection |
| Camera System: | High-Resolution Camera System |
| Operating System: | Windows-based |
| Inspection Accuracy: | High Accuracy |
Our AOI inspection equipment is perfect for a variety of product application occasions and scenarios. Whether you are in the electronics industry, automotive industry, or any other manufacturing industry, our inspection equipment can help you identify defects and ensure your products meet the necessary standards.
Our intuitive user interface makes it easy for users to operate the equipment, even without extensive training. Additionally, our inspection speed is incredibly fast, allowing you to quickly identify any issues and make necessary adjustments.
Our multi-angle LED lighting system ensures that all areas of your product are properly illuminated, making it easier to identify defects. And with Ethernet and USB connectivity, you can easily transfer data and connect to other devices.
At Mento, we offer a minimum order quantity of 1 and our prices are negotiable. We also have a supply ability of 1000/month and can deliver your AOI inspection instrument within 1 week of your order. Payment can be made online for your convenience.
Invest in the best AOI inspection equipment China has to offer with Mento. Contact us today to learn more!
Our AOI Inspection Equipment product comes with comprehensive technical support and services to ensure your satisfaction with your purchase. Our team of experienced technicians is available to assist you with any questions or concerns you may have about the product. We also offer installation and training services to help you get started with using the equipment. In addition, we provide maintenance and repair services to keep your equipment running smoothly and minimize downtime.
The AOI Inspection Equipment will be packaged in a sturdy cardboard box with protective foam inserts. The product will be securely fastened inside the box to prevent any damage during shipping.
Shipping:
The product will be shipped via a trusted courier service such as FedEx or DHL. The shipping time will depend on the destination, but customers can expect to receive their order within 3-5 business days.
A: The brand name of the AOI Inspection Equipment is Mento.
Q: Where is the AOI Inspection Equipment manufactured?
A: The AOI Inspection Equipment is manufactured in Dongguan, China.
Q: Is the AOI Inspection Equipment certified?
A: Yes, the AOI Inspection Equipment is certified with ISO9001/ISO14001.
Q: What is the minimum order quantity for the AOI Inspection Equipment?
A: The minimum order quantity for the AOI Inspection Equipment is 1.
Q: What is the delivery time for the AOI Inspection Equipment?
A: The delivery time for the AOI Inspection Equipment is 3 week.
Q: What are the payment terms for the AOI Inspection Equipment?
A: The payment terms for the AOI Inspection Equipment are online.
Q: What is the supply ability for the AOI Inspection Equipment?
A: The supply ability for the AOI Inspection Equipment is 1000/month.
Q: Is the price of the AOI Inspection Equipment negotiable?
A: Yes, the price of the AOI Inspection Equipment is negotiable.
