Product Details
Place of Origin: China dongguan
Brand Name: Mento
Certification: ISO9001/ISO14001
Model Number: M2020-2012EL
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: W1000mmxD1380mmxH1600mm(without foot 100±20mm)
Delivery Time: 3week
Payment Terms: on line, L/C, T/T
Supply Ability: 1000/month
Dimension: |
1000mm X 800mm X 1200mm |
Camera Type: |
High-Resolution CCD |
Light Source: |
LED |
Power Supply: |
AC 220V, 50Hz |
Resolution: |
10μm |
Model: |
XYZ-1000 |
Operating System: |
Windows 10 |
Inspection Method: |
3D Inspection |
Dimension: |
1000mm X 800mm X 1200mm |
Camera Type: |
High-Resolution CCD |
Light Source: |
LED |
Power Supply: |
AC 220V, 50Hz |
Resolution: |
10μm |
Model: |
XYZ-1000 |
Operating System: |
Windows 10 |
Inspection Method: |
3D Inspection |
One of the key features of our AOI PCB machine is its lightning-fast inspection speed. With a top speed of 1000mm/s, this machine is capable of scanning and analyzing your printed circuit boards at a rapid pace, allowing you to keep up with even the most demanding production schedules. And with its Ethernet interface, you can easily connect the machine to your existing network and manage your inspection data with ease.
But speed and accuracy aren't the only benefits of our AOI PCB machine. With a compact dimension of 1000mm X 800mm X 1200mm, this machine is designed to maximize your workspace and minimize your footprint, making it an ideal choice for small and medium-sized businesses. And with its 3D inspection method, you can be sure that every aspect of your printed circuit boards is thoroughly analyzed and optimized.
So if you're looking for a reliable AOI PCB machine that won't break the bank, look no further than our high-quality product. With competitive AOI equipment manufacturers and an unbeatable price, we're confident that you'll love what our machine can do for your business. Contact us today to learn more about our product and how it can help you streamline your workflow and improve your bottom line.
| Model | Mini LED appearance & luminescence all-in-one M2020-2012EL | |||
| Detection capacity | Inspection items | Missed bonding, wrong bonding, die damaged, die offset, die tilted, die flipped, wrong polarity, particles, die lift-off, poor collinearity. | Bad die, over luminescence, under luminescence, chroma anomaly | |
| Detection method | Image processing, machine learning | |||
| Optical system | Camera | 20MP | 12MP | |
| telecentric lens | High resolution bi-telecentric lens | |||
| Resolution | 4um (2.4um~5um optional) | 15μm(10um~18um optional) | ||
| Light Source | RGB(Customizable) | |||
| Efficiency | Stop then go:3FOV/s | |||
| Computer Configuration | Mainframe | CPU:Inteli7, RAM:DDR4-32G, GPU:GTX1660-6GB, SSD:250G, HDD:2T | CPU:Inteli7, RAM:DDR4-32G, GPU:GTX1660-6GB, SSD:250G, HDD:2T | |
| Monitor | 22 "LED | |||
| Operating System | Ubuntu/Windows 10 Professional | |||
| Detection performance | PCB thickness | 1~5mm | ||
| Maximum allowable component height | 20mm upper, 30mm lower (Customizable) | |||
| Drive | Servo motor + Screw guide | |||
| Movement speed | Max :600mm/s | |||
| PCB fixture height | 900±20mm(Dual station, adjustable track width) | |||
| Parameters | PCB size | Max: 350mmx300mm | Max: 370mmx350mm | |
| Power supply | AC220V/50Hz/2000W | |||
| Dimensions | W1330xD1360xH1650mm (excluding warning light) | |||
| Weight | 1600KG | |||
| Air Pressure Requirement | ≥0.5Mpa | |||
| Environmental requirements | Temperature:5~40℃, RH 25%~80%(no frost) | |||
| Upstream and downstream equipment communication | Standard SMEMA interface / data communication with die bonder | |||
| Weight | 200kg |
| Operating System | Windows 10 |
| Light Source | LED |
| Interface | Ethernet |
| Model | XYZ-1000 |
| Dimension | 1000mm X 800mm X 1200mm |
| Inspection Accuracy | ±5μm |
| Power Supply | AC 220V, 50Hz |
| Pcb Size | Max. 500mm X 500mm |
| Resolution | 10μm |

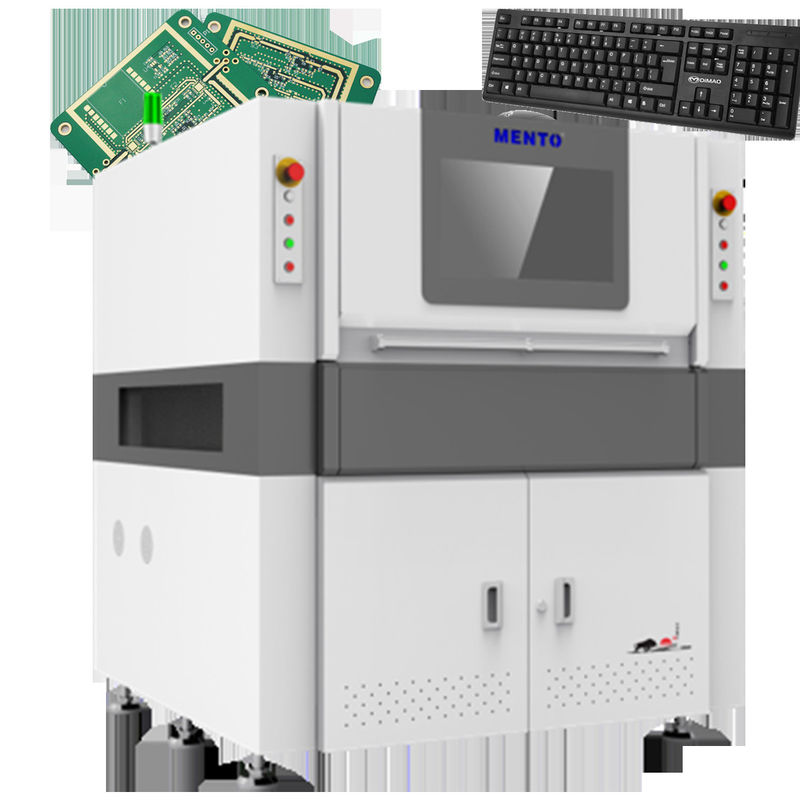

The Mento AOI PCB Machine is ideal for a wide range of applications and scenarios. It is perfect for use in electronics manufacturing plants, research labs, and quality control departments. This product is designed to provide high-precision testing and analysis of printed circuit boards, making it an excellent addition to any PCB testing methods.
The Mento AOI PCB Machine is equipped with a high-resolution CCD camera, which ensures that even the smallest details of the PCB are captured accurately. The machine can inspect PCBs with thickness ranging from 0.2mm - 6mm, making it highly versatile and suitable for a wide range of applications. The machine also features LED lights, which provide excellent illumination and ensure that any defects or flaws in the PCB are easily identified.
The Mento AOI PCB Machine is designed to be highly user-friendly, and it is equipped with the Windows 10 operating system and an Ethernet interface, making it easy to integrate into any existing system. The machine can be easily operated by anyone with basic computer skills, and it comes with comprehensive user manuals and training guides.
The Mento AOI PCB Machine is a high-quality product with excellent performance and reliability. It is capable of providing accurate and reliable inspection results, making it an ideal choice for businesses that require high-precision PCB testing methods. The machine has a supply ability of 1000/month and can be purchased online with flexible payment terms. Delivery time is 1 week after the order has been placed, ensuring that businesses can get the product they need quickly and efficiently.
In conclusion, the Mento AOI PCB Machine is an excellent product that is ideal for a wide range of applications and scenarios. Whether you are running a manufacturing plant or a quality control department, this product is designed to deliver accurate and reliable results. With its high-resolution CCD camera, LED lights, and user-friendly interface, this machine is a must-have for anyone looking to improve their PCB testing methods.
Our AOI PCB Machine product comes with comprehensive technical support and services to ensure the smooth operation and maintenance of the machine. Our technical support team is available to assist with any troubleshooting, installation, or upgrade issues that may arise. Additionally, we offer training services to help your team learn how to best utilize the machine and optimize its performance. Our services also include regular maintenance and calibration to ensure the machine remains in top condition. For further information on our technical support and services, please contact us.
Product Packaging:
The AOI PCB Machine will be securely packed in a sturdy cardboard box with foam padding to prevent any damage during transportation. The product will be sealed with tamper-evident tape to ensure its safety during shipping.
Shipping:
The product will be shipped via a trusted carrier service to ensure timely and safe delivery. Customers will be provided with a tracking number to monitor the status of their shipment. Shipping fees may vary depending on the destination and shipping method chosen by the customer.
Place of Origin: China Dongguan
Certification: ISO9001/ISO14001
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 3 week
Payment Terms: Online
Supply Ability: 1000/month
