Product Details
Place of Origin: China dongguan
Brand Name: Mento
Certification: ISO9001/ISO14001
Model Number: K3412
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: W1000mmxD1380mmxH1600mm(without foot 100±20mm)
Delivery Time: 3week
Payment Terms: on line, L/C, T/T
Supply Ability: 1000/month
Operating System: |
Windows 10 |
Inspection Speed: |
Up To 80 Cm²/s |
Inspection Area: |
Up To 510 X 510 Mm |
Power Supply: |
AC 220V, 50/60Hz |
Dimension: |
L 1000 X W 1380 X H 1600 Mm |
Alignment Method: |
Automatic Alignment |
Software: |
Intuitive User Interface |
Resolution: |
10 μm |
Operating System: |
Windows 10 |
Inspection Speed: |
Up To 80 Cm²/s |
Inspection Area: |
Up To 510 X 510 Mm |
Power Supply: |
AC 220V, 50/60Hz |
Dimension: |
L 1000 X W 1380 X H 1600 Mm |
Alignment Method: |
Automatic Alignment |
Software: |
Intuitive User Interface |
Resolution: |
10 μm |
Online AOI features
1. High cost performance
2. Standard 5 million global exposure industrial color camera
3. The first company in China to use large-diameter telecentric lenses (can be targeted at products)
4. Independently developed optical system (light source consistency)
5. High stability integrated casting platform
Application scope: solder joint and mounted device inspection

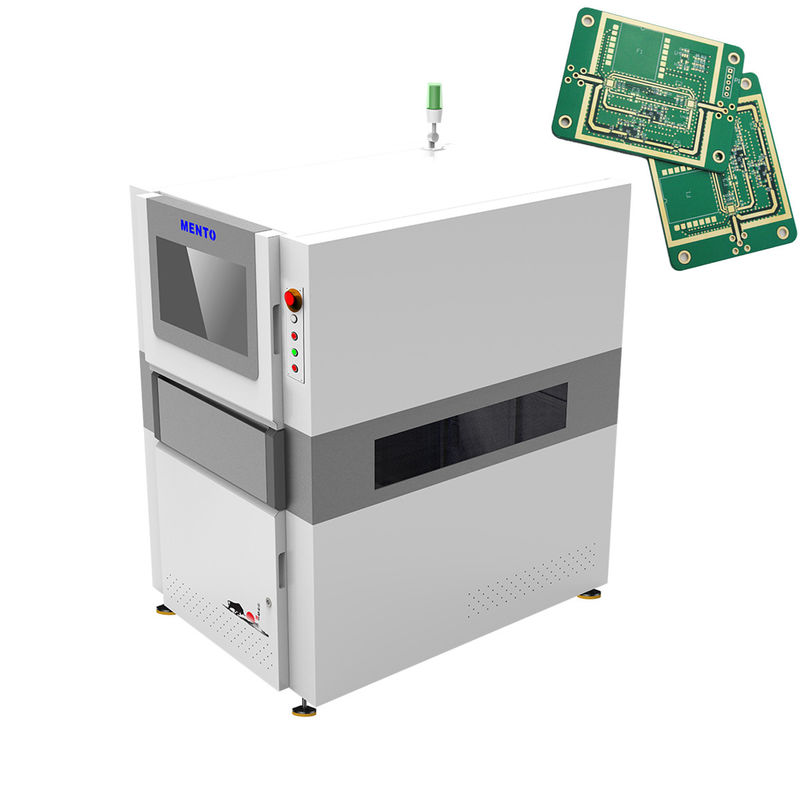

With a PCB thickness range of 0.5 to 5 mm, our 3D AOI Machine is suitable for inspecting a wide range of PCBs, making it an ideal choice for PCB inspection system applications. The machine is equipped with RGB LED lighting that provides bright and uniform illumination, allowing for detailed inspection of PCBs, even in low light conditions. The inspection area of the machine is up to 510 x 510 mm, providing ample space for inspecting large PCBs.
Our 3D AOI Machine operates on AC 220V, 50/60Hz, making it suitable for use in different countries and locations. The machine can inspect PCBs at a speed of up to 80 cm²/s, enabling quick and efficient inspection of large volumes of PCBs. This is particularly useful in high-volume production environments where speed and accuracy are crucial.
Our 3D AOI Machine is designed with advanced features and technology to ensure high accuracy and reliability in PCB inspection. The machine is equipped with a high-resolution camera that captures detailed images of the PCB, allowing for accurate detection of defects and anomalies. The machine also features a sophisticated algorithm that analyzes the images and identifies any defects or errors in the PCB.
| Device model | K3412 | |
| Detection capacity | Detection items | |
| Scanning method | Stop&Go | |
| Optical system | Camera | 12MP high speed color industrial camera |
| Light Source | 4 DLP light source (raster phase shift technology) and red, green and blue (RGB) light source | |
| Resolution | 10μm & 15um (optional) | |
| Volume repeatability | <1% (standard verification block, 3Sigma) | |
| Maximum Plate Bending Compensation Value | ±3mm | |
| Detection Capability GRR | <10%at6o(+50%tolerance, 5μm resolution) | |
| Maximum detection height | 20mm/40mm | |
| Solution to shadow problem | Phase shift technology & bidirectional 3D Structured Light system | |
| Plate bending real-time compensation method | Plate Bend Compensation (Z-Tracking+Pad Referencing) | |
| Test screen | Color (3D and 2D images displayed together) | |
| Driving equipment | Servomotor+Screw Guide | |
| Moving speed | 800mm/s | |
| Minimum measurable product size | 50mmx50mm | |
| Maximum product measurable size | 400mmx500mm | |
| PCB thickness | 0.5~6mm | |
| Track width adjustment | Automatic width adjustment, manual width adjustment | |
| Circuit board conveying/fixing | Belt conveyor/pneumatic clamp fixing | |
| Conveying direction | From left to right, right to left | |
| Orbital height | 900±20mm | |
| Computer Configuration | Mainframe | CPU: Intel i5, RAM: DDR4-16G, GPU: GTX1660-6GB, SSD:250G, HDD: 2T |
| Monitor | 22"LED | |
| Operating system | Ubuntu | |
| Parameters | Overall size | W1000xD1380xH1600mm (excluding alarm light) |
| Weight | 1100KG | |
| Power source | AC220V/50~60Hz/2000W | |
| Air Pressure | 0.5Mpa | |
| Environmental requirements | Temperature: 5~40℃, relative humidity: 25%~80% (no frost) | |
| Upstream and downstream equipment communication | Standard SMEMA interface | |
| Technical Parameters | Product Details |
|---|---|
| Alignment Method | Automatic Alignment |
| Operating System | Windows 10 |
| Power Supply | AC 220V, 50/60Hz |
| Weight | 800 Kg |
| Lighting | RGB LED |
| Pcb Thickness | 0.5 - 5 Mm |
| Resolution | 10 μm |
| Inspection Types | Solder Joint, Component, Defect |
| Camera Type | 3D Digital Camera |
| Software | Intuitive User Interface |
The 3D AOI Machine by Mento is designed to offer superior inspection services for PCBs. It uses 3D digital camera technology to inspect PCBs for defects and faults. With a dimension of L 1300 X W 1300 X H 1500 mm, this machine is compact and can be easily installed in a workspace.
The 3D AOI Machine by Mento has an intuitive user interface software that makes it easy to operate. The software is compatible with Windows 10 operating system. This machine is equipped with a 3D digital camera that captures high-resolution images of the PCBs, allowing for accurate inspection and detection of defects.
The Mento-01 3D AOI Machine is suitable for a range of application occasions and scenarios. It is suitable for use in PCB manufacturing plants, electronics factories, and other industries that require precise inspection of PCBs. This machine can be used for the inspection of single-sided, double-sided, and multi-layer PCBs, making it versatile and practical.
The 3D AOI Machine by Mento is a reliable and efficient inspection tool that can help to improve the quality of PCBs. Its 3D inspection method ensures that even the smallest faults and defects are detected, ensuring that only high-quality PCBs are produced. This machine is also easy to maintain, making it a cost-effective solution for businesses.
The 3D AOI Machine product technical support and services include:
- On-site installation and training
- Remote technical support via phone or email
- Regular software updates to improve machine performance
- Maintenance and repair services
- Spare parts replacement
- Troubleshooting assistance
Product Packaging for 3D AOI Machine:
The 3D AOI Machine will be packaged securely in a sturdy cardboard box to prevent any damage during transportation. The product will be wrapped in bubble wrap and placed in the center of the box to avoid any movement. The box will be labeled with the product name, model number, and handling instructions.
Shipping:
The 3D AOI Machine will be shipped using a reliable and trusted courier service. The shipping cost will be calculated based on the delivery location and weight of the package. The estimated delivery time will be provided to the customer upon placing the order. The customer will receive a tracking number to monitor the delivery status of the package.
Q: What is the brand name of the 3D AOI Machine?
A: The brand name of the 3D AOI Machine is Mento.
Q: What is the model number of the 3D AOI Machine?
A: The model number of the 3D AOI Machine is Mento-01.
Q: Where is the 3D AOI Machine manufactured?
A: The 3D AOI Machine is manufactured in Dongguan, China.
Q: What certifications does the 3D AOI Machine have?
A: The 3D AOI Machine is certified with ISO9001 and ISO14001.
Q: What is the minimum order quantity for the 3D AOI Machine?
A: The minimum order quantity for the 3D AOI Machine is 1.
Q: What is the price of the 3D AOI Machine?
A: The price of the 3D AOI Machine is negotiable.
Q: What is the delivery time of the 3D AOI Machine?
A: The delivery time of the 3D AOI Machine is 3 week.
Q: What are the payment terms for the 3D AOI Machine?
A: The payment terms for the 3D AOI Machine are online.
Q: What is the supply ability of the 3D AOI Machine?
A: The supply ability of the 3D AOI Machine is 1000/month.
