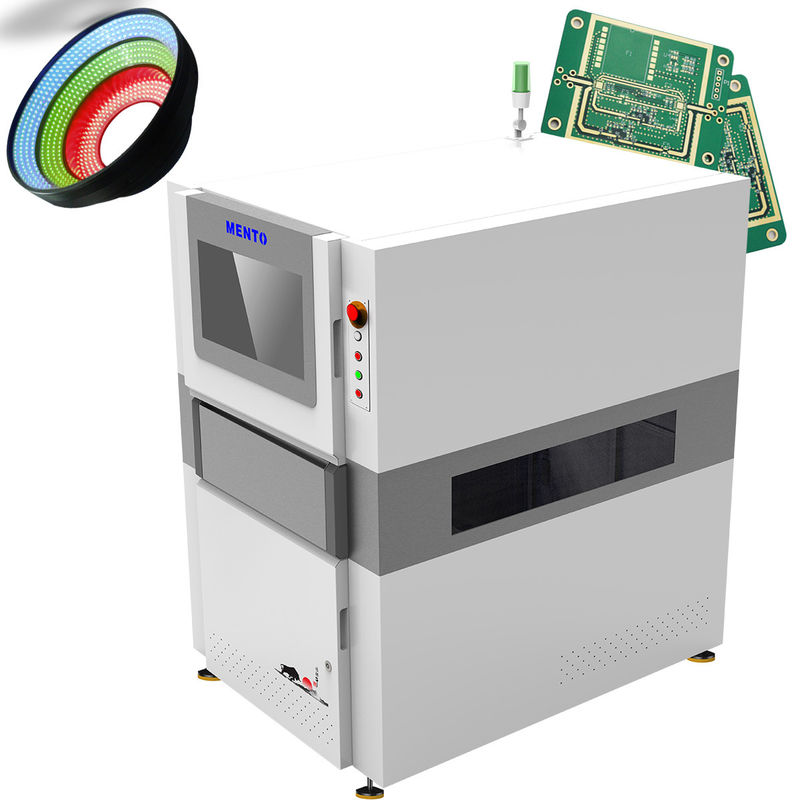

Defect Detection SMT AOI Machine Semiconductor Inspection Equipment

Product Details

Place of Origin: China dongguan

Brand Name: Mento

Certification: ISO9001/ISO14001

Model Number: K3205

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: W1000mmxD1380mmxH1600mm(without foot 100±20mm)

Delivery Time: 3week

Payment Terms: on line

Supply Ability: 1000/month

Get Best Price
Product Details
Highlight:

Defect Detection SMT AOI Machine

,

SMT AOI Machine Equipment

,

Defect Detection semiconductor inspection equipment

Speed:
0.23sec/FOV
Thickness:
0.5mm-6mm
Machine Description:
3D Solder Paste Inspection
Camera:
12MP, Color
Min Parts:
50*50 Mm
Width Adjustment:
Manual
Condition:
Used, New
Inspection Pcb Size:
50mm X 50mm - 510mm X 460mm
Speed:
0.23sec/FOV
Thickness:
0.5mm-6mm
Machine Description:
3D Solder Paste Inspection
Camera:
12MP, Color
Min Parts:
50*50 Mm
Width Adjustment:
Manual
Condition:
Used, New
Inspection Pcb Size:
50mm X 50mm - 510mm X 460mm
Product Description

Product Description:

One of the key features of this SMT machine is its 6.5 Mpix high-speed color camera, which is capable of capturing images at a resolution of up to 2592 x 1944 pixels. This camera is able to capture high-quality images of even the smallest details on the PCB, which is critical for ensuring the quality of the PCB. The camera is also able to capture images at a high speed, with a movement speed of up to 800mm/sec, which makes the inspection process quick and efficient.

The SMT AOI machine is also equipped with automated optical inspection machine learning technology. This technology allows the machine to learn and adapt to different environments, making it highly accurate and reliable in detecting defects on PCBs. The machine is capable of detecting a wide range of defects, including missing components, misplaced components, incorrect polarity, and soldering defects.



Device model K3205
Detection capacity Detection items Miss print, over solder, insufficient solder, solder bridging, solder paste tailing, shape anomany, offset
Scanning method Stop&Go
Optical system Camera 5MP high speed color industrial camera
Light Source Dual DLP light source (raster phase shift technology) and red, green and blue (RGB) light source
Resolution 10μm & 15um (optional)
Detection performance Height accuracy (calibration module) 1μm (using standard calibration block)
Volume repeatability <1% (standard verification block, 3Sigma)
Maximum Plate Bending Compensation Value ±3mm
Detection Capability GRR <10%at6o(+50%tolerance, 5μm resolution)
Maximum detection height 500μm
Solution to shadow problem Phase shift technology & bidirectional 3D Structured Light system
Plate bending real-time compensation method Plate Bend Compensation (Z-Tracking+Pad Referencing)
Test screen Color (3D and 2D images displayed together)
Driving equipment Servomotor+Screw Guide
Moving speed 800mm/s
Minimum measurable product size 50mmx50mm
Maximum product measurable size 400mmx500mm
PCB thickness 0.5~6mm
Track width adjustment Automatic width adjustment, manual width adjustment
Circuit board conveying/fixing Belt conveyor/pneumatic clamp fixing
Conveying direction From left to right, right to left
Orbital height 900±20mm
Computer Configuration Mainframe CPU: Intel i5, RAM: DDR4-16G, GPU: GTX1660-6GB, SSD:250G, HDD: 2T
Monitor 22"LED
Operating system Ubuntu
Parameters Overall size W1350xD1000xH1600mm (excluding alarm light)
Weight 1100KG
Power source AC220V/50~60Hz/2000W
Air Pressure 0.5Mpa
Software Supported Input Formats Support Gerber format (274X), ODB++
Statistical management tools

Histogram,X-bar&R -Chart ,X-bar&S -C hart ,C p&C pk,

%Gage R & R,SPI Daily/Weekly/Monthly Reports, real-time SPC& Multiple Display

Environmental requirements Temperature: 5~40℃, relative humidity: 25%~80% (no frost)
Upstream and downstream equipment communication Standard SMEMA interface



Features:

  • Product Name: SMT AOI Machine
  • Stock: Large
  • Camera: 12MP, Color
  • Inspection PCB Size: 50mm X 50mm - 510mm X 460mm
  • Speed: 0.23sec/FOV
  • Part Name: SMT AOI Machine

This SMT AOI Machine is perfect for automating PCB inspection and offers automatic optical inspection of PCBs. With a large stock, 12MP color camera, and the ability to inspect PCBs ranging from 50mm x 50mm to 510mm x 460mm, this machine offers fast and efficient inspection with a speed of 0.23sec/FOV.



Technical Parameters:



The SMT AOI Machine product comes with the following technical support and services:

  • Installation and setup assistance
  • Training on how to use the machine
  • 24/7 remote technical support
  • On-site technical support if needed
  • Regular maintenance and software updates

Our team of experts are dedicated to ensuring that your SMT AOI Machine is running efficiently and effectively, so you can produce high-quality products with ease.



Packing and Shipping:

Product Packaging:

  • The SMT AOI machine will be securely packed in a wooden crate.
  • All necessary accessories and parts will be included in the package.
  • The package will be labeled with the product name, quantity, and handling instructions.

Shipping:

  • The package will be shipped via a reliable and reputable carrier.
  • The shipping cost will be calculated based on the destination and weight of the package.
  • A tracking number will be provided to the customer upon shipment.
  • The estimated delivery time will depend on the customer's location and shipping method.


FAQ:

What is the brand name of the AOI machine?

The brand name of the AOI machine is Mento.

2.

Where is the AOI machine manufactured?

The AOI machine is manufactured in China, specifically in Dongguan.

3.

What certifications does the AOI machine have?

The AOI machine has ISO9001 and ISO14001 certifications.

4.

What is the minimum order quantity for the AOI machine?

The minimum order quantity for the AOI machine is 1.

5.

What are the payment terms for the AOI machine?

The payment terms for the AOI machine are online payment.

6.

What is the supply ability of the AOI machine?

The supply ability of the AOI machine is 1000 units per month.

7.

What is the delivery time for the AOI machine?

The delivery time for the AOI machine is 3 week after payment is received.

8.

Is the price of the AOI machine negotiable?

Yes, the price of the AOI machine is negotiable.
