Product Details
Place of Origin: China dongguan
Brand Name: Mento
Certification: ISO9001/ISO14001
Model Number: K3212
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: W1000mmxD1380mmxH1600mm(without foot 100±20mm)
Delivery Time: 3week
Payment Terms: on line, L/C, T/T
Supply Ability: 1000/month
Min Parts: |
50*50 Mm |
The Camera: |
Nine Million Pixels |
Movement Speed: |
800mm/sec |
Width Adjustment: |
Manual |
Machine Description: |
3D Solder Paste Inspection |
Stock: |
Large |
Speed: |
0.23sec/FOV |
Condition: |
Used, New |
Min Parts: |
50*50 Mm |
The Camera: |
Nine Million Pixels |
Movement Speed: |
800mm/sec |
Width Adjustment: |
Manual |
Machine Description: |
3D Solder Paste Inspection |
Stock: |
Large |
Speed: |
0.23sec/FOV |
Condition: |
Used, New |

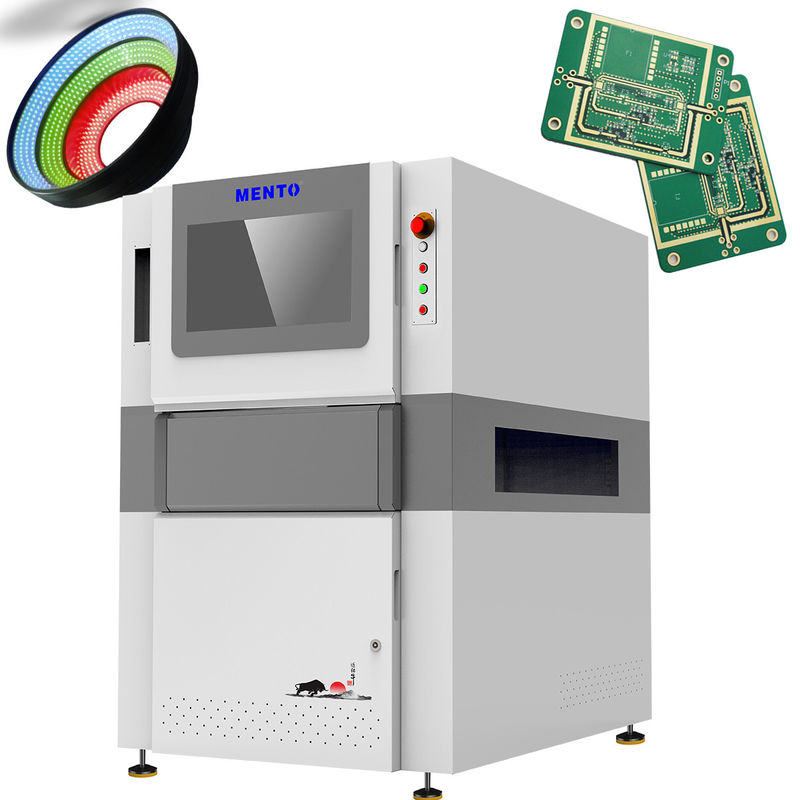

The SMT AOI Machine is specifically designed for inspecting PCBs with a minimum size of 50*50 mm. It is ideal for use in PCB manufacturing plants, where it can be used to inspect boards for defects and ensure that they are of the highest quality. The machine is capable of detecting a wide range of defects, including missing components, incorrect component placement, and soldering defects.
One of the key features of the SMT AOI Machine is its high-speed color camera, which can capture images at a rate of up to 60 frames per second. This makes it ideal for use in high-volume manufacturing environments, where speed and accuracy are critical. The machine is also equipped with advanced image processing algorithms that can automatically detect and classify defects, reducing the need for manual inspection and improving overall efficiency.
| Device model | K3212 | |
| Detection capacity | Detection items | Miss print, over solder, insufficient solder, solder bridging, solder paste tailing, shape anomany, offset |
| Scanning method | Stop&Go | |
| Optical system | Camera | 12MP high speed color industrial camera |
| Light Source | Dual DLP light source (raster phase shift technology) and red, green and blue (RGB) light source | |
| Resolution | 10μm & 15um (optional) | |
| Detection performance | Height accuracy (calibration module) | 1μm (using standard calibration block) |
| Volume repeatability | <1% (standard verification block, 3Sigma) | |
| Maximum Plate Bending Compensation Value | ±3mm | |
| Detection Capability GRR | <10%at6o(+50%tolerance, 5μm resolution) | |
| Maximum detection height | 500μm | |
| Solution to shadow problem | Phase shift technology & bidirectional 3D Structured Light system | |
| Plate bending real-time compensation method | Plate Bend Compensation (Z-Tracking+Pad Referencing) | |
| Test screen | Color (3D and 2D images displayed together) | |
| Driving equipment | Servomotor+Screw Guide | |
| Moving speed | 800mm/s | |
| Minimum measurable product size | 50mmx50mm | |
| Maximum product measurable size | 400mmx500mm | |
| PCB thickness | 0.5~6mm | |
| Track width adjustment | Automatic width adjustment, manual width adjustment | |
| Circuit board conveying/fixing | Belt conveyor/pneumatic clamp fixing | |
| Conveying direction | From left to right, right to left | |
| Orbital height | 900±20mm | |
| Computer Configuration | Mainframe | CPU: Intel i5, RAM: DDR4-16G, GPU: GTX1660-6GB, SSD:250G, HDD: 2T |
| Monitor | 22"LED | |
| Operating system | Ubuntu | |
| Parameters | Overall size | W1350xD1000xH1600mm (excluding alarm light) |
| Weight | 1100KG | |
| Power source | AC220V/50~60Hz/2000W | |
| Air Pressure | 0.5Mpa | |
| Software Supported Input Formats | Support Gerber format (274X), ODB++ | |
| Statistical management tools |
Histogram,X-bar&R -Chart ,X-bar&S -C hart ,C p&C pk, %Gage R & R,SPI Daily/Weekly/Monthly Reports, real-time SPC& Multiple Display |
|
| Environmental requirements | Temperature: 5~40℃, relative humidity: 25%~80% (no frost) | |
| Upstream and downstream equipment communication | Standard SMEMA interface | |
This SMT AOI machine is ideal for PCB inspection automation, with features such as high-speed color camera and inspection of a wide range of PCB sizes and thicknesses. Contact us for more information on the AOI machine price.
The SMT AOI machine is designed to inspect the printed circuit boards (PCBs) and ensure their quality and accuracy. With the help of automated optical inspection machine learning, the product can detect and classify the defects on the PCBs with high precision and speed. The 6.5 Mpix High-Speed Color Camera ensures that the inspection process is carried out with high accuracy and detail.
The product is suitable for various occasions and scenarios, including electronic manufacturing, PCB assembly, and quality control. It can inspect PCBs with a minimum size of 50*50 mm and a thickness range of 0.5 mm to 6 mm. The inspection PCB size can range from 50mm X 50mm to 510mm X 460mm, making it a versatile solution for different PCB sizes.
Mento's SMT AOI machine is available at a negotiable price, and the minimum order quantity is 1. The product has a supply ability of 1000/month, and it can be delivered within one week. The payment terms are on line, making the purchasing process more convenient for the buyers.
The SMT AOI Machine product comes with comprehensive technical support and services, ensuring that your machine is always running at its best. Our team of experts is available to provide assistance with installation, training, and maintenance, as well as troubleshooting any issues that may arise. We also offer software updates and upgrades to ensure that your machine is always up-to-date with the latest technology. Additionally, we offer extended warranties and service contracts to provide you with peace of mind and ensure that your investment is protected. With our commitment to customer satisfaction and our dedication to quality service, you can trust in the reliability and performance of your SMT AOI Machine.
Product Packaging:
Shipping:
Q: What is the brand name of this AOI machine?
A: The brand name of this AOI machine is Mento.
Q: Where is this AOI machine manufactured?
A: This AOI machine is manufactured in Dongguan, China.
Q: What certifications does this AOI machine have?
A: This AOI machine is certified with ISO9001 and ISO14001.
Q: What is the minimum order quantity for this AOI machine?
A: The minimum order quantity for this AOI machine is 1.
Q: What is the delivery time for this AOI machine?
A: The delivery time for this AOI machine is 3 week.
Q: What are the payment terms for this AOI machine?
A: The payment terms for this AOI machine are online.
Q: What is the supply ability for this AOI machine?
A: The supply ability for this AOI machine is 1000/month.
Q: Is the price negotiable for this AOI machine?
A: Yes, the price for this AOI machine is negotiable.
