Product Details
Place of Origin: China dongguan
Brand Name: Mento
Certification: ISO9001/ISO14001
Model Number: K3205
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: W1000mmxD1380mmxH1600mm(without foot 100±20mm)
Delivery Time: 3 week
Payment Terms: on line, L/C, T/T
Supply Ability: 1000/month
Model: |
XYZ-1000 |
Light Source: |
LED |
Inspection Method: |
3D Inspection |
Pcb Size: |
Max. 500mm X 500mm |
Pcb Thickness: |
0.2mm - 6mm |
Inspection Accuracy: |
±5μm |
Operating System: |
Windows 10 |
Model: |
XYZ-1000 |
Light Source: |
LED |
Inspection Method: |
3D Inspection |
Pcb Size: |
Max. 500mm X 500mm |
Pcb Thickness: |
0.2mm - 6mm |
Inspection Accuracy: |
±5μm |
Operating System: |
Windows 10 |

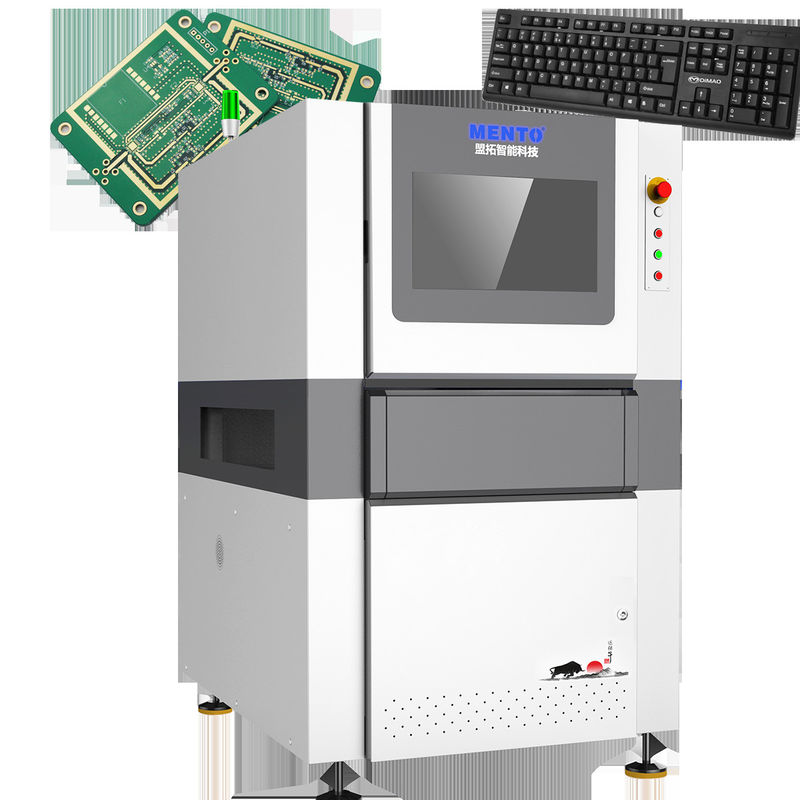

The AOI PCB Machine runs on the Windows 10 operating system, providing a user-friendly and familiar interface that is easy to navigate and operate. It also features an Ethernet interface for easy connectivity and communication, enabling seamless integration into any manufacturing environment or workflow.
The AOI PCB Machine is powered by an AC 220V, 50Hz power supply, ensuring stable and consistent performance. Its compact and space-saving design measures 1000mm X 800mm X 1200mm, making it a perfect fit for any production facility or laboratory.
With its high-resolution capabilities, the AOI PCB Machine can detect even the smallest defects and errors in the PCB, with a resolution of 10μm. This ensures that products are of the highest quality, and any issues can be quickly identified and resolved.
| 3D Solder Paste Inspection | ||
| Device model | K3205 | |
| Detection capacity | Detection items | Miss print, over solder, insufficient solder, solder bridging, solder paste tailing, shape anomany, offset |
| Scanning method | Stop&Go | |
| Optical system | Camera | 5MP high speed color industrial camera |
| Light Source | Dual DLP light source (raster phase shift technology) and red, green and blue (RGB) light source | |
| Resolution | 10μm & 15um (optional) | |
| Detection performance | Height accuracy (calibration module) | 1μm (using standard calibration block) |
| Volume repeatability | <1% (standard verification block, 3Sigma) | |
| Maximum Plate Bending Compensation Value | ±3mm | |
| Detection Capability GRR | <10%at6o(+50%tolerance, 5μm resolution) | |
| Maximum detection height | 500μm | |
| Solution to shadow problem | Phase shift technology & bidirectional 3D Structured Light system | |
| Plate bending real-time compensation method | Plate Bend Compensation (Z-Tracking+Pad Referencing) | |
| Test screen | Color (3D and 2D images displayed together) | |
| Driving equipment | Servomotor+Screw Guide | |
| Moving speed | 800mm/s | |
| Minimum measurable product size | 50mmx50mm | |
| Maximum product measurable size | 400mmx500mm | |
| PCB thickness | 0.5~6mm | |
| Track width adjustment | Automatic width adjustment, manual width adjustment | |
| Circuit board conveying/fixing | Belt conveyor/pneumatic clamp fixing | |
| Conveying direction | From left to right, right to left | |
| Orbital height | 900±20mm | |
| Computer Configuration | Mainframe | CPU: Intel i5, RAM: DDR4-16G, GPU: GTX1660-6GB, SSD:250G, HDD: 2T |
| Monitor | 22"LED | |
| Operating system | Ubuntu | |
| Parameters | Overall size | W1350xD1000xH1600mm (excluding alarm light) |
| Weight | 1100KG | |
| Power source | AC220V/50~60Hz/2000W | |
| Air Pressure | 0.5Mpa | |
| Software Supported Input Formats | Support Gerber format (274X), ODB++ | |
| Statistical management tools |
Histogram,X-bar&R -Chart ,X-bar&S -C hart ,C p&C pk, %Gage R & R,SPI Daily/Weekly/Monthly Reports, real-time SPC& Multiple Display |
|
| Environmental requirements | Temperature: 5~40℃, relative humidity: 25%~80% (no frost) | |
| Upstream and downstream equipment communication | Standard SMEMA interface | |
| Model | XYZ-1000 |
| Inspection Speed | 1000mm/s |
| Pcb Thickness | 0.2mm - 6mm |
| Inspection Method | 3D Inspection |
| Pcb Size | Max. 500mm X 500mm |
| Operating System | Windows 10 |
| Interface | Ethernet |
| Inspection Accuracy | ±5μm |
| Light Source | LED |
The AOI machine is an essential tool for the PCB manufacturing industry. It is an automated optical inspection system that checks printed circuit boards for defects and ensures that they meet industry standards. The machine has a 3D inspection method, which allows for accurate and precise detection of any abnormalities in the PCB. This inspection accuracy is ±5μm, which ensures that the PCBs are of the highest quality.
The Mento AOI PCB Machine is suitable for various application occasions and scenarios. It is ideal for use in PCB manufacturing companies, electronic product manufacturers, and research and development institutions. The machine can handle PCBs with a thickness ranging from 0.2mm to 6mm, making it versatile and suitable for different types of PCBs.
The model XYZ-1000 of the Mento AOI PCB Machine has an Ethernet interface, which allows for easy connectivity and integration with other systems. This feature makes it easy to incorporate the AOI machine into existing production lines and workflows.
In conclusion, the Mento AOI PCB Machine is a reliable and efficient PCB inspection system that is suitable for various application occasions and scenarios. Its high inspection accuracy, versatile PCB thickness handling, and Ethernet interface make it a valuable asset to PCB manufacturing companies, electronic product manufacturers, and research and development institutions.
Our AOI PCB Machine product comes with comprehensive technical support and services, including:
We are committed to providing our customers with the highest level of support and ensuring their AOI PCB machine operates at peak performance.
Product Packaging:
Shipping:
Q: What is the brand name of the AOI PCB Machine?
A: The brand name of the AOI PCB Machine is Mento.
Q: Where is the AOI PCB Machine manufactured?
A: The AOI PCB Machine is manufactured in China, Dongguan.
Q: What certifications does the AOI PCB Machine have?
A: The AOI PCB Machine is certified with ISO9001/ISO14001.
Q: What is the minimum order quantity for the AOI PCB Machine?
A: The minimum order quantity for the AOI PCB Machine is 1.
Q: What is the delivery time for the AOI PCB Machine?
A: The delivery time for the AOI PCB Machine is 3 week.
Q: What are the payment terms for the AOI PCB Machine?
A: The payment terms for the AOI PCB Machine are on line.
Q: What is the supply ability of the AOI PCB Machine?
A: The supply ability of the AOI PCB Machine is 1000/month.
Q: Is the price of the AOI PCB Machine negotiable?
A: Yes, the price of the AOI PCB Machine is negotiable.
