Product Details
Place of Origin: China dongguan
Brand Name: Mento
Certification: ISO9001/ISO14001
Model Number: S2020
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: W1000mmxD1380mmxH1600mm(without foot 100±20mm)
Delivery Time: 3 week
Payment Terms: on line
Supply Ability: 1000/month
Camera Type: |
High-Resolution CCD |
Inspection Method: |
3D Inspection |
Operating System: |
Windows 10 |
Interface: |
Ethernet |
Inspection Accuracy: |
±5μm |
Model: |
XYZ-1000 |
Pcb Size: |
Max. 500mm X 500mm |
Power Supply: |
AC 220V, 50Hz |
Camera Type: |
High-Resolution CCD |
Inspection Method: |
3D Inspection |
Operating System: |
Windows 10 |
Interface: |
Ethernet |
Inspection Accuracy: |
±5μm |
Model: |
XYZ-1000 |
Pcb Size: |
Max. 500mm X 500mm |
Power Supply: |
AC 220V, 50Hz |

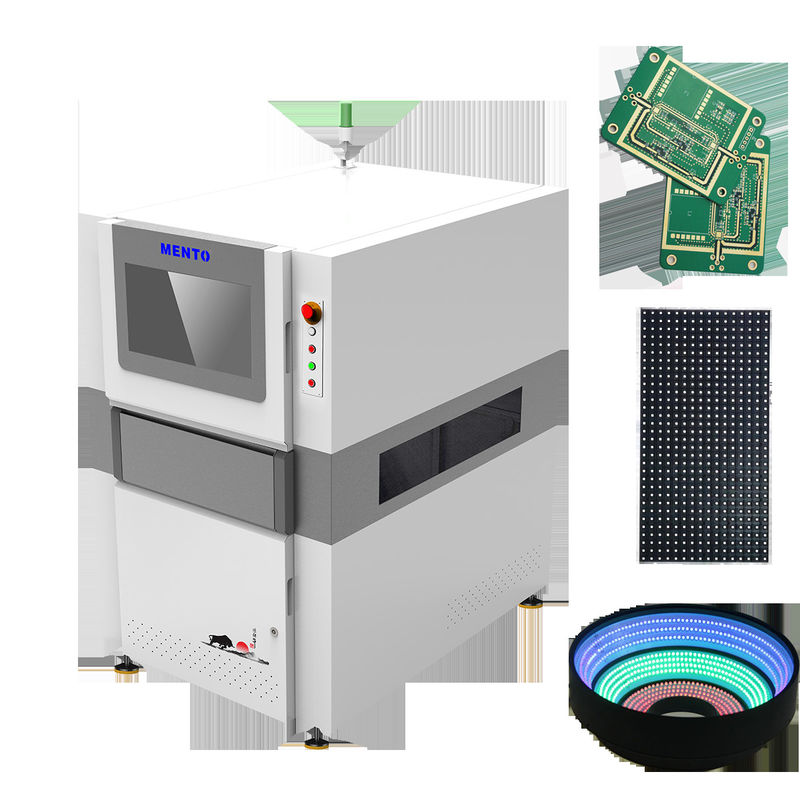

With an Ethernet interface, this AOI PCB machine is designed to offer seamless connectivity, allowing you to integrate it into your existing network with ease. The machine also boasts a large PCB size capacity, capable of handling PCBs up to 500mm x 500mm in size.
Powered by an AC 220V, 50Hz power supply, this AOI PCB machine is equipped with a high-resolution CCD camera that can capture even the most minute details with stunning clarity. Whether you're working with complex PCB designs or intricate circuits, this machine has the power and precision you need to get the job done right the first time.
| Device model | S2020 | ||
| Detection capacity | Detection items | Wire bonding inspection | |
| Detection type | Ball size, solder offset, solder bridging, miss planting ball, particle, solder overlap, solder break, , welding wrong wire, wire break, wire collapse, wire bridging, wire residue, welding wire interleaving | ||
| Optical system | Camera | 20MP | |
| Telecentric lens | telecentric optical lens | ||
| Resolution | 4um(2.4um~4um optional) | ||
| illuminant | RGB(can be customized) | ||
| Efficiency | 3FOV/s | ||
| Software system | Operating system | Ubuntu | |
| Computer configuration | Host | CPU: Inteli7, RAM: DDR4-128G, GPU: GTX1660-6GB SSD:250G, HDD: 2T | |
| Monitor | 22"LED | ||
| Operating system | Ubuntu | ||
| Detection performance | PCB Thickness | 1~5mm | |
| Component Height | 20mm upper, 30mm lower (special height can be customized) | ||
| Driving equipment | Linear motor + grating ruler | ||
| Moving speed | Max:600mm/s | ||
| PCB transport rail | 900+20mm (from the ground to the fixture surface) | ||
| Parameters | PCB size | Max:350mmx300mm | Max:370mmx350mm |
| Power | AC220V/50Hz/2000W | ||
| Overall size | W1120xD980xH1600 mm | ||
| Weight | ≈800KG | ||
| Air pressure requirements | ≥0.5Mpa | ||
| Environmental requirements | Temperature: 5~40℃, relative humidity 25%~80% (no frost) | ||
| Upstream and downstream equipment communication | Standard SMEMA interface/data communication with die bonding machine | ||
The Mento AOI machine is ideal for use in a range of PCB inspection system scenarios. These include applications in the manufacturing of electronic components, PCB assembly, and other circuit board applications. The machine is also well-suited to testing PCBs in the automotive, aerospace, and medical industries, among others.
The Mento AOI machine is an advanced PCB testing method that utilizes 3D inspection technology to deliver unparalleled accuracy. With an inspection accuracy of ±5μm and the ability to handle PCBs with a thickness of 0.2mm - 6mm and a size of up to 500mm X 500mm, this machine is a versatile and reliable choice for all your PCB testing needs.
The Mento AOI machine is easy to use, and its advanced 3D inspection technology ensures that you can identify even the smallest defects in your PCBs quickly and accurately. Whether you are working on a large-scale project or a small-scale manufacturing run, this machine is the perfect choice for all your PCB inspection needs.
In conclusion, the Mento AOI machine is an excellent choice for anyone looking for a reliable and accurate PCB inspection system. With its advanced 3D inspection technology, versatile design, and easy-to-use interface, this machine is ideal for use in a wide range of applications. So why wait? Order your Mento AOI machine today and experience the difference for yourself!
Our AOI PCB Machine product comes with comprehensive technical support and services to ensure that your machine runs smoothly and efficiently. Our team of experienced technicians and engineers are available to provide remote and on-site assistance, as well as training and consultation services.
Our technical support includes troubleshooting assistance, software updates, and machine maintenance recommendations. We also offer customized service plans to fit the specific needs of your business. In addition, our team can provide installation and calibration services to ensure that your machine is set up correctly and accurately.
We are committed to providing the highest level of support and service for our AOI PCB Machine product, and are dedicated to helping our customers achieve their production goals.
Product Packaging:
The AOI PCB Machine will be packaged securely to ensure its safe delivery to your location. The machine will be protected with foam and placed in a sturdy cardboard box. The box will be labeled with product information and handling instructions to help ensure safe and proper transportation.
Shipping:
Our company offers several shipping options and we will work with you to select the best method based on your location and delivery timeline. Once your order has been processed and the AOI PCB Machine is ready to ship, we will provide you with a tracking number so you can monitor its journey to your doorstep.
A: The brand name of the PCB machine is Mento.
Q: Where is the PCB machine manufactured?
A: The PCB machine is manufactured in Dongguan, China.
Q: Is the PCB machine certified?
A: Yes, the PCB machine is certified with ISO9001/ISO14001.
Q: What is the minimum order quantity for the PCB machine?
A: The minimum order quantity for the PCB machine is 1.
Q: What is the price of the PCB machine?
A: The price of the PCB machine is negotiable.
Q: What is the delivery time for the PCB machine?
A: The delivery time for the PCB machine is 3week.
Q: What are the payment terms for the PCB machine?
A: The payment terms for the PCB machine are online.
Q: What is the supply ability of the PCB machine?
A: The supply ability of the PCB machine is 1000/month.
