Dongguan MENTO Intelligent Technology Co., Ltd. info@mento-mv.com 00-86-13410031559
Product Details
Place of Origin: DONGGUAN
Brand Name: MENTO
Certification: FCC.ROHS,CCC
Model Number: K2005DT
Payment & Shipping Terms
Minimum Order Quantity: 3
Packaging Details: 1200mm*1500mm*1800mm
Delivery Time: 20 work days
Payment Terms: L/C, T/T
Supply Ability: 10pcs+20 work days
Product Type: |
Automatic Optical Inspection Equipment |
Inspection Method: |
Automatic |
Resolution: |
Up To 5μm |
Operating System: |
Windows |
Defect Classification: |
Automated Classification And Sorting |
Optical System: |
High-resolution Camera |
Data Management: |
Real-time Data Analysis And Storage |
Software: |
Advanced Image Processing Software |
Field Of View: |
Up To 300mm X 300mm |
Product Type: |
Automatic Optical Inspection Equipment |
Inspection Method: |
Automatic |
Resolution: |
Up To 5μm |
Operating System: |
Windows |
Defect Classification: |
Automated Classification And Sorting |
Optical System: |
High-resolution Camera |
Data Management: |
Real-time Data Analysis And Storage |
Software: |
Advanced Image Processing Software |
Field Of View: |
Up To 300mm X 300mm |

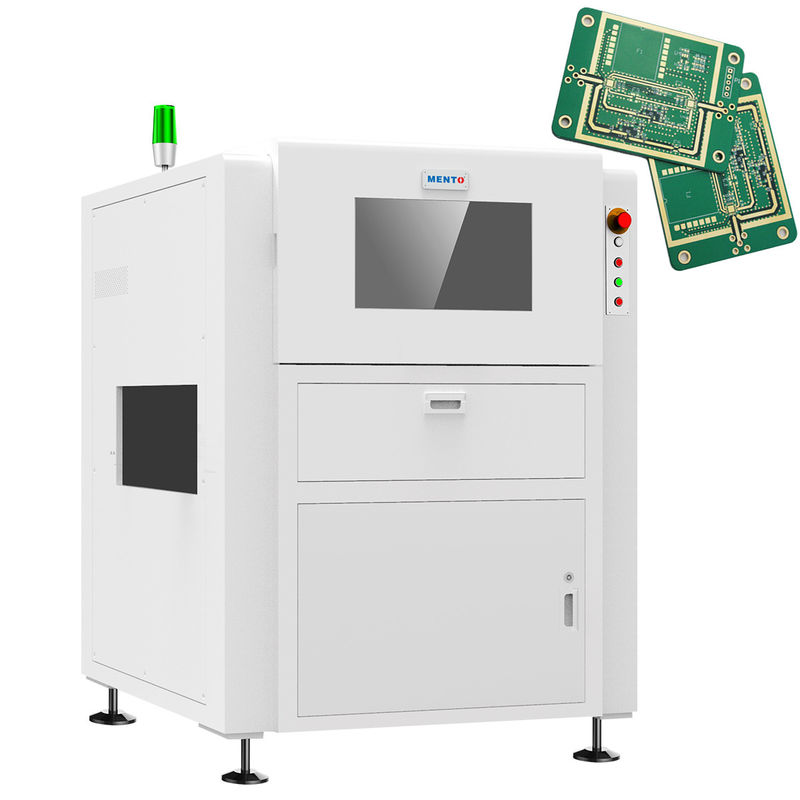

| 2D Automated Optical Inspection Online dual track | ||
| Model | K2005DT | |
| Testing Capability | Test items | CHIP component body, CHIP component solder joints, characters, DIP solder joints |
| Minimum component | CHIP:01005 Pitch:0.3mm | |
| Detection Method | Algorithm Parameter Debugging, Machine Learning | |
| Optical System | Camera | 5MP high speed color industrial camera |
| Telecentric Lens | 0.345X/0.22X/0.17X | |
| Resolution | 10um/15um/20um | |
| FOV | 24x20mm/36x30mm/48x40mm | |
| Detection Speed | 3FOV/s | |
| Software System | Operating System | Windows10 |
| Mechanical Properties | PCB thickness | 0.3~10mm(Warp≤5mm) |
| Component Height | Upper 30mm, lower 84mm(special height can be customized) | |
| Driving device | Servomotor+Ball Screw+Linear Guideway | |
| Moving speed | Max.600mm/s | |
| Positioning accuracy | ≤8um(after calibration) | |
| PCB transport guide | PCB rail transportation height:900+20mm(from ground to PCB rail transportation surface) | |
|
PCB maximum size: 600mmxW300mm (dual rail, double PCB) 600mmxW580mm (single rail, single PCB) |
||
| Minimum distance between PCBs:≤90mm | ||
| Parameters | Curing method | AC220V/50Hz/2000W |
| Detection screen | W1000mmxD1380mmxH1600mm(without foot 100±20mm) | |
| Accuracy | 1100KG | |
| Re-measurement Accuracy | ≥0.5MPa | |
| Wafer Ring Size | Temperature:5~40℃, relative humidity 25%~80%(no frost) | |
| Number of wafers handledsimultaneously | Standard SMEMA interface | |
Product testing capabilities(Online Dual-Track)
1.Misplacement 2. Missing Component 3. Polarity Reversal 4. Non-Wetting 5. Solder Hole 6. Collinear Anomaly 7. Poor soldering 8. Pin Warpage
9. Insufficient Soldering 10. Short Circuit 11. Offset 12.DIP Component Missing 13.DIP pins unextended......
MES data docking function and powerful SPC system
1. Real-time statistics of the top10 alarm components
2. Enables setting an alarm count to automatically halt upstream equipment.
3. Export the entire board image of each PCB in real time for subsequent traceability
4. Indigenously developed MES interface supports standard and customized formats.
Labor-saving mode
Through data transmission and other methods, one person can view the AOI alarm data of multiple lines, thereby realizing a man-saving mode.
